4.5Disassembly and Assembly Procedure
176

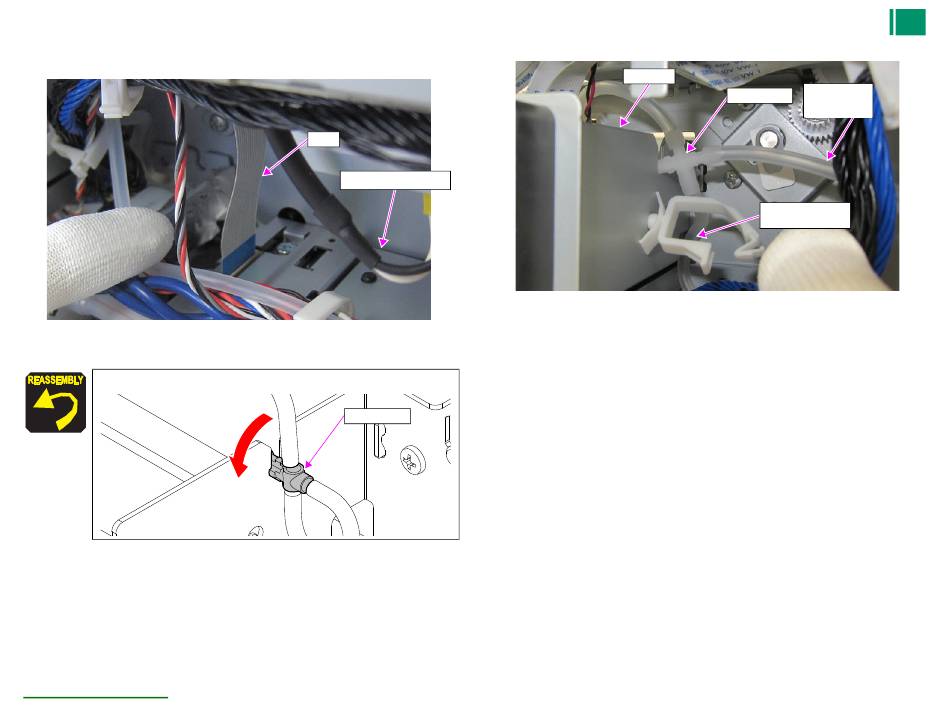

18. Disconnect the FFC from the Left Ink Cartridge Holder.
Frame
Tube of the
Supply pipe
Decompression
Pump Unit
FFC
Left Ink Cartridge Holder
Tube of the Left Ink
Cartridge Holder
Figure 4-139. Releasing the tube
Figure 4-138. Releasing the cable (3)
19. Remove the supply pipe from the frame.
Tilt the supply pipe at a 45 degree angle, and insert it into the frame.
Supply pipe
20. Remove the tubes of the Left Ink Cartridge Holder and Decompression Pump Unit.
