4.5.9.3 Roll Motor

1. Remove the Top Cover. (P.97)
2. Remove the Rear Cover. (P.99)
3. Remove the Upper Cover. (P.100)
4. Remove the Trimmed Waste Paper Box.
5. Remove the Left IC Holder Cover.
6. Remove the Right IC Holder Cover.
7. Remove the Front Cover. (P.100)
8. Remove the Rear Frame. (P.101)
9. Remove the Left Frame. (P.102)
10. Remove the Right Frame. (P.102)
11. Remove the Maintenance Cartridge Cover.
12. Remove the Self Sealing Valve.
13. Remove the Print Head. (P.120)
14. Remove the Left Heater Duct / Right Heater Duct.
15. Remove the Cutter Unit. (P.163)
16. Remove the Heater Unit. (P.192)
17. Remove the Rear Cover Open Sensor.
18. Remove the Capping Unit. (P.182)
19. Remove the AID Unit. (P.113)
20. Remove the U guide. (P.148)
21. Remove the Ink Tube Joint. (P.174)
22. Remove the Roll Unit. (P.130)
23. Remove the Slack Sensor Unit.
24. Release the Left Ink Tube from the two clamps.
("4.5.7.6 Left Ink Tube" Step8
25. Disconnect the cables and FFCs to the following connectors of the Main Board.
(4.6 Connector Position "Main Board
CN100 CN118
CN101 CN200
CN110 CN204
DX100 Service Manual
(P.98)
(P.98)
(P.99)
(P.103)
(P.116)
(P.189)
(P.170)
(P.167)
(p186))
(p205)")
CN401 CN503
CN501 CN504
CN502
4.5Disassembly and Assembly Procedure
26. Release the PF Motor / APG motor cable (CN204) from the four clamps and wire
saddle.
27. Release the cable of the Rear Cover Open Sensor from the two clamps and wire saddle.
28. Disconnect the sensor cable (CN118) from the relay connector, and release it from the
wire saddle.
Cable of the Rear
Cover Open Sensor
Clamps
Clamp
PF Motor /APG motor
cable (CN204)

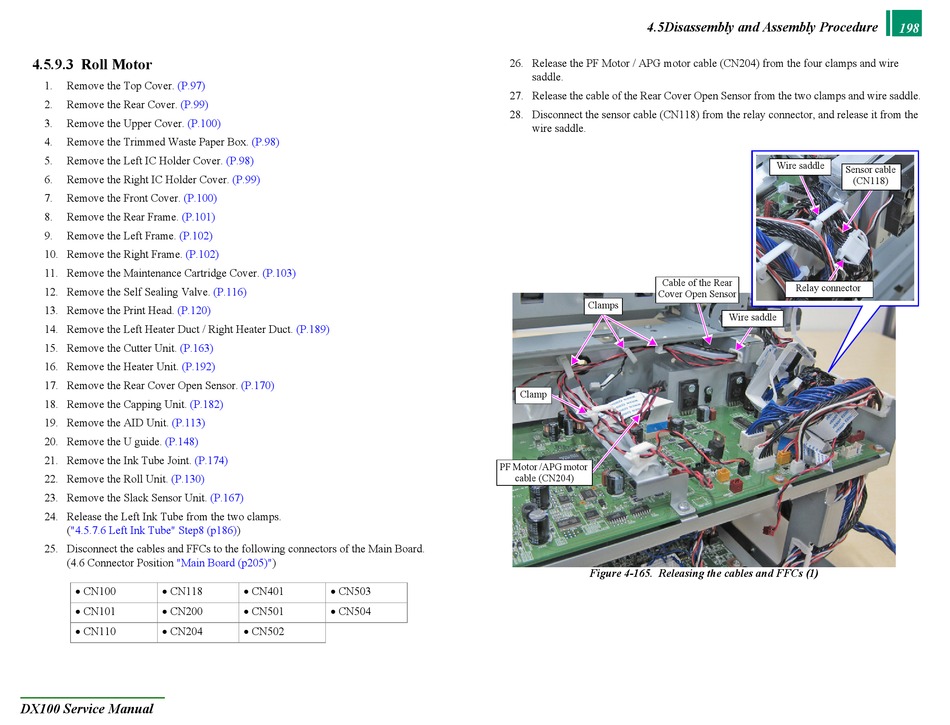

Figure 4-165. Releasing the cables and FFCs (1)
198
Wire saddle
Sensor cable
(CN118)
Relay connector
Wire saddle
