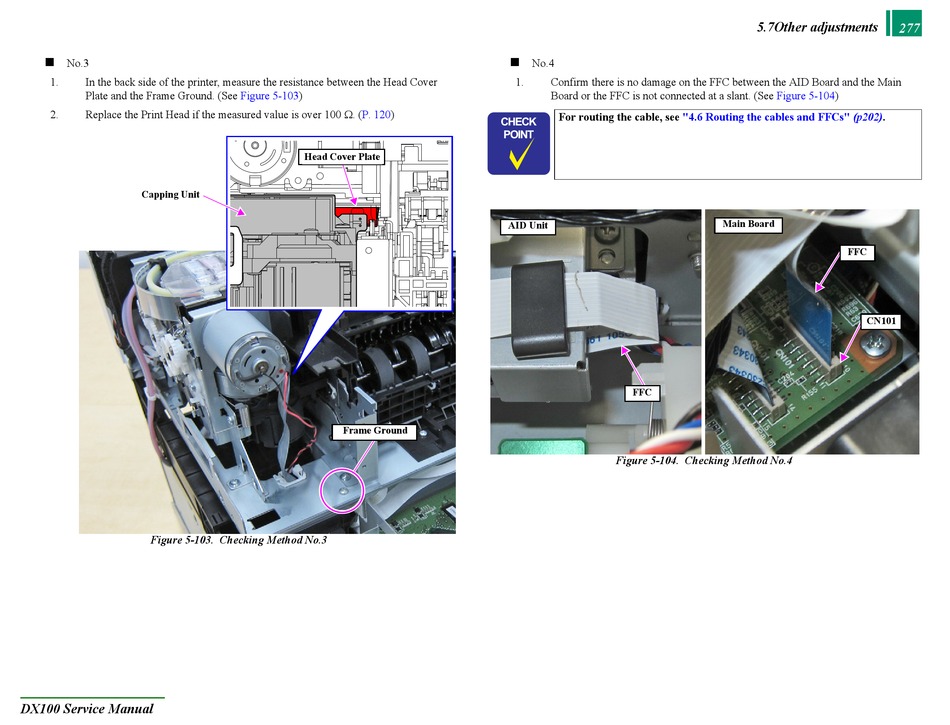

FujiFilm Frontier-S DX100 Service Manual page 277


No.3
1. In the back side of the printer, measure the resistance between the Head Cover
Plate and the Frame Ground. (See
Replace the Print Head if the measured value is over 100 .
2.
Capping Unit
Figure 5-103. Checking Method No.3
DX100 Service Manual
Figure 5-103)
(P. 120)
Head Cover Plate
Frame Ground

No.4
1. Confirm there is no damage on the FFC between the AID Board and the Main
Board or the FFC is not connected at a slant. (See
For routing the cable, see
C H E C K
P O I N T
AID Unit
FFC
Figure 5-104. Checking Method No.4
5.7Other adjustments
Figure 5-104)
"4.6 Routing the cables and FFCs" (p202).
Main Board
FFC
277
CN101
