8.
Remove the cable from the relay connector.
9.
Release the cable of the Right Heater Duct from the clamp.
10. Remove the Left Heater Duct and the Right Heater Duct.
Insert the Left Heater Duct/Right Heater Duct to the grooves of the cushion
rubbers.
Left Heater Duct/
Right Heater Duct
DX100 Service Manual
Cable
Relay
connector
Groove of the
cushion rubber
4.5Disassembly and Assembly Procedure
Left Heater Duct

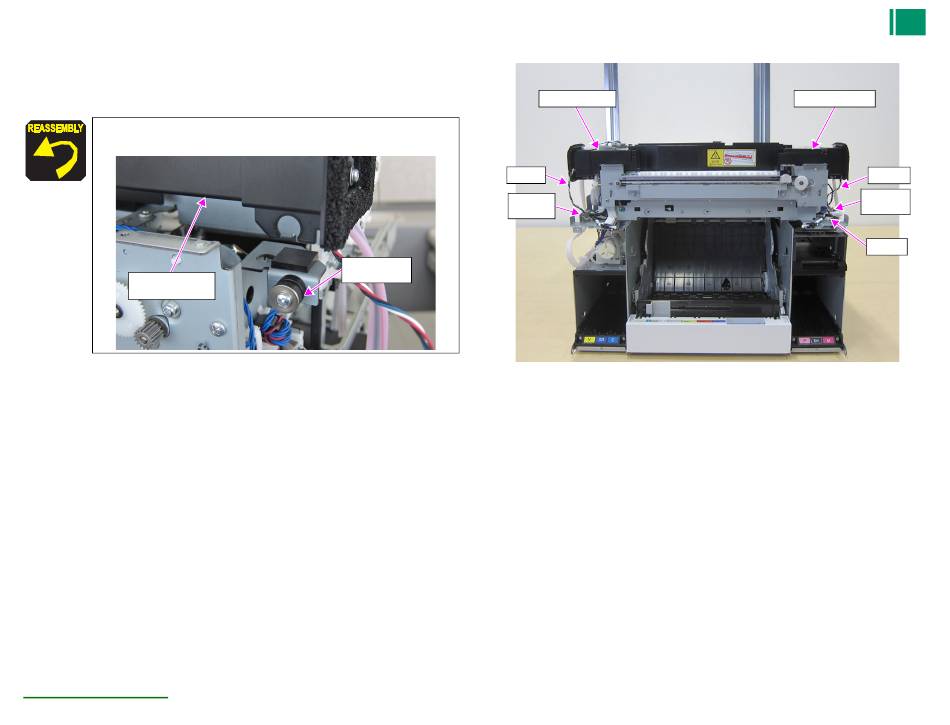

Figure 4-157. Removing the Left Heater Duct/Right Heater Duct
190
Right Heater Duct
Cable
Relay
connector
Clamp
