9. Align and set the DOCUMENT HOLDING JIG with the top edge on the document
glass.
Top edge
Document glass

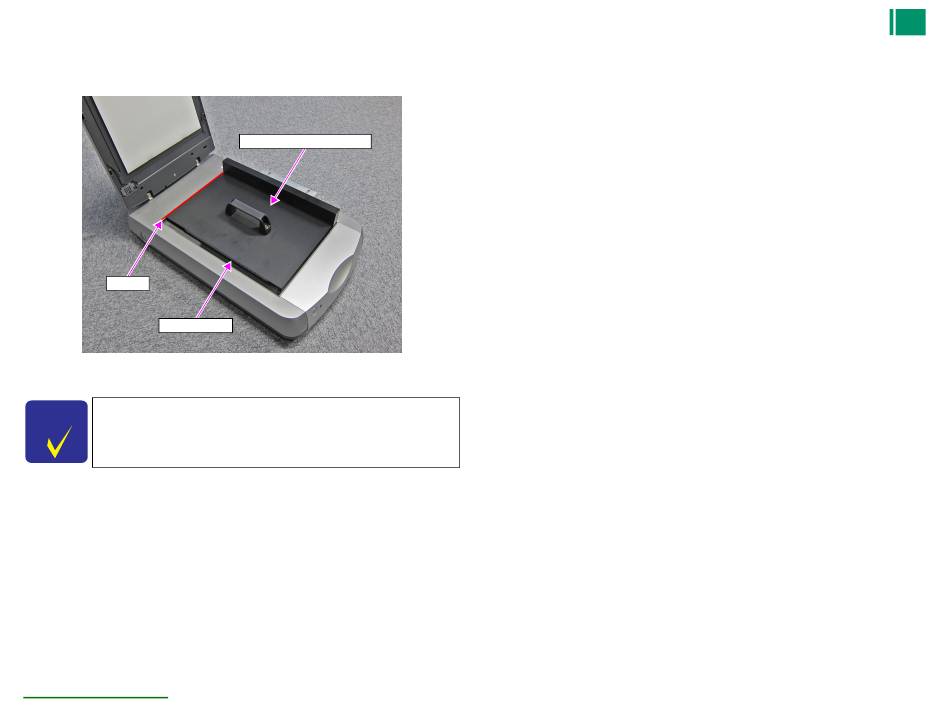

Figure 5-86. Setting the Printed Pattern (3)
10. Click [Scan] to scan the adjustment pattern. (See
If there is something wrong with the scanner reading of the printed pattern,
C H E C K
perform "Troubleshooting for the scanner reading errors" (p241)
P O I N T
11. The correction value will be written.
DX100 Service Manual
DOCUMENT HOLDING JIG
Figure 5-37)
