4.2Parts Diagram
83
Paper Feed Mechanism 2
Upper Platen Unit (p158)
Cutter Unit (p163)
Upper Paper Guide Unit (p155)
EJ Frame Unit (p153)
Lower Platen Unit (p159)
Driven Release Holder (p154)

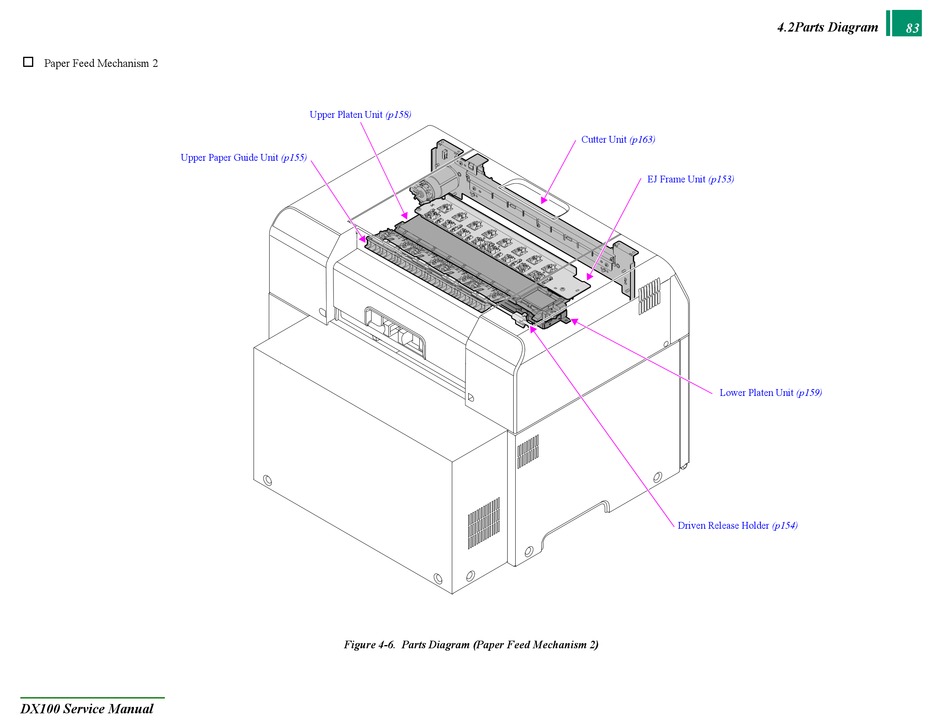

Figure 4-6. Parts Diagram (Paper Feed Mechanism 2)
DX100 Service Manual
