4.5.9 Motor

4.5.9.1 PF Motor

1. Remove the Top Cover. (P.97)
2. Remove the Upper Cover. (P.100)
3. Remove the Rear Frame. (P.101)
4. Remove the Left Frame. (P.102)
5. Remove the PF Timing Belt.
("4.5.5.17 SMAP Roller" Step15
6. Disconnect the cable of the PF Motor from the Relay connector.
7. Cut the cable tie, release the PF Motor cable.
8. Remove the FFC from the reinforcement plate.
9. Disconnect the cable of the APG Motor from the relay connector.
10. Release the cable from the wire saddle.
11. Remove the two screws, and remove the reinforcement plate.
A) Silver M3x6 Bind machine screw : two pieces
Relay connector
A
Wire saddle

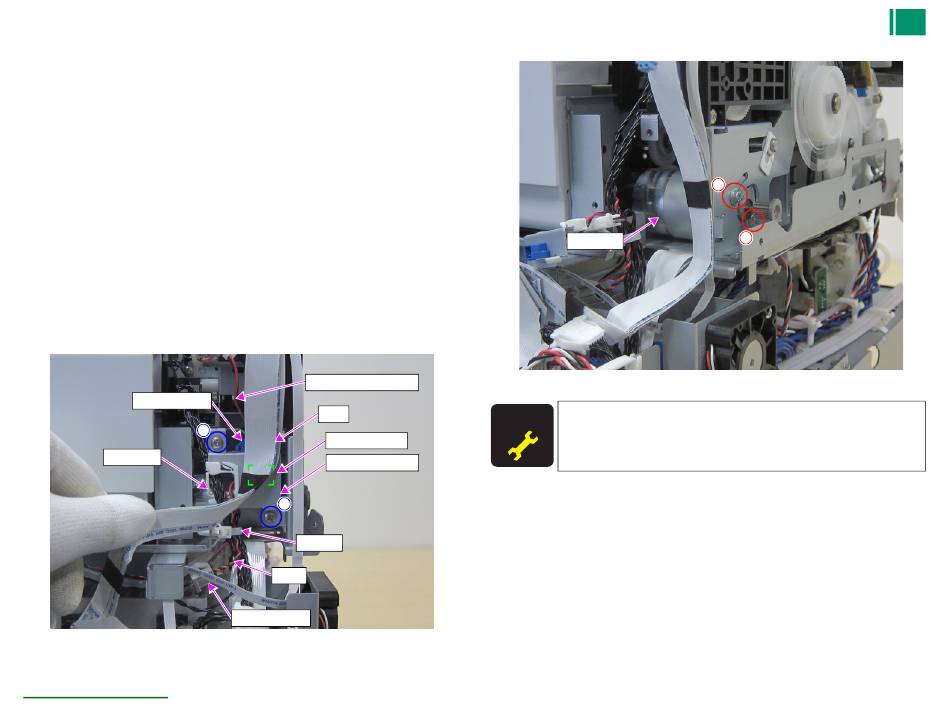

Figure 4-161. Removing the Reinforcement plate
12. Remove the two screws, and remove the PF Motor.
B) Silver M3x4 machine screw : two pieces
DX100 Service Manual
(p156))
Cable of the APG Motor
FFC
Double-sided tape
Reinforcement plate
A
Cable tie
Cable
Relay connector
4.5Disassembly and Assembly Procedure
PF Motor
Figure 4-162. Removing the PF Motor
Carry out the adjustments referring to
A D J U S T M E N T
Order by Repaired Part" (p210)
R E Q U I R E D
replaced.
B
B
"5.1.2 Adjustment Items and the
when the PF Motor is removed or
