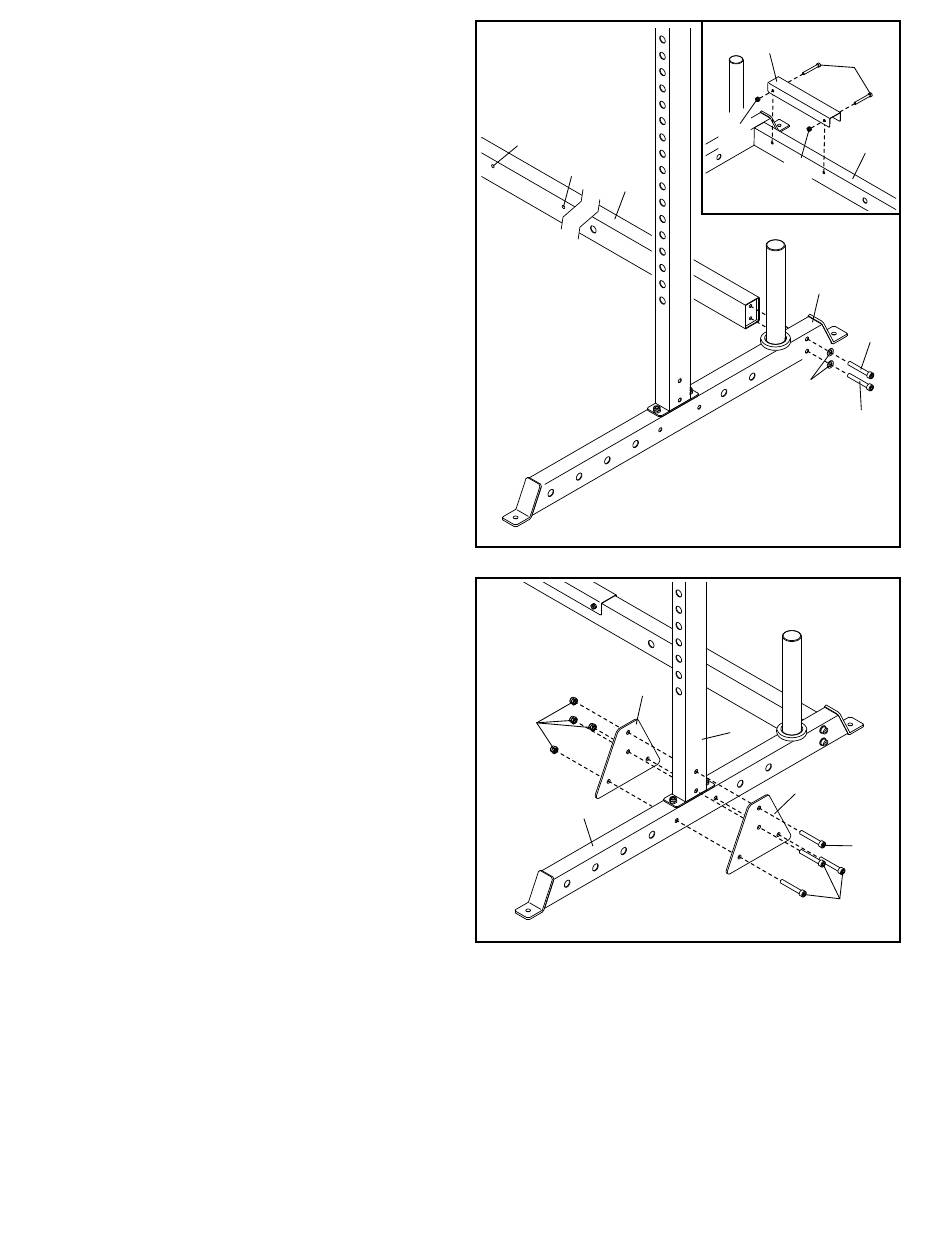

13. Orient the Crossbar (37) so that the small holes
(C) are in the position shown.
Attach the Crossbar (37) to one of the Bases
(47) with two M10 x 70mm Screws (51) and
two M10 Washers (22); do not tighten the
Screws yet.
Attach the Crossbar (37) to the other Base
(not shown) in the same way.
Then, tighten all four M10 x 70mm Screws (51)
(only two are shown).
See the inset drawing. Attach the Crossbar
Cover (39) to the Crossbar (37) with two
M8 x 65mm Bolts (52) and two M8 Locknuts (54).
14. Attach two Support Plates (45) to the left
Base (47) and to the left Upright (36) with
four M10 x 70mm Bolts (51) and four M10
Locknuts (15); start all four Locknuts, and
then tighten them.
Attach the other two Support Plates (not
shown) to the right Base (not shown) and
to the right Upright (not shown) in the
same way.
See step 12. Tighten the M10 Locknuts (15).
