Pro-Form Carbon Strength Olympic System User Manual page 14

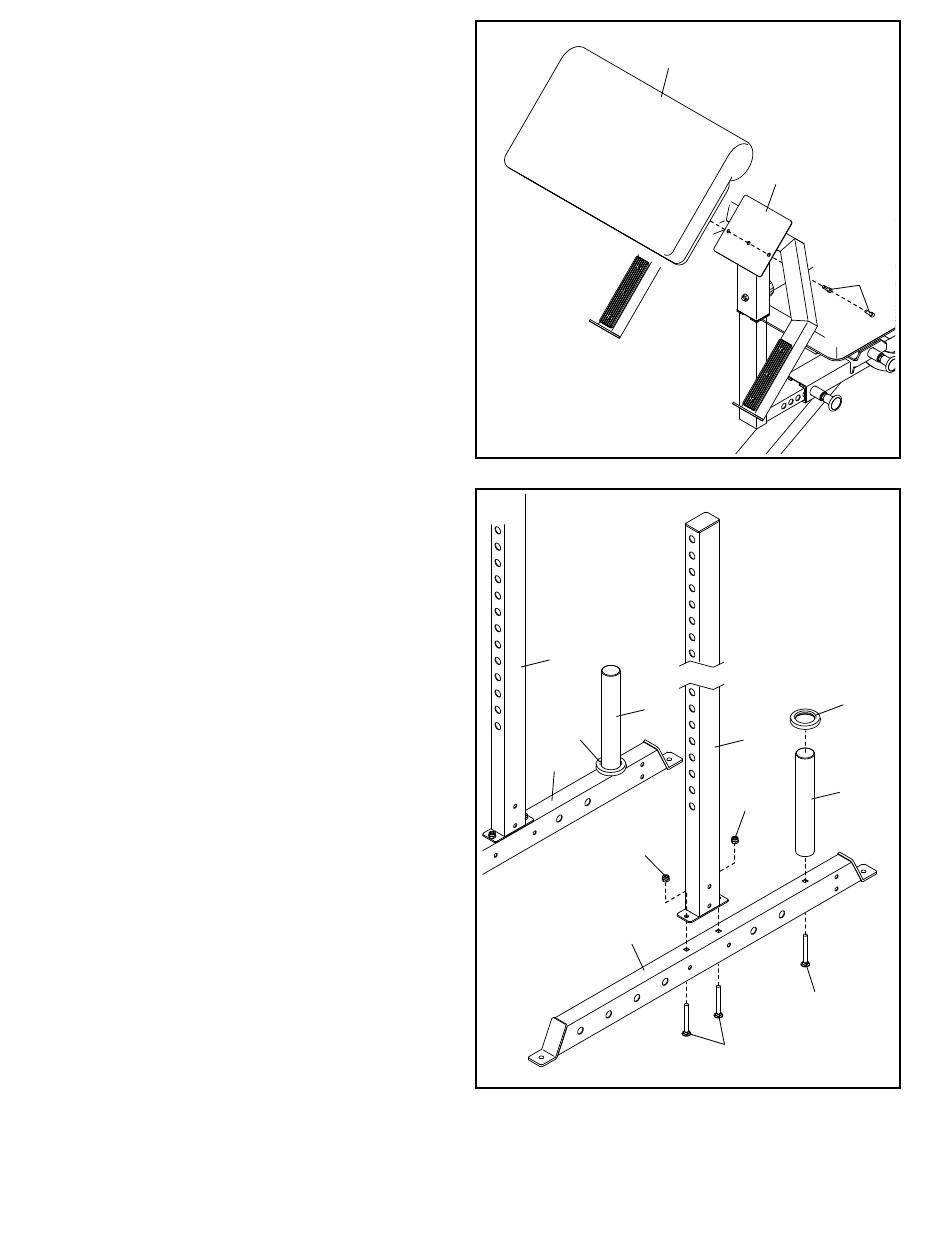

11. Attach the Curl Pad (34) to the Curl Frame (30)
with two M6 x 25mm Screws (20).
12. Insert two M10 x 90mm Carriage Bolts (50)
and an M10 x 95mm Carriage Bolt (53) upward
through a Base (47) as shown.
Next, set an Upright (36) onto the M10 x 90mm
Carriage Bolts (50), and attach the Upright with
two M10 Locknuts (15); do not tighten the
Locknuts yet.
Next, tighten a Weight Tube (46) onto the
M10 x 95mm Carriage Bolt (53).
Then, slide a Weight Bumper (38) onto the
Weight Tube (46).
Repeat this step with the other Base (47),
Upright (36), Weight Tube (46), and Weight
Bumper (38).
