Wet-Bulb Wick Check (Esl, Esx Models Only) - ESPEC Platinous Series User Manual

Operation
FIGURE 6.35.
Use a specimen cable that can withstand test conditions. Refer to the following table for possible cable
types.
Vinyl Cable
Styrene-butadiene cabtyre cable
Electron crosslinked heat-proof plastic cable
Glass-braid silicon shielded cable
When not using the cable port, fit a silicone rubber plug in it from the inside and outside.

6.1.3 Wet-Bulb Wick Check (ESL, ESX models only)

The wet-bulb wick (included) must be installed to run humidity tests. If already in place, check whether it is
wet or dry before starting. If dry, change it.
Note:
Bacteria adhering to the wet-bulb wick can proliferate during tests and block water
supply. Wash hands with soap and water before handling the wick.
Procedure:
1. Remove the wet-bulb wick from its package.
2. Slide the wet-bulb wick over the wet-bulb temperature sensor. It is easier to slide the wick over the
sensor by folding it in half.
H

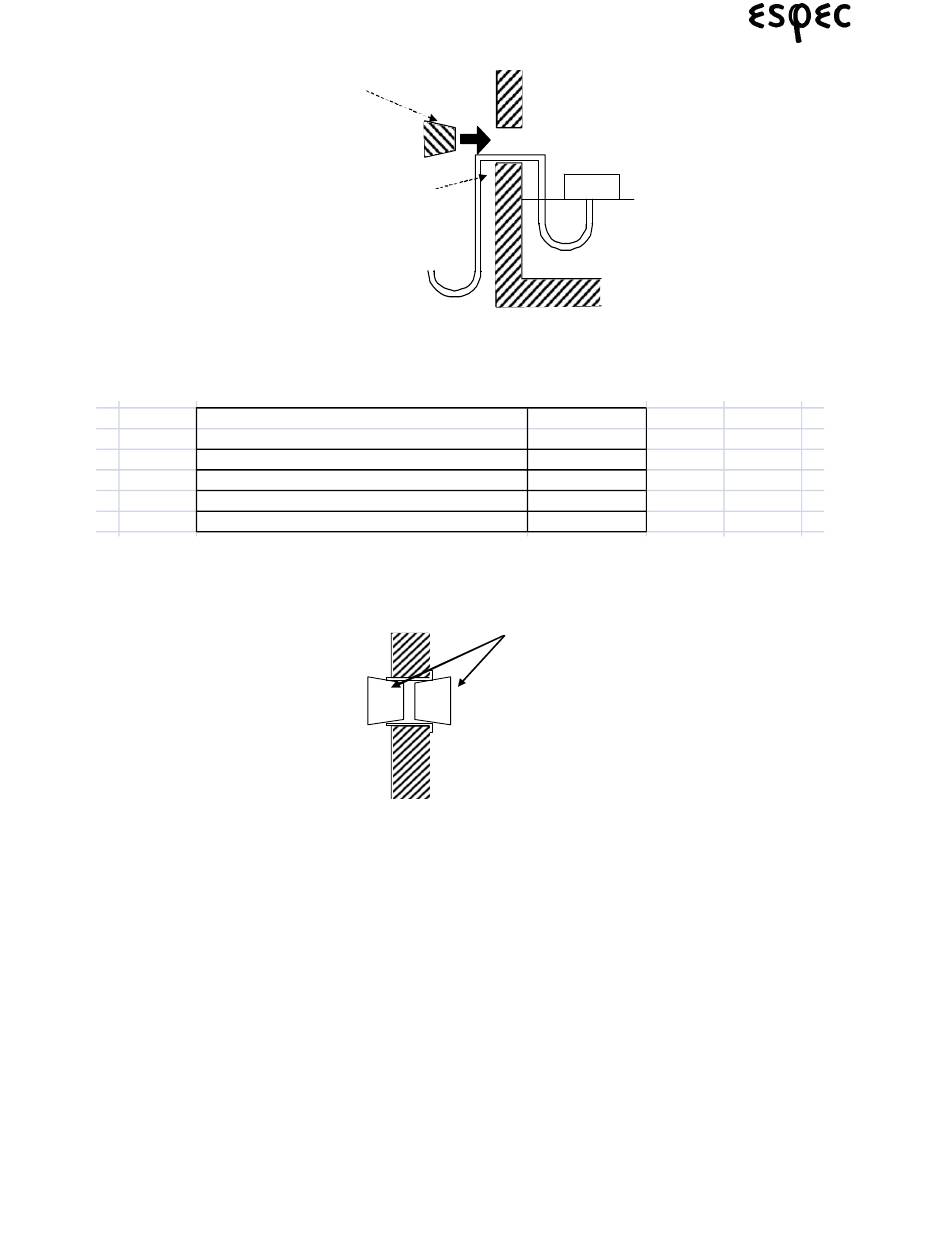

OW TO FEED SPECIMEN CABLES THROUGH THE CABLE PORT
Rubber plug
Specimen cable
To specimen power
supply control terminal
and power supply
C
TABLE 6.12. ABLE TYPE AND WITHSTAND TEMPERATURE
Cable Type
W
HEN NOT USING CABLE PORTS
FIGURE 6.36.
Rubber plugs
Platinous User's Manual
Specimen
Withstand
Temperature
55°C
70°C
100°C
200°C
