Names and Functions of Parts

4.1 Chamber

4.1.1 Front and Right

Chamber Door (11)
Fluorescent Lamp
Cover (10)
Viewing Window (9)
Condenser Grill (8)
(1) Instrumentation Panel
(2) Electrical Compartment Door
(3) Water Circuit Compartment Door
(4) Door Handle
(5) Option Panel
(6) Drain Port (Right Side)
22
C
HAMBER FRONT AND RIGHT

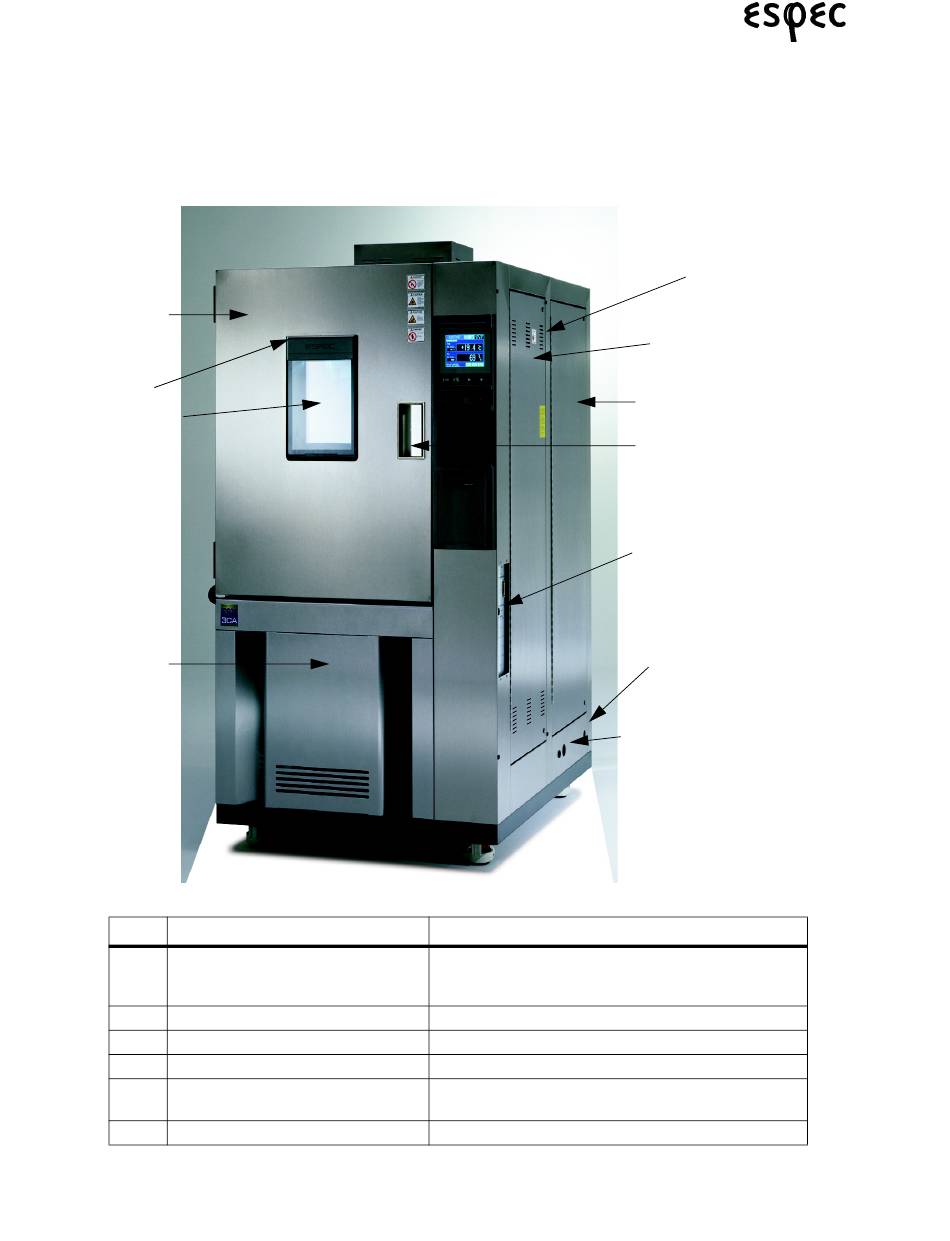

FIGURE 4.10.
C
TABLE 4.5. HAMBER FRONT AND RIGHT SIDE PARTS
Name
User-interface panel for controlling the temperature (&
humidity) controller. It contains the overheat protector,
chamber lamp switch and controls for options.
Open to access the electric parts compartment.
Open to access the water circuit compartment.
Use to open/close the chamber door.
For connection of specimen power, alarm, and time sig-
nals.
Connect a drain hose here.
Platinous User's Manual
Instrument Panel (1)
Electrical Compartment
Door (2)
Water Circuit
Compartment Door (3)
Door Handle (4)
Option Panel (5)
Drain Port (6)
Humidity Water Port (7)
Function/Use
