Names and Functions of Parts

4.2 Instrumentation Panel

(1) Operating Panel
(2) Hour Meter
(3) Overheat Protector
(4) Recorder Panel
(5) Operation Lamp
I
NSTRUMENTATION PANEL

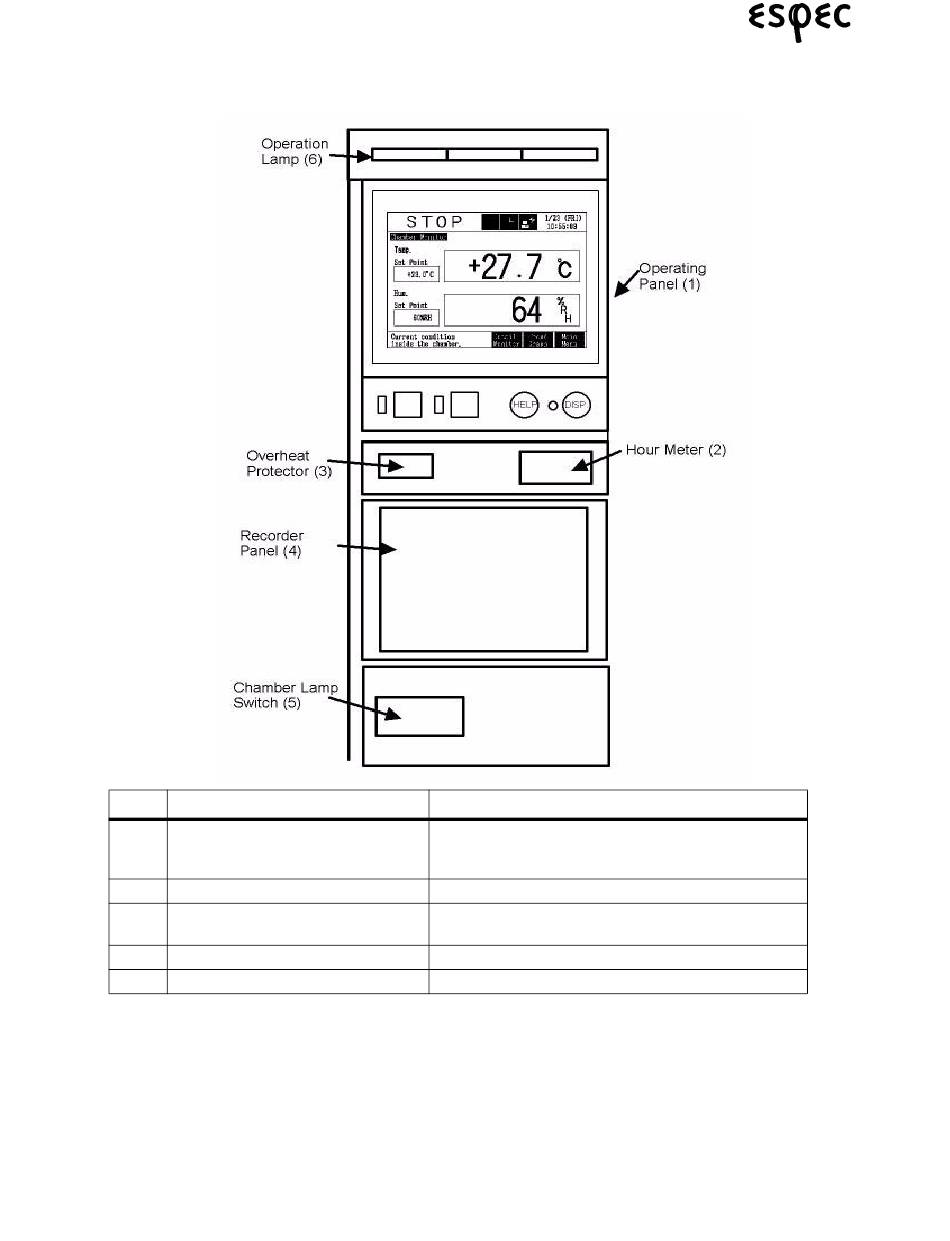

FIGURE 4.15.
Name
User interface unit. Use to set temperature/humidity,
start/stop the chamber, etc. See
30.
Counts up chamber running time.
Stops the chamber to prevent damage to specimens.
See "Overheat Protector" on page 59.
Where optional strip chart recorder is mounted.
Lit while the chamber is running.
Platinous User's Manual
Function/Use
Figure 4.16 on page
29
