Names and Functions of Parts

4.1.2 Left, Rear, and Top

Power Cable Port (1)
Main Power Breaker
(3)
Refrigeration
Ventilation ()
(1) Power Cable Port (Top Side)
(2) Cable Port
(3) Main Power Breaker
(4) Air Circulators
(5) Water Supply Port
(6) Water Drain Port
(7) Refrigeration Ventilation
24
L

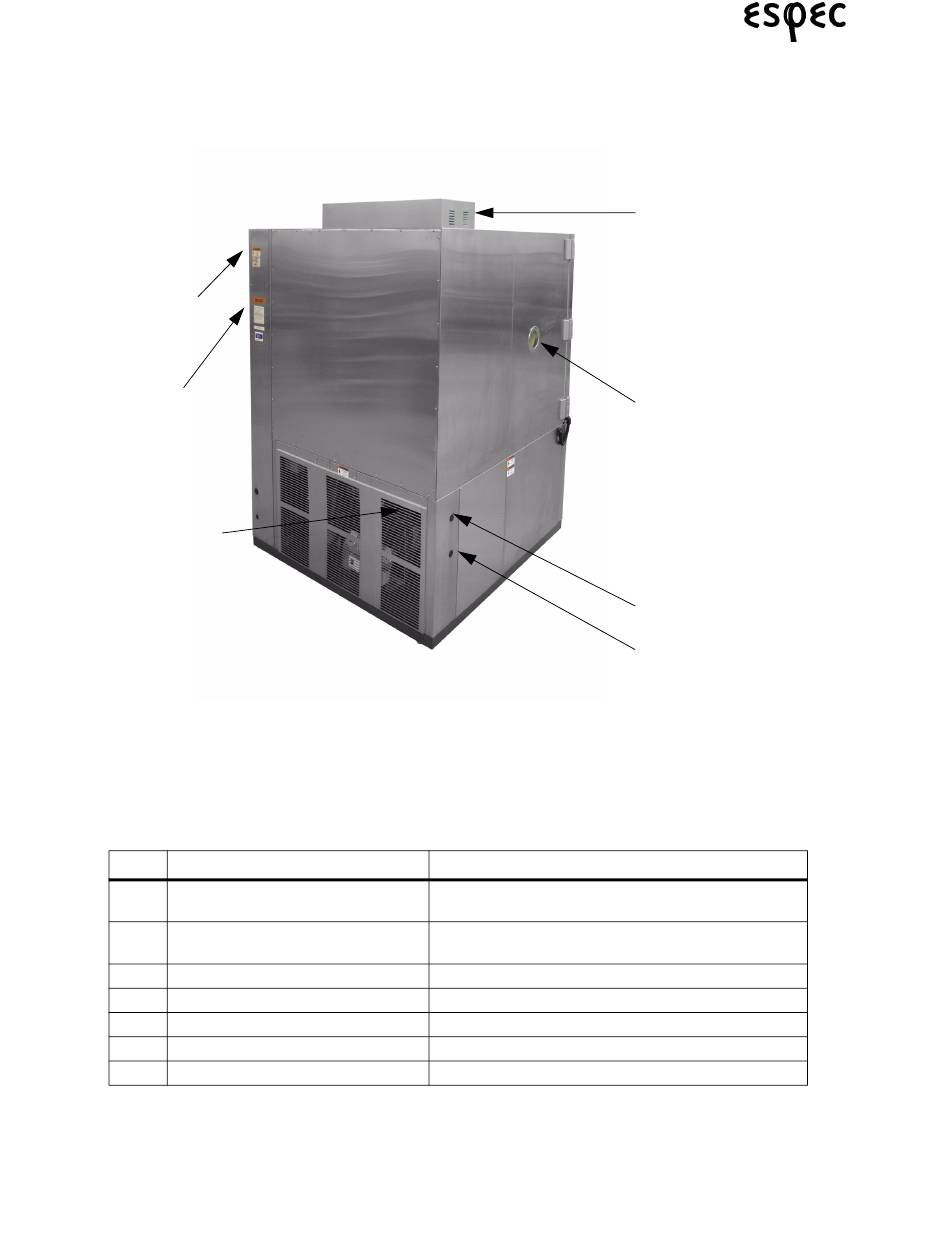

FIGURE 4.11.
C
TABLE 4.6. HAMBER LEFT
Name
Feed the power cable into main power breaker (3)
through here.
Feed cables (i.e. to charge specimens) into the test
area through here.
Turns primary power supply to the chamber ON/OFF.
Air circulator motors.
For refrigeration cooling water (optional).
For refrigeration cooling water (optional).
For air circulation (do not block).
Platinous User's Manual
,
EFT REAR AND TOP
Air Circulators (4)
Cable Port (2)
Water Drain Port (6)
Water Supply Port (5)
, ,
REAR AND TOP SIDE PARTS
Function/Use
