ESPEC G-068C Abbreviated Operation Manual

Product name/Option
Bench-top type temperature and humidity
chamber / L stand with water tank
This option operation manual has priority over standard operation manual when found in disagreement.

1. Application

-Facilitates moving and fixing of the chamber.
-Can be used to store peripheral equipment and accessories.
-Additional water supply tank is equipped in the stand to supply to be able to long term continuous
operating. Water from this option is supplied to the chamber water supply tank by using the optional
"Continuous water supply(connection port for water without pressure-reducing valve)"
The tank of the stand is not automatically water supplied.
This option requires following other option.
Continuous water supply (No.40093010020xx connection port for water
without pressure-reducing valve)

2. Water tank

Accessory
Location
Water supply method

3. Installation of stand

For stand installation and chamber anchoring, see the Stand installation manual and anchor the
chamber properly.

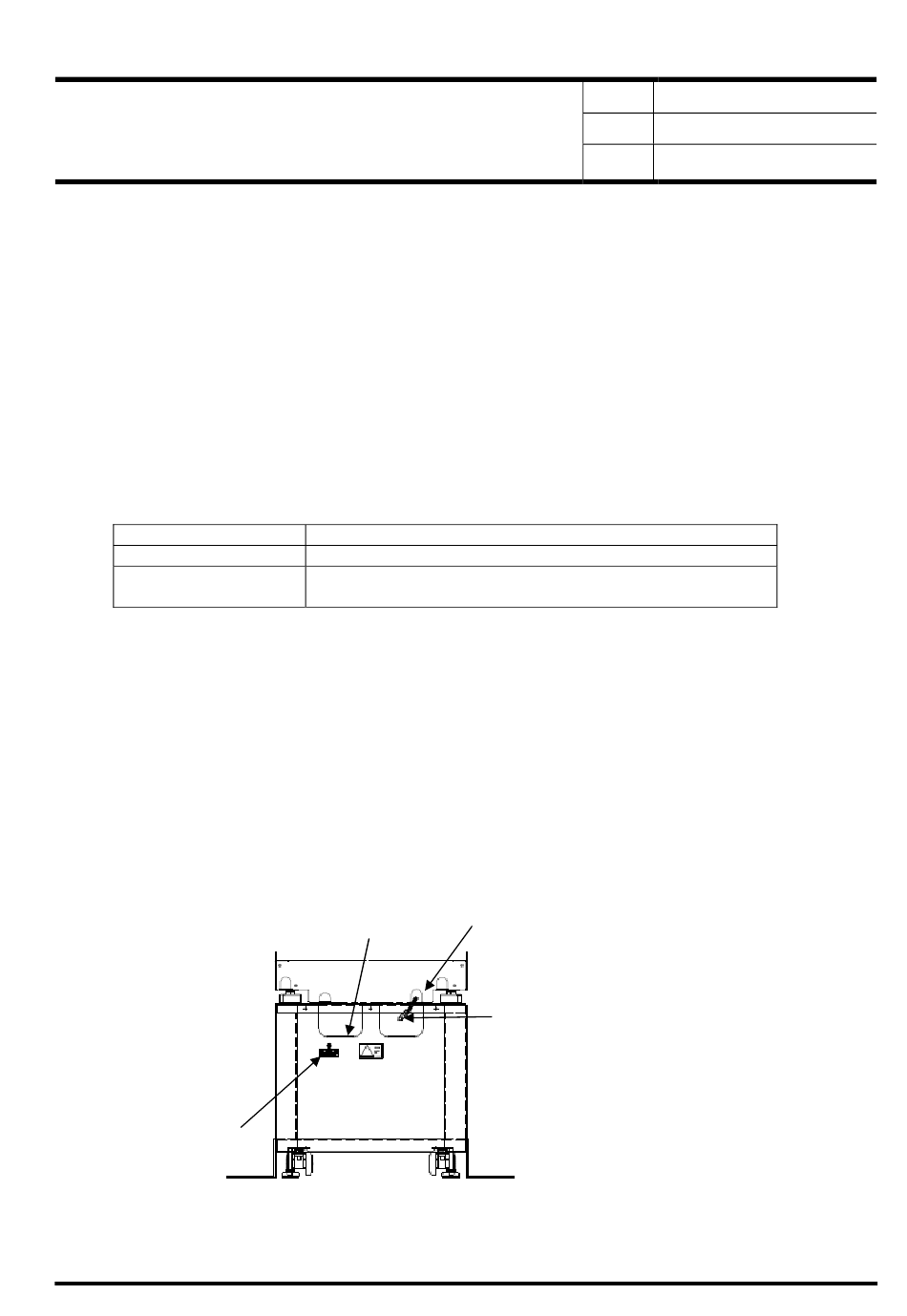

4. Connection to the stand

Connect the tube equipped to the chamber and the joint of L stand(1)(with water tank) by using
crescent clamps. (Cut the tube equipped to the chamber properly to match to the joint.)
Be careful not to bend or twist the tube for connecting the tube and the joint.
Connect the power cable(with connector) equipped to the chamber and the power cable(with
connector for L stand (with water tank). Connect the ground wire of power cable equipped to the
chamber to the terminal block.
Terminal
block for
ground wire
G-068C
Operation Manual/Option
Tank capacity: 18L x1
Inside the stand
Water supply from water supply port (with cap) at the tank
top (Drawer rails are equipped for water tank)
Power cable (with
connector)
No.
PREP.
REV.
Tube for
chamber
Joint (1)
1
4009304008720
2014.03.10
2017.09.01
ESPEC CORP.
