ESPEC SU-222,242 Operation Manual

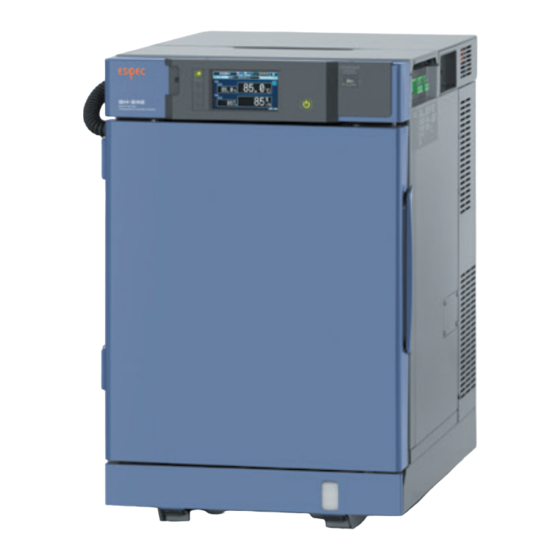

Bench-top type temperature (and humidity) chamber / dew tray
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Operation manual / Option
Product name / Option
Bench-top type temperature (and humidity)
chamber / Dew tray
This option operation manual has priority over standard operation manual when found in disagreement.

1. Application

In the event that water leaks from the equipment, this pan-shaped dew tray will prevent the
spread of leaked water on the site. Place the chamber on this tray..

2. Equipment

Dew Tray For Chamber/Dew tray for stand
Material: 18-8 Cr-Ni stainless steel
SU/SH-222,242
SU/SH-262,242-5
SU/SH-642,662
* Dew tray is installed at site.
Installation charge is not included. Contact the purchased distributer or ESPEC CORP.

3. Accessories

Chamber
bracket
Stand
bracket (for C,L stand)
Stand
bracket (for H stand)
Screw M5
Screw M4
Silicon sealant
Aluminum tape
Accessory of stand (option) fixing bolt (M8): x4
Model
W560 x D850 x H40
W560 x D940 x H40
W660 x D1085 x H40
Name
For chamber
fastening
fastening
fastening
No.
PREP
REV
For chamber
C stand, L stand, H stand common
4
8
1
4009304005810
09.10.2013
01.10.2014
For stand
（C,H,L stand）
W690 x D970 x H40
W790 x D1105 x H40
For stand
2
2
4
2
3m
ESPEC CORP.
