5.6 Drainage

CAUTION
!
Drainage is needed to remove water from the humidifying tray and dew formed in the test area.
Procedure:
1. Loosen the two screws shown in the figure below and open the water circuit compartment door on the
right side of the chamber.
2. Feed the drain hose to the outside through the drain port on the chamber right side. Gravity drainage is
used, so keep the drain hose sloped downward and run it into a pit.
44
If collecting drainage in container, check water level to make sure it
does not overflow.
W

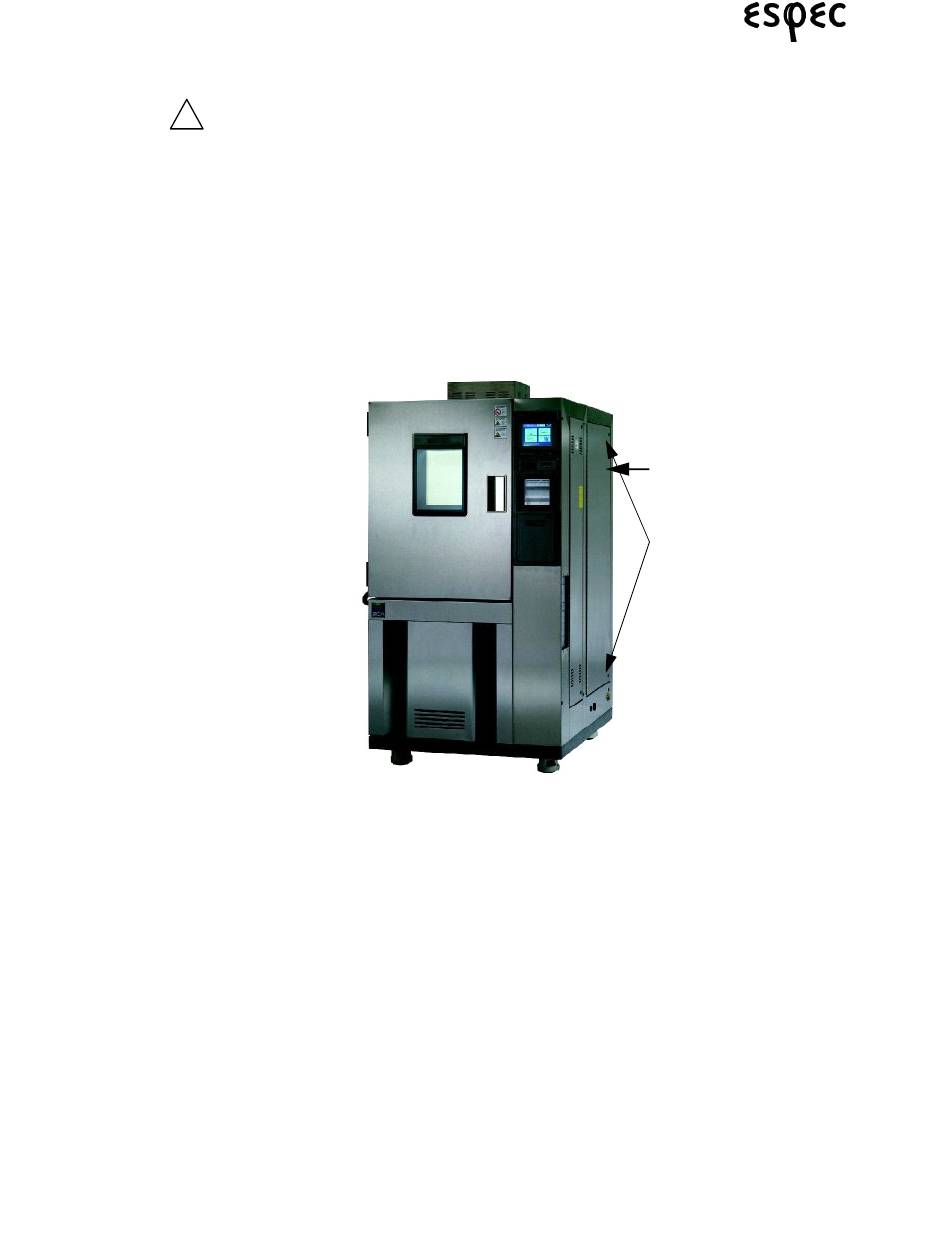

ATER CIRCUIT COMPARTMENT DOOR
FIGURE 5.24.
Platinous User's Manual
Water Circuit
Compartment Door
Screws
