Precautions in Usage

2.3 Disposing of the Chamber

DANGER
!
from the hinges. Use a hand winch or other means to support the door.
You will need nippers, a slotted head screwdriver, and 7/16" socket box wrench to detach the door.
Procedure:
1. Cut the cable between the door and chamber. Use the nippers.
2. Pry off the hinge cover on the door side part of the hinge. Use the slotted head screwdriver.
3. Open the door slightly and prop it up with the hand winch. Then remove the bolts (4), which lock the
hinge to the door. Use the box wrench.
4. Detach the door.
12
TRAPPED INSIDE! Before disposing of the chamber, take the door
off its hinges.
The door cannot be opened from the inside, so there is danger of
someone becoming trapped inside.
HEAVY DOOR! Have someone hold the door when detaching it
P

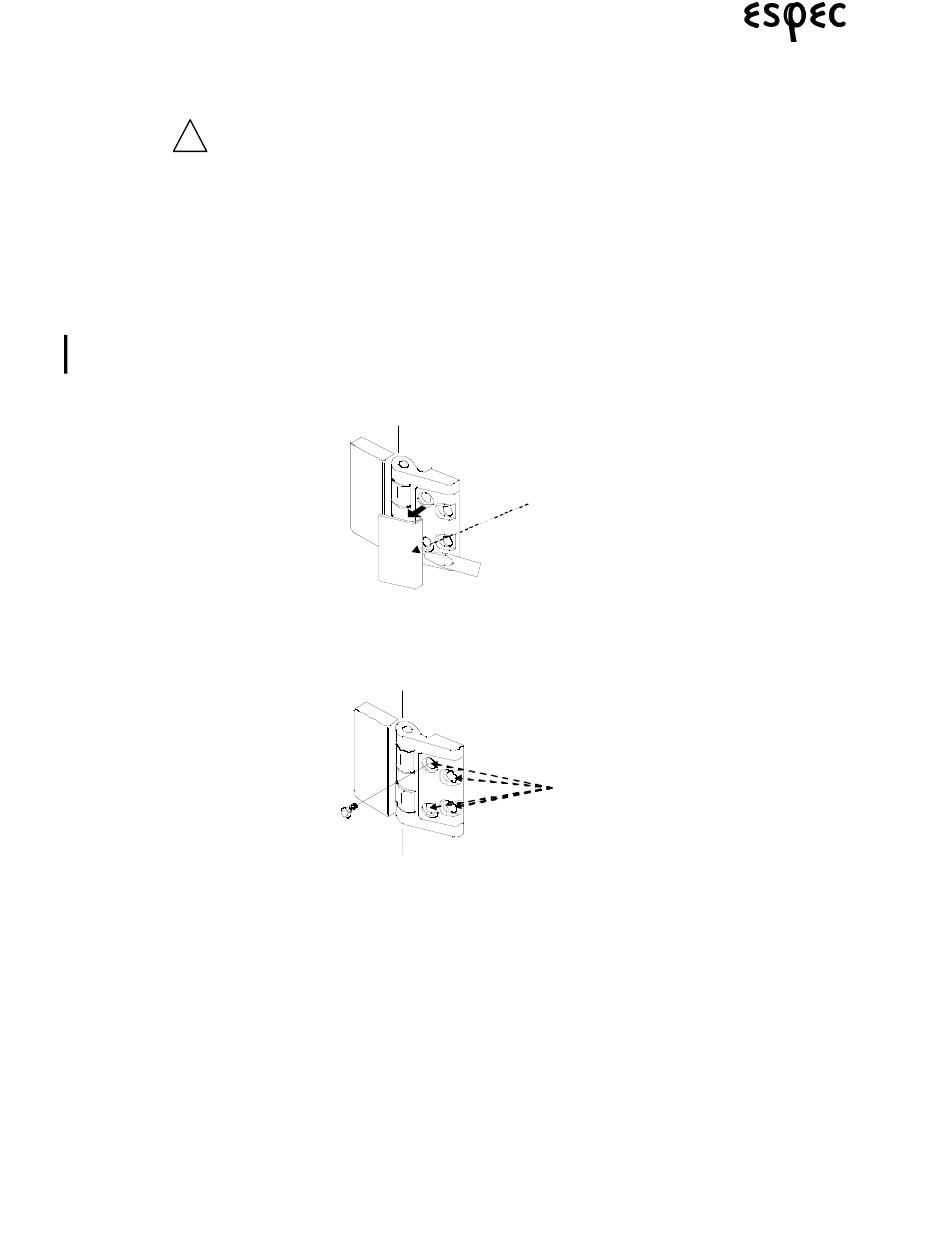

FIGURE 2.3. RYING OFF THE HINGE
H
INGE BOLTS TO REMOVE
FIGURE 2.4.
Platinous User's Manual
Hinge cover
Bolts
