Annex | Accessories and Spare Parts
surfaceCONTROL 2500
A 1.3 Drawings Mounting Adapters
A 1.3.1 X95/Dovetail Mounting Adapter
The X95/dovetail mounting adapter is used to mount the sensor on a quick release plate
with a dovetail profile of size 050/87 or to the profile system X95 of the manufacturer
Linos (Qioptiq).

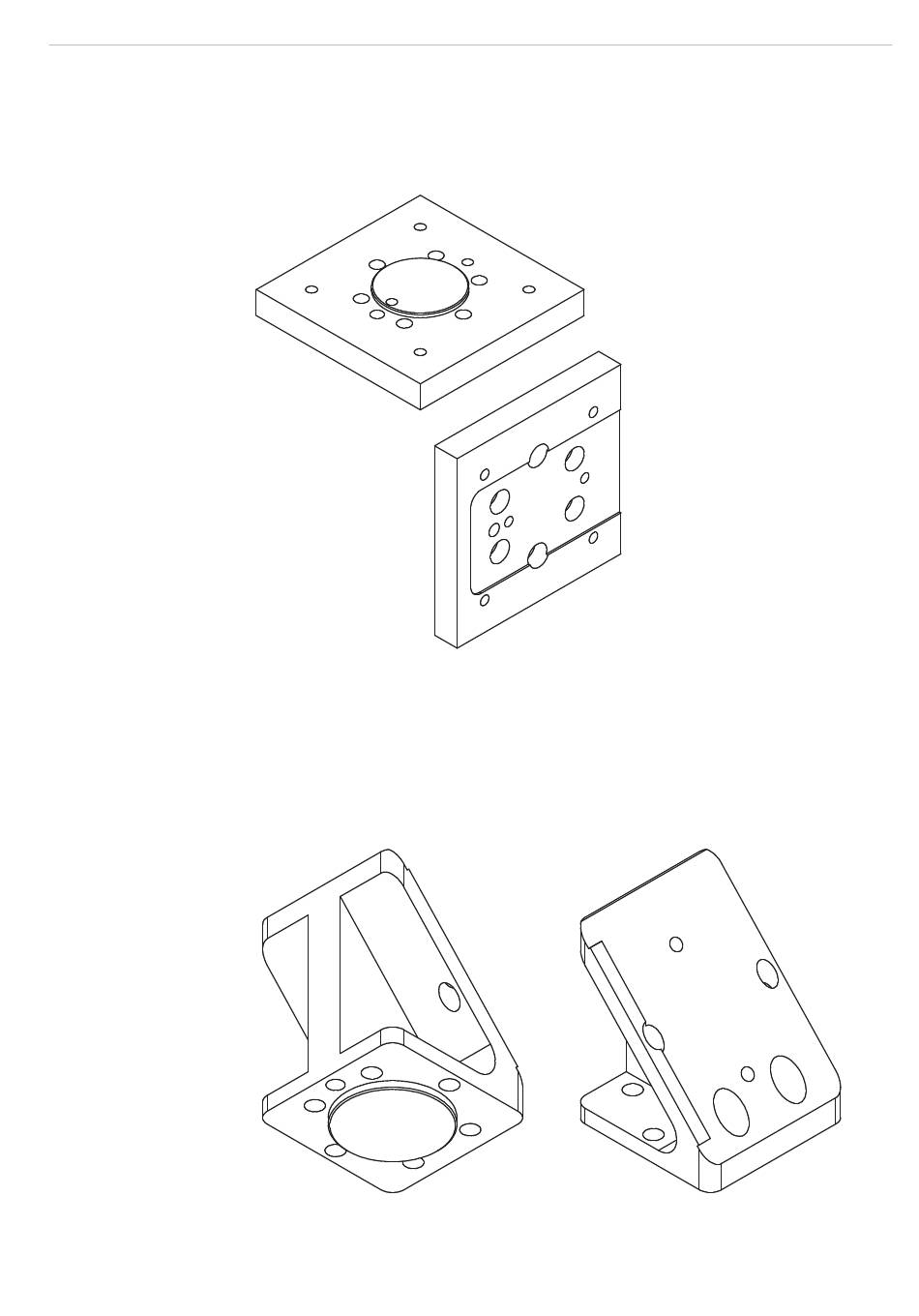

Fig. 17 View of X95/dovetail mounting adapter
The outer dimensions of the adapter are 95 mm x 95 mm x 15 mm.
A 1.3.2 47° Dovetail Mounting Adapter
The 47° dovetail mounting adapter is used to mount the sensor on a quick release plate
with a dovetail profile of size 050/87. The adapter is an adjustment for the operation of
the sensor with a 43° 2-way ball tilt head. The adapter angle of 47° allows to directly align
the sensor perpendicular to the ground.
Fig. 18 View of 47° dovetail mounting
adapter from below (sensor side)
The outer dimensions of the adapter are 60 mm x 60 mm x 76.6 mm.
Fig. 19 View of 47° dovetail mounting
adapter from above (tripod side)
