4.2.15 File operation function

Perform the following steps to enter file operation page:
4. At test status, press SHIFT key, and "SHIFT" at left corner is on.
5. Press FILE key to enter file operation page, and the instrument first displays
currently-used file No., (if no file is loaded, the default setup of file No. 0 displays), as
shown in 4-27.
File can be saved, loaded or erased.
1) SAVE
This operation saves the current setups to appointed file No. Perform the following steps to
save file:
a) Select "SAVE" at file operation page through
b) Press ▲ or ▼ key to select appointed file No. from 0-9. Displayed "Y" means the
file has existed, and it will be covered at the time of saving, and "N" means the file doesn't
exist.
c) Press ENTER key to perform the saving operation, and "WAIT" displays.
d) Press ESC to exit.
2) LOAD
The operation loads setups of appointed file. Perform the following steps to load file.
a) Select "LOAD" at file operation page through
b) Press ▲ or ▼ key to select loading file No. Displayed "Y" means the file has existed,
and it will be loaded, and "N" means the file doesn't exist.
c) Press ENTER key to perform the loading operation, and it automatically exits back to
measurement page after loading completes.
d) Press ESC to exit.

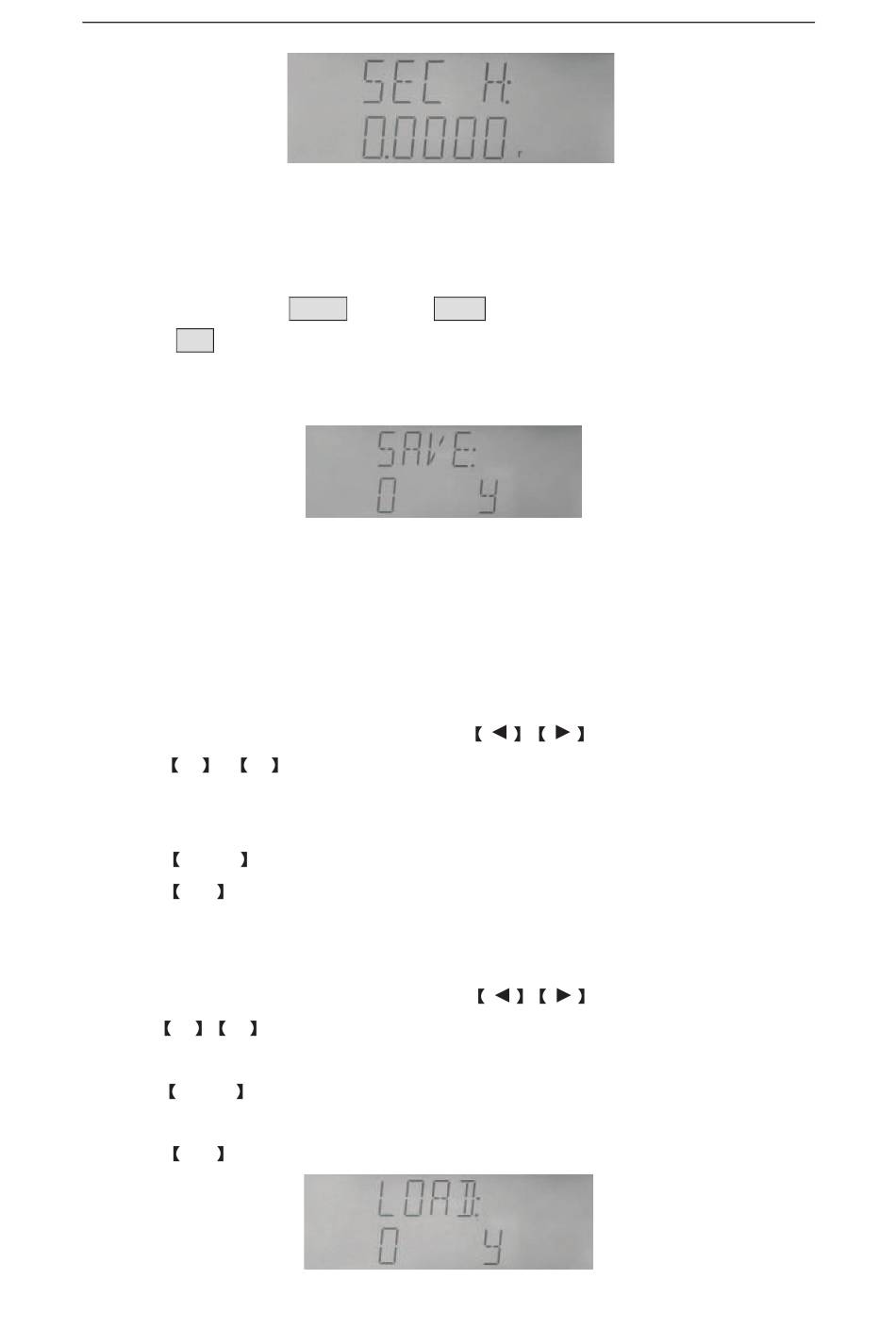

Figure 4-27 File operation page
