Chapter 3 Panel Introductions

3.4 A Tour of Front Panel

1) Brand and Model
The registered brand of our company and model of the instrument are printed.
2) LCD
240×64 dot-matrix Liquid Crystal Display (LCD) displays measurement results, test
conditions, etc.
3) Sorting indicators
It indicates sorting result: NG—not good
4) Power on/off

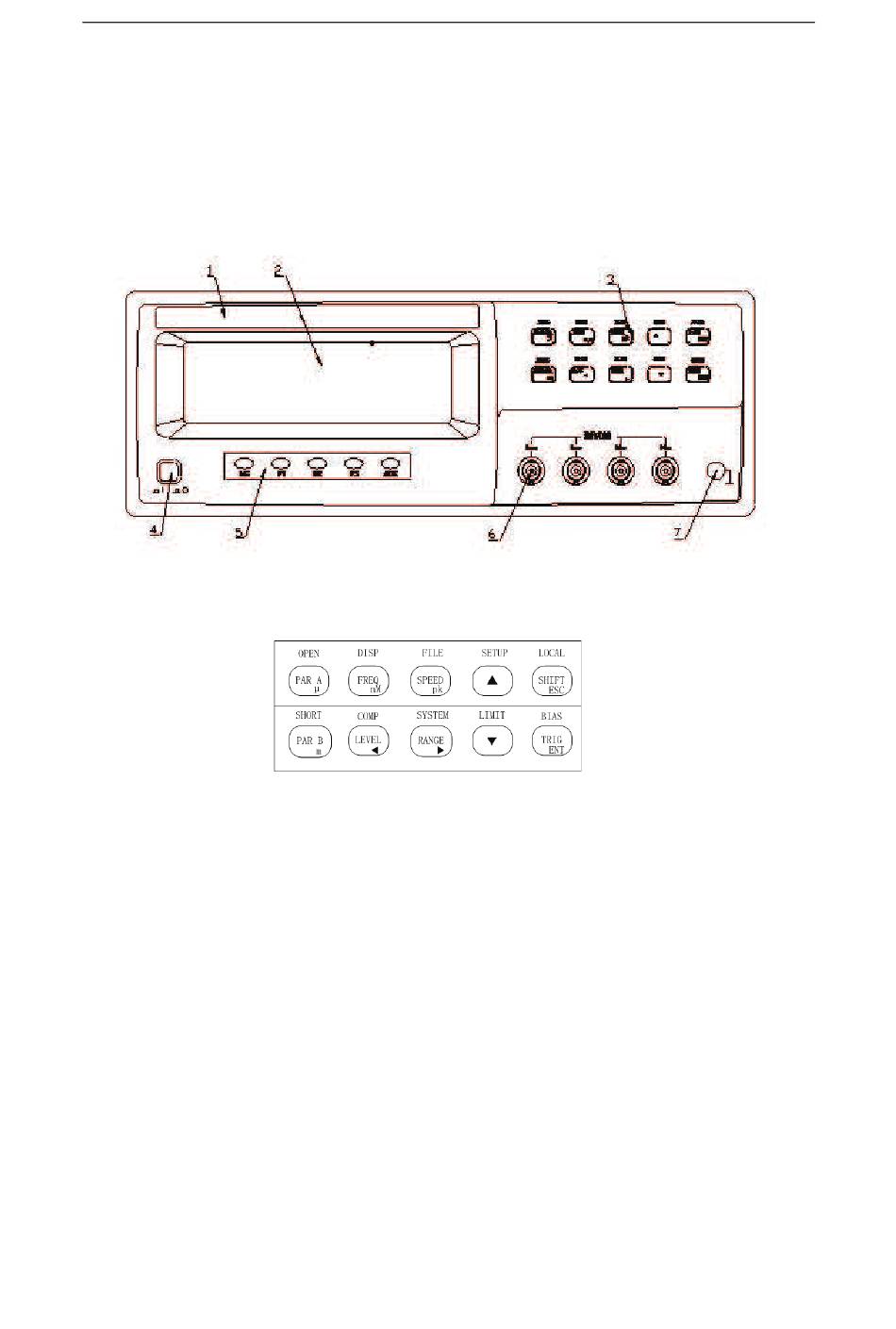

Figure 3-1 Front panel overview
Figure 3-2
Softkeys
P1—pass BIN1
P2—pass BIN2
P3—pass BIN3
AUX—auxiliray bin
14
