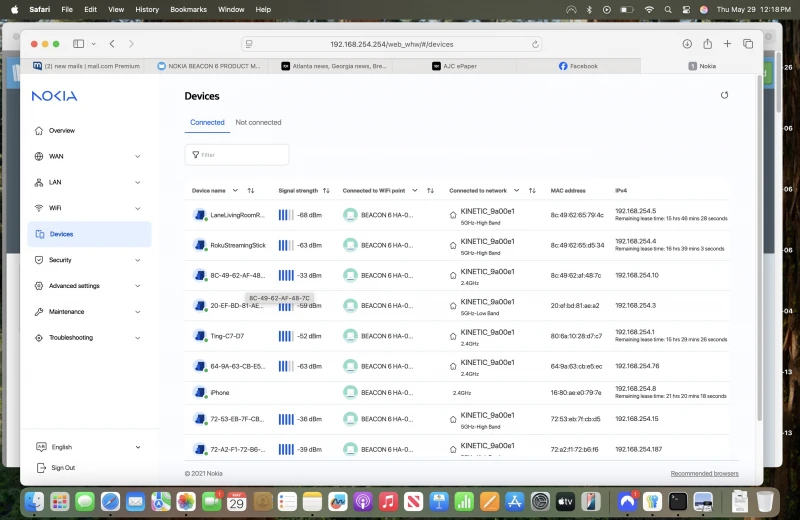

When I display WIFI devices, I see some MAC addresses that I do not recognize as devices that should be attached to the router. Is there a way to block them or force them to disconnect?

2 comments:

Mr. Anderson

May 26, 2025

To block or disconnect unrecognized MAC addresses from your Nokia Beacon 6 router, follow these steps:

1. Enable MAC filtering for the WiFi SSID.
2. Choose or enter the MAC address you want to block.
3. Click Save.
4. To remove a MAC address, select it and click the Delete column.
5. To update the list, click Refresh.

This allows you to control which devices can connect to your network by managing allowed MAC addresses.

This answer is automatically generated

Mike Lane

May 29, 2025

@Mr. Anderson I went to Security, enable MAC filtering and added a MAC address, but it still shows up in the device list as connected even after I click the refresh icon.

Mike Lane

May 29, 2025

I have an HP printer connected to this Nokia router via WIFI. I cannot figure out any way to allow my wifi connected MAC Book to access the printer. It seems that the only interconnection is between the devices and the Internet WAN port. There is no device-to-device connection. Is there a way to allow WIFI devices to access each other through the router? Also, I do not want to allow the printer to be connected to the Internet for security reasons.

1 comments:

Mr. Anderson

May 29, 2025

To enable device-to-device communication between a MacBook and an HP printer connected to a Nokia Beacon 6 router without allowing the printer Internet access, follow these steps:

1. Connect both devices to the same WiFi SSID or LAN network on the Nokia Beacon 6.

2. Disable Internet access for the printer:
- Access the router’s web interface.
- Use MAC filtering: Go to *Security > MAC Filter*.
- Select *MAC Filter Mode: Blocked*.
- Choose the printer’s MAC address and apply the filter for Internet access (WiFi SSID or LAN port, depending on connection type).
- Ensure the filter only blocks Internet, not local network communication.

3. Ensure local communication is allowed:
- Do not enable isolation features like "AP Isolation" or "Client Isolation" on the SSID, as they prevent device-to-device communication.

This setup allows the MacBook to print via the local network while the printer remains blocked from accessing the Internet.

This answer is automatically generated

Dennis Wolfe

April 5, 2025

Can I connect a exterior router to the Ethernet and have Internet

1 comments:

Mr. Anderson

April 5, 2025

Yes, the Nokia Beacon 6 can connect to an external router via Ethernet for Internet access.

This answer is automatically generated

Ed Carocci

March 25, 2025

How many devices does this support

1 comments:

Mr. Anderson

May 14, 2025

The Nokia Beacon 6 (HA-0336G-A) supports up to 3 LAN connections and 1 WAN connection, based on its physical interface capacity. The exact number of wireless devices it supports is not specified in the provided context.

This answer is automatically generated

Summary of Contents for Nokia Beacon 6

Page 1 Nokia WiFi Beacon 6 Product Guide Nokia WiFi Beacon 6 HA-0336G-A WiFi Beacon Nokia WiFi Beacon 6 Product Guide 3FE-xxxxx-AAAA-TCZZA Issue: 01 ...
Page 2 © 2019 Nokia. Contains proprietary/trade secret information which is the property of Nokia and must not be made available to, or copied or used by anyone outside Nokia without its written authorization. Not to be used or disclosed except in accordance with ...
Page 3: Preface
The expansions and optional descriptions of most acronyms and initialisms appear in the Glossary (3FE 47157 AAAA TCZZA). 1.5 Assistance and ordering phone numbers Nokia provides global technical support through regional call centers. Phone numbers for the regional call centers are available at the following URL: http://customer.nokia.com/s/ .
Page 4: Nokia Quality Processes
http://customer.nokia.com/s/ 1 Navigate to and enter your user name and password. If you are a new user and require access to this service, please contact your Nokia sales representative. Select the image from the drop-down menu and click Next.
Page 5: Special Information
Support website. http://customer.nokia.com/s/ Navigate to and enter your user name and password. If you are a new user and require access to this service, please contact your Nokia sales representative. From the Technical Content for drop-down menu, choose the product.
Page 6: Procedures With Options Or Substeps
Preface Nokia WiFi Beacon 6 Product Guide A note provides information that is, or may Note — be, of special interest. 1.9.1 Procedures with options or substeps When there are options in a procedure, they are identified by letters. When there are required substeps in a procedure, they are identified by roman numerals. ...
Page 7: Multiple Pdf Document Search
Nokia WiFi Beacon 6 Product Guide Preface 1.10 Multiple PDF document search You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a common term. Adobe Reader displays the results in a single display panel. The results are grouped by PDF file, and you can expand the entry for each file. ...
Page 8: Table Of Contents
1.9 Special information ......................5 1.9.1 Procedures with options or substeps ................6 1.10 Multiple PDF document search ..................7 2 ANSI BEACON 6 safety guidelines ..............16 2.1 Safety instructions ......................16 2.1.1 Safety instruction boxes in customer documentation ..........16 2.1.2 Safety-related labels ....................
Page 9 5.2.2 Independent TR-069 session with SaaS ..............37 5.2.3 TR-069 authentication using TLS and CA certificates ..........37 5.3 Beacon 6 (HA-0336G-A) software and installation feature support ......37 5.4 Beacon 6 (HA-0336G-A) interfaces and interface capacity .......... 37 5.4.1 Beacon 6 (HA-0336G-A) connections and components ..........38 5.5 Beacon 6 (HA-0336G-A) LEDs ..................
Page 10 Nokia WiFi Beacon 6 Product Guide 8.1.2 Device and connection status ..................55 8.1.3 Network configuration ....................66 8.1.4 Security configuration ....................90 8.1.5 Application configuration ................... 103 8.1.6 Maintenance ......................109 8.1.7 RG troubleshooting counters ..................119 ...
Page 11 Nokia WiFi Beacon 6 Product Guide Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 12 Nokia WiFi Beacon 6 Product Guide List of figures 2 ANSI BEACON safety guidelines............17 Figure 1 Sample safety label...................19 3 ETSI BEACON safety guidelines ............23 Figure 2 Sample safety label...................26 4 ETSI environmental and CRoHS guidelines.......29 ...
Page 13 Nokia WiFi Beacon 6 Product Guide Figure 25 WAN window - Bridge Mode..............80 Figure 26 WAN DHCP window..................82 Figure 27 Wireless 2.4GHz network window.............84 Figure 28 Wireless 5GHz network window..............87 ...
Page 14 Nokia WiFi Beacon 6 Product Guide List of tables 2 ANSI BEACON safety guidelines............17 Table 1 Safety labels....................18 3 ETSI BEACON safety guidelines ............23 Table 2 Safety labels....................24 Table 3 Safety labels....................25 5 ...
Page 15 Nokia WiFi Beacon 6 Product Guide Table 30 Firewall parameters...................99 Table 31 MAC filter parameters................101 Table 32 IP filter parameters..................103 Table 33 URL Filter parameters................105 Table 34 Parental control parameters..............106 ...

Page 16: Ansi Beacon 6 Safety Guidelines
This chapter provides information about the mandatory regulations that govern the installation and operation of devices in the North American or ANSI market. 2.1 Safety instructions This section describes the safety instructions that are provided in the BEACON 6 customer documentation and on the equipment. 2.1.1...
Page 17: Safety-Related Labels
2.1.2 Safety-related labels The Beacon 6 is labeled with specific safety compliance information and instructions that are related to the BEACON 6. Observe the instructions on the safety labels. Table provides the description of the logos in the Beacon 6 label. ...
Page 18: Safety Standards Compliance
Figure 1 Beacon 6 safety label 2.2 Safety standards compliance This section describes the BEACON 6 compliance with North American safety standards. Changes or modifications to this unit not Warning — expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ...
Page 19: Energy-Related Products Standby And Off Modes Compliance
Commission Regulation (EC) No 801/2013. The Beacon 6 (HA-0336G-A) devices qualify as high network availability (HiNA) equipment. Since the main purpose of Beacon 6 (HA-0336G-A) devices is to provide network functionality with HiNA 7 days/24 hours, the modes Off/Standby, Power Management, and Networked Standby are inappropriate. ...
Page 20: Fcc Radiation Exposure Statement
2.2.5 Resistibility requirements compliance The Beacon 6 complies with the requirements of ITU Recommendation K.21 for resistibility of telecommunication equipment installed in customer premises to overvoltage and overcurrents. ...
Page 21: Electrical Safety Guidelines
2.3.1 Power supplies The use of any non-Nokia approved power supplies or power adapters is not supported or endorsed by Nokia. Such use will void any warranty or support contract with Nokia. Such use greatly increases the danger of damage to equipment or property. ...
Page 22: Etsi Beacon 6 Safety Guidelines
This chapter provides information about the mandatory regulations that govern the installation and operation of devices. 3.1 Safety instructions This section describes the safety instructions that are provided in the BEACON 6 customer documentation and on the equipment. 3.1.1 Safety instruction boxes The safety instruction boxes are provided in the BEACON 6 customer documentation.
Page 23: Safety-Related Labels
3.1.2 Safety-related labels The Beacon 6 is labeled with the specific safety instructions and compliance information that is related to a variant of the BEACON 6. Observe the instructions on the safety labels. Table provides the description of logos in the Beacon 6 label. ...
Page 24: Emc, Emi, And Esd Compliance
This section describes the BEACON 6 compliance with the European safety standards. 3.2.1 EMC, EMI, and ESD compliance The Beacon 6 complies with the following EMC, EMI, and ESD requirements: • EN 300-386 V1.6.1: Electromagnetic Compatibility and Radio Spectrum Matters (ERM): Telecommunications Network Equipment; Electromagnetic Compatibility ...
Page 25: Equipment Safety Standard Compliance
Low Voltage (LVD) directive 2014/35/EC 3.2.2 Equipment safety standard compliance The Beacon 6 complies with the requirements of EN60950-1, Safety of Information Technology Equipment for use in a restricted location. 3.2.3 Environmental standard compliance The Beacon 6 complies with the EN 300 019 European environmental standards. ...
Page 26: Acoustic Noise Emission Standard Compliance
Nokia WiFi Beacon 6 Product Guide 3.2.6 Acoustic noise emission standard compliance The Beacon 6 complies with EN 300 753 acoustic noise emission limit and test methods. 3.3 Electrical safety guidelines This section provides the electrical safety guidelines for the Beacon 6. ...
Page 27: Etsi Environmental And Crohs Guidelines
Nokia WiFi Beacon 6 Product Guide ETSI environmental and CRoHS guidelines 4 ETSI environmental and CRoHS guidelines This chapter provides information about the ETSI environmental China Restriction of Hazardous Substances (CRoHS) regulations that govern the installation and operation of devices. This chapter also includes environmental operation parameters of general interest. ...
Page 28: Products Containing Hazardous Substances Above Maximum
ETSI environmental and CRoHS guidelines Nokia WiFi Beacon 6 Product Guide Concentration Limits for Certain Hazardous Substances in Electronic Information Products). Products with this label are recyclable. The label may be found in this documentation or on the product. ...
Page 29: Hazardous Substances Table (Hst)
4.1.3 Hazardous Substances Table (HST) This section describes the compliance of the BEACON 6 to the CRoHS standard when the product and subassemblies contain hazardous substances beyond the MCV value. This information is found in this user documentation where part numbers for the product and subassemblies are listed.
Page 30: Other Environmental Requirements
Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium, hexavalent chromium, and certain flame retardants in electrical and electronic equipment. Nokia products shipped to the EU comply with the EU RoHS Directive. Nokia has implemented a material/substance content management process. The process is described in: Nokia process for ensuring RoHS Compliance (1AA002660031ASZZA).
Page 31: Figure 5 Recycling/Take Back/Disposal Of Product Symbol
European Union. In compliance with legal requirements and contractual agreements, where applicable, Nokia will offer to provide for the collection and treatment of Nokia products bearing the logo shown in Figure at the end of their useful life, or products displaced by Nokia equipment offers.
Page 32: Beacon 6 (Ha-0336G-A) Unit Data Sheet
5.7 Beacon 6 (HA-0336G-A) functional blocks 5.8 Beacon 6 (HA-0336G-A) special considerations 5.1 Beacon 6 (HA-0336G-A) part numbers and identification Table provides part numbers and identification information for the Beacon 6 (HA- 0336G-A). Table 4 Beacon 6 (HA-0336G-A) identification ...
Page 33: Beacon 6 (Ha-0336G-A) General Description
Traditional WiFi networks require unique SSIDs for each of the access points or tedious set-up of WiFi extenders, which complicate the user experience. The Nokia WiFi network simplifies the user experience by providing a seamless Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 34 Note — accessed by the end user and the operator. Beacon 6 (HA-0336G-A) is a Triband Wi-Fi6 router. It can be deployed as either an Ethernet residential gateway or a WiFi beacon in the Nokia WiFi solution. The residential gateway is the central point of the mesh network providing access to the...
Page 35 Nokia WiFi Beacon 6 Product Guide Beacon 6 (HA-0336W-B) unit data sheet • Tri-band Wifi6: concurrent IEEE 802.11b/g/n/ax 2x3 2.4 GHz, 802.11 a/n/ac/ax 2x2 5.2 GHz, and 802.11 a/n/ac/ax 4x4 5.8 GHz • Automatically decide on wireless router mode and beacon mode in a mesh network ...
Page 36 Beacon 6 (HA-0336W-B) unit data sheet Nokia WiFi Beacon 6 Product Guide interfaces • Three RJ45 Gigabit Ethernet LAN ports; one can be used as Ethernet backhaul link • Supports 2x2 802.11a/b/g/n/ac/ax 2.4 GHz wireless LAN (WLAN) interface •...
Page 37: Object Support For Wifi Parameters
Nokia WiFi Beacon 6 Product Guide Beacon 6 (HA-0336W-B) unit data sheet 5.2.1 TR-069 object support for WiFi parameters The Beacon 6 (HA-0336G-A) supports the status retrieval and configuration of the following WiFi parameters via TR-069: • channel •...
Page 38: Beacon 6 (Ha-0336G-A) Connections And Components
LAN 3 POWER POWER 28231 Table describes the physical connections for Beacon 6 (HA-0336G-A) devices. Table 8 Beacon 6 (HA-0336G-A) physical connections Connection Description On/Off button This button powers the unit on or off.
Page 39: Beacon 6 (Ha-0336G-A) Leds
The circular top of the Beacon 6 (HA-0336G-A) functions as a multi-color LED indicator. The LED color and pulse rate acts as a signal to the home user, which indicates the state of the Beacon 6 and the quality of its backhaul link. Table provides LED descriptions for the Beacon 6 (HA-0336G-A). ...
Page 40: Beacon 6 (Ha-0336G-A) Functional Blocks
Height 205 mm (8.07in.) Weight [within ± 0.5 lb (0.23 kg)] 766.0 g (1.69 lb) Table lists the power consumption specifications for the Beacon 6 (HA-0336G- A). Table 11 Beacon 6 (HA-0336G-A) power consumption specifications ...
Page 41: Beacon 6 (Ha-0336G-A) Special Considerations
5.8.1 WiFi service Beacon 6 (HA-0336G-A) devices feature WiFi service as well as data services. WiFi is a wireless networking technology that uses radio waves to provide wireless HSI and network connections. This device complies with the IEEE 802.11 standards, which the WiFi Alliance defines as the basis for WiFi technology.
Page 42: Nokia Wifi App Configuration
5.8.1.2 Nokia WiFi app configuration The Nokia WiFi mobile app can be used to set up the Beacon 6 (HA-0336G-A) and manage the network. It can be downloaded from the App Store for iOS (https://apps.apple.com/us/app/nokia-wifi/id1345278192) and the Google Play store for Android (https://play.google.com/store/apps/details?id=com.nokia.wifi).
Page 43: Install A Beacon 6 (Ha-0336G-A)
This chapter provides the steps to install a Beacon 6 (HA-0336G-A). 6.2 General The steps listed in this chapter describe installing and cabling for a Beacon 6 (HA- 0336G-A). 6.3 Prerequisites You need the following items before beginning the installation: ...
Page 44: Recommended Tools
Nokia WiFi Beacon 6 Product Guide 6.4 Recommended tools You need the following tools for the installation: • RJ-45 cable • paper clip Install a Beacon 6 (HA-0336G-A) 6.5 Safety information Read the following safety information before installing the unit. ...
Page 45: Procedure
Use this procedure to install a Beacon 6 (HA-0336G-A). Place the unit on a flat surface, such as a desk or shelf. Note — The Beacon 6 (HA-0336G-A) cannot be stacked with another or with other equipment. The installation requirements are: • ...
Page 46: Figure 9 Beacon 6 (Ha-0336G-A)
Nokia WiFi Beacon 6 Product Guide Figure 9 Beacon 6 (HA-0336G-A) connections 28231 Connect the Ethernet cables to the RJ-45 ports; see Figure for the location of the RJ-45 ports. Connect the WAN cable to the RJ-45 WAN port; see Figure for the ...
Page 47: Replace A Beacon 6 (Ha-0336G-A)
Nokia WiFi Beacon 6 Product Guide Verify the LEDs and voltage status. Activate and test the services. 9 If necessary, reset the Beacon 6 (HA- 0336G-A). Note — Resetting the device will return all settings to factory default values; any configuration ...
Page 48: General
Nokia WiFi Beacon 6 Product Guide This chapter provides the steps to replace a Beacon 6 (HA-0336G-A). 7.2 General The steps listed in this chapter describe mounting and cabling for a Beacon 6 (HA- 0336G-A). 7.3 Prerequisites You need the following items before beginning the installation: ...
Page 49: Procedure
See the detailed specifications in the Beacon 6 (HA-0336G-A) unit data sheet for the temperature ranges for these devices. Replace a Beacon 6 (HA-0336G-A) 7.6 Procedure Use this procedure to replace a Beacon 6 (HA-0336G-A). Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 50: Figure 10 Beacon 6 (Ha-0336G-A)
POWER POWER 28231 Disconnect the WAN, Ethernet, and power cables from the Beacon 6 (HA- 0336G-A); see Figure for the connector locations on the Beacon 6 (HA-0336G-A). Replace the Beacon 6 (HA-0336G-A) with the new device. The device ...
Page 51 Units must be powered by a Listed or CE approved and marked limited power source with a minimum output rate of 12 V dc, 2 A. The polarity of the power adapter plug must match the Beacon 6 (HA-0336G-A).
Page 52: Configure A Beacon 6 (Ha-0336G-A)
Use the procedures below to use the web-based GUI for the Beacon 6 (HA-0336G-A). The Beacon 6 (HA-0336G-A) is used as an Ethernet gateway to connect devices in the home to the Internet. The GUI provides a variety of features for the home network including routing and firewall capability.
Page 53: Login
Use the procedure below to login to the web-based GUI for the Beacon 6 (HA-0336G-A). Procedure 6 Login to web-based GUI Open a web browser and enter the IP address of the Beacon 6 (HA-0336G-A) in the address bar. The login window appears. Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 54: Figure 14 Web Login Window
The default gateway IP address is http://192.168.18.1. You can connect to this IP address using your web browser after connecting your PC to one of Ethernet ports of the Beacon 6 (HA-0336G- A). The static IP address of your PC must be in the same 192.168.18.x subnet as the Beacon 6 ...
Page 55: Device And Connection Status
Click Login. The Device Information screen appears. Note — To help protect the security of your Internet connection, the application displays a pop-up reminder to change both the WiFi password and the Beacon 6 (HA-0336G-A) password. To increase password security, use a minimum of 10 characters, consisting of a mix of numbers ...
Page 56 Name on the Beacon 6 (HA-0336G-A) Vendor Name of the vendor Serial Number Serial number of the Beacon 6 (HA-0336G-A) Hardware version Hardware version of the Beacon 6 (HA-0336G-A) Boot version Boot version of the Beacon 6 (HA-0336G-A) ...
Page 57 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) STOP. This procedure is complete. Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 58 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Procedure 8 LAN status retrieval Select Status > LAN Status from the top-level menu in the Ethernet Gateway window, as shown in Figure 17.
Page 59: Figure 17 Lan Status Window
Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Figure 17 LAN status window Table describes the fields in the LAN status window. Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 60 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Table 14 LAN status parameters Field Description LAN Wireless Info Wireless Status Indicates whether the wireless is on or off ...
Page 61 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Figure 18 WAN Status window Table describes the fields in the WAN Status window. Table 15 WAN Status parameters Field Description ...
Page 62 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Tx Dropped Number of packets dropped on the transmit WAN connection Rx Dropped Number of packets dropped on the receive WAN connection ...
Page 63 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) WAN connection list Drop-down menu listing all WAN connections. The connection selected is the connection for which WAN status will be shown. Enable/Disable Select this checkbox to enable the WAN connection ...
Page 64: Figure 20 Home Networking Information Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Figure 20 Home Networking information window Table describes the fields in the Home Networking window. Table 17 Home Networking parameters Field Description ...
Page 65 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Table entry Each entry indicates the status (active or inactive), connection type, device name, IP address, hardware address, and IP address allocation, lease remaining, and last active ...
Page 66: Network Configuration
LAN ports statistics window Click Refresh to update the displayed information. STOP. This procedure is complete. 8.1.3 Network configuration The Beacon 6 (HA-0336G-A) supports network configuration, including: • LAN 3FE-47429-AAAA-TCZZA Issue: 01 ...
Page 67 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) • LAN IPv6 • WAN • WAN DHCP • Wireless 2.4GHz • Wireless 5GHz • Wireless Schedule • IP routing • DNS • TR-069 • QoS Configuration ...
Page 68: Figure 22 Lan Settings Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Figure 22 LAN settings window Table describes the fields in the LAN window. Table 18 LAN parameters Field Description ...
Page 69: Figure 23 Lan Ipv6 Network Window
Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Static DHCP MAC Address Hexadecimal MAC address to associate to the LAN IPv4 Address IP address to associate to the bound MAC address ...
Page 70 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Table 19 LAN IPv6 network parameters Field Description IPv6 LAN Host Configuration DNS Server Choose a DNS server from the drop-down menu ...
Page 71: Figure 24 Wan Window - Route Mode
Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Procedure 15 WAN configuration 1 Select Network > WAN from the top-level menu in the Ethernet Gateway window, as shown in Figure and Figure 25. The fields visible on screen change according to the Connection ...
Page 72 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Connection Type Select a connection type: IPoE or PPPoE Connection Mode Choose the connection mode from the drop-down menu; either Route mode or Bridge mode ...
Page 73 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Click Save. STOP. This procedure is complete. Procedure 16 WAN DHCP configuration 1 Select Network > WAN DHCP from the top-level menu in the Ethernet Gateway window, as shown ...
Page 74 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Field Description Enable DHCP Option 61 Select this checkbox to enable DHCP Option 61 (client identifier) (2 of 2) Configure a WAN DHCP option.
Page 75 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Procedure 17 Wireless 2.4G networking configuration 1 Select Network > Wireless 2.4GHz from the top-level menu in the Ethernet Gateway window, as shown in Figure 27.
Page 76 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Enable Select this checkbox to enable WiFi Choose a WiFi mode from the drop-down menu: Mode • auto (b/g/n) • • ...
Page 77 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) WPS Mode Select a WPS mode from the drop-down menu: • PBC (Push Button Connect) • PIN AP (Personal Identification Number) generated by the AP (Access Point) •...
Page 78: Figure 28 Wireless 5Ghz Network Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Procedure 18 Wireless 5G networking configuration Select Network > Wireless 5GHz from the top-level menu in the Ethernet Gateway window, as shown in Figure 28.
Page 79 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Field Description Bandwidth Choose from: • 20 MHz • 40 MHz • 80 MHz Channel Choose a channel from the drop-down menu or choose Auto to have the channel ...
Page 80 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide When Encryption Mode is set to “WPA/WPA2 Enterprise”, the following options become available: Primary RADIUS server, port and password; Secondary RADIUS server, port, and password; RADIUS accounting port.
Page 81 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Click the plus sign (+) to add a scheduling rule. A separate panel appears for configuring wireless schedule rules. Enter a start time and end time for the period in which you want the wireless signal off.
Page 82: Figure 30 Ip Routing Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Figure 30 IP Routing window Table describes the fields in the IP Routing window. Table 25 IP Routing parameters Field Description ...
Page 83 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 84 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Procedure 21 DNS configuration Select Network > DNS from the top-level menu in the Ethernet Gateway window, as shown in Figure 31. Figure 31 DNS network window ...
Page 85 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Enter the domain name and IP address and click Add. If required, associate an origin domain with a new domain, click Add. STOP. This procedure is complete.
Page 86 (1 of 2) Field Description Username Username used to log in to the Beacon 6 (HA-0336G-A) Password Password used to log in to the Beacon 6 (HA-0336G-A) Connect Request Username Username used to log in to the auto-configuration server ...
Page 87 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Figure 33 QoS Config window (L2) Table describes the fields in the QoS Config window. Table 28 QoS Config parameters Field Description ...
Page 88 STOP. This procedure is complete. Procedure 24 Mesh This procedure describes how to add a Beacon 6 (HA-0336G-A) to the mesh table. Select Network > Mesh from the top-level menu in the Ethernet Gateway window. Figure shows the window for configuring the mesh.
Page 89 3 Click REBOOT in the confirmation dialog box. Ensure that you have connected the WAN port of your Nokia Wi-Fi device to the LAN port of your existing router; see Figure 36. You will lose network connectivity for a short period ...
Page 90: Security Configuration
If required, deselect the Enable Bridge Mode checkbox to return the mesh from bridge mode to router mode. Click Add to add the Beacon 6 (HA-0336G-A) to the table. Click Refresh to update the information in the table. ...
Page 91 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) • Access Control Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 92: Figure 37 Firewall Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Procedure 25 Firewall configuration Select Security > Firewall from the top-level menu in the Ethernet Gateway window, as shown in Figure 37. Figure 37 Firewall window ...
Page 93 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Configure the firewall. Click Save. STOP. This procedure is complete. Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 94 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Procedure 26 MAC filter configuration Select Security > MAC Filter from the top-level menu in the Ethernet Gateway window, as shown in Figure 38. Figure 38 MAC filter window ...
Page 95 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Field Description MAC Filter Mode Choose the MAC filter mode from this drop-down menu: Blocked or Allowed LAN Port Select the checkboxes for the LAN ports ...
Page 96: Figure 39 Ip Filter Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Figure 39 IP filter window Table describes the fields in the IP filter window. Table 32 IP filter parameters Field Description ...
Page 97 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) (2 of 2) Configure the IP filter. Click Add. STOP. This procedure is complete. Procedure 28 URL filter configuration ...
Page 98 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Table describes the fields in the URL Filter window. 3FE-47429-AAAA-TCZZA Issue: 01 ...
Page 99 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Table 33 URL Filter parameters Field Description URL Filter Enable URL Filter Select the checkbox to enable the URL filter ...
Page 100: Table 34 Parental Control Parameters
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Table 34 Parental control parameters Field Description Policy Name Enter a name for the parental control policy or choose a policy from the list ...
Page 101: Figure 42 Dmz And Alg Window
Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Figure 42 DMZ and ALG window Table describes the fields in the DMZ and ALG window. Table 35 DMZ and ALG parameters ...
Page 102: Figure 43 Access Control Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Procedure 31 Access control configuration This procedure describes how to configure the access control level (ACL). Note 1 — ACL takes precedence over the firewall policy.
Page 103: Application Configuration
You can also use the Source IP fields to delete a previously created entry for a subnet trusted network. STOP. This procedure is complete. 8.1.5 Application configuration The Beacon 6 (HA-0336G-A) supports application configuration, including: • port forwarding • port triggering • DDNS • NTP •...
Page 104: Figure 44 Port Forwarding Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Select Application > Port forwarding from the top-level menu in the Ethernet Gateway window, as shown in Figure 44. Figure 44 Port forwarding window ...
Page 105: Figure 45 Port Triggering Window
Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Configure port forwarding. Click Add. STOP. This procedure is complete. Procedure 33 Port triggering Select Application > Port Triggering from the top-level menu in the Ethernet Gateway ...
Page 106 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Triggering Port Enter the triggering port range (1 of 2) Field Description Expire Time Enter the expiration time in seconds ...
Page 107 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Figure 46 DDNS window Table describes the fields in the DDNS window. Table 39 DDNS parameters Field Description WAN Connection List Choose a WAN connection from the drop-down menu ...
Page 108: Figure 47 Ntp Window
Configure DDNS. Click Save. Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide STOP. This procedure is complete. Procedure 35 NTP configuration Application > NTP from the top-level menu in the Ethernet Gateway window, as shown in ...
Page 109: Maintenance
Select the Enable UPnP/DLNA checkbox to enable UPnP and DLNA. Click Save/Apply. STOP. This procedure is complete. 8.1.6 Maintenance The Beacon 6 (HA-0336G-A) supports maintenance tasks, including: • Password change • Device Management • Backup and Restore • Firmware Upgrade • Device Reboot ...
Page 110: Figure 49 Password Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide • the password length must be from 8 to 24 characters • the first character must be a digital number or a letter • the password must contain at least two types of characters: numbers, letters, or special ...
Page 111 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Prompt Message Password prompt message Configure the new password. Click Save. STOP. This procedure is complete. Procedure 38 Device management ...
Page 112: Figure 51 Backup And Restore Window
Click Select File and choose the backup file. Click Import Config File to restore the Beacon 6 (HA-0336G-A) to the saved backup or click Export Config File to export the current configuration to the backup file. ...
Page 113: Figure 52 Firmware Upgrade Window
Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Select Maintenance > Firmware Upgrade from the top-level menu in the Ethernet Gateway window, as shown in Figure 52. Figure 52 Firmware Upgrade window ...
Page 114 window, as shown in Figure 53. Figure 53 Reboot Device window Click Reboot to reboot the Beacon 6 (HA-0336G-A). STOP. This procedure is complete. Procedure 42 Restore factory defaults Select Maintenance > Factory Default from the top-level menu in the Ethernet Gateway ...
Page 115: Figure 54 Factory Default Window
Configure a Beacon 6 (HA-0336W-B) Figure 54 Factory Default window Click Factory Default to reset the Beacon 6 (HA-0336G-A) to its factory default settings. STOP. This procedure is complete. Procedure 43 Diagnose connections ...
Page 116: Figure 55 Diagnostics Window
Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Figure 55 Diagnostics window Choose a WAN connection to diagnose from the drop-down menu. Enter the IP address or domain name.
Page 117 Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) Click Start Test. The results will be displayed at the bottom of the window. Issue: 01 3FE-47429-AAAA-TCZZA ...
Page 118: Figure 56 Log Window
Click Cancel to cancel the test. Nokia WiFi Beacon 6 Product Guide Configure a Beacon 6 (HA-0336W-B) STOP. This procedure is complete. Procedure 44 View log files Select Maintenance > Log from the top-level menu in the Ethernet Gateway window, as shown in ...
Page 119: Rg Troubleshooting Counters
Choose a reading level from the drop-down menu to determine which types of events to display from the log file: • Emergency • Alert • Critical • Error • Warning • Notice •...
Page 120 Configure a Beacon 6 (HA-0336W-B) Nokia WiFi Beacon 6 Product Guide Customer documentation Customer Documentation Welcome Page Technical Support Customer Documentation Technical Support Documentation feedback Customer Documentation Feedback ...
