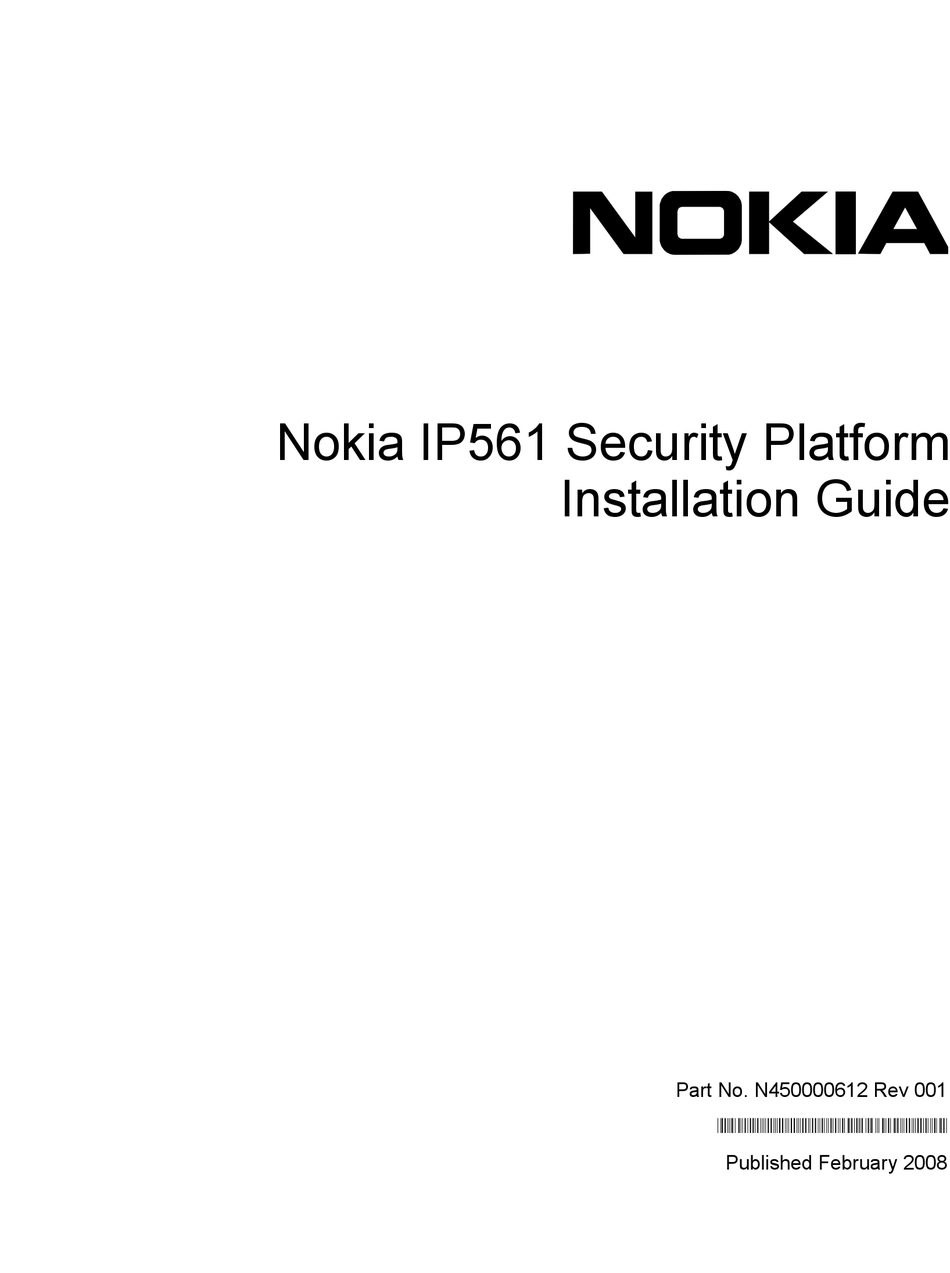

Nokia IP561 Security Platform
Installation Guide
Part No. N450000612 Rev 001
*N450000612 Rev 001*
Published February 2008

Advertisement

Table of Contents
loading

Related Manuals for Nokia IP561

Summary of Contents for Nokia IP561

  • Page 1 Nokia IP561 Security Platform Installation Guide Part No. N450000612 Rev 001 *N450000612 Rev 001* Published February 2008...
  • Page 2 IMPORTANT NOTE TO USERS This software and hardware is provided by Nokia Inc. as is and any express or implied warranties, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall Nokia, or its affiliates, subsidiaries or suppliers be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services;...
  • Page 3 Singapore 119968 Nokia Customer Support Web Site: https://support.nokia.com/ Email: tac.support@nokia.com Americas Europe Voice: 1-888-361-5030 or Voice: +44 (0) 125-286-8900 1-613-271-6721 Fax: 1-613-271-8782 Fax: +44 (0) 125-286-5666 Asia-Pacific Voice: +65-67232999 Fax: +65-67232897 050602 Nokia IP561 Security Platform Installation Guide...
  • Page 4 Nokia IP561 Security Platform Installation Guide...

  • Page 5: Table Of Contents

    About the Nokia IP561 Security Platform ....... . . 17...
  • Page 6 Using Nokia Network Voyager ........
  • Page 7 Monitoring the IP561 Appliance Power Supply ......79 Replacing the Battery ..........80 Troubleshooting .
  • Page 8 Nokia IP561 Security Platform Installation Guide...
  • Page 9 Figure 2 Four-Port 10/100/1000 Ethernet PMC Details ....19 Figure 3 Nokia IP561 Security Platform System Status LEDs ....24 Figure 4 Power Supply and Fan Unit Locations .
  • Page 10 Nokia IP561 Security Platform Installation Guide...
  • Page 11 Table 2 Text Conventions ......... . . 16 Table 3 Nokia IP561 Security Platform Memory Configuration ....17 Table 4 PMC Expansion Slots .
  • Page 12 Nokia IP561 Security Platform Installation Guide...

  • Page 13: About This Guide

    Chapter 3, “Performing the Initial Configuration” describes how to physically connect the Nokia IP561 security platform to a network and to a power source and how to make the security platform available on the network. Chapter 4, “Installing and Replacing Network Interface Cards”...

  • Page 14: Conventions This Guide Uses

    Notes provide information of special interest or recommendations. Command-Line Conventions This section defines the elements of commands that are available in Nokia Network Security Solutions products. You might encounter one or more of the following elements on a command-line path.

  • Page 15: Text Conventions

    Punctuation and mathematical notations are literal symbols that you must enter exactly as shown. Single quotation marks are literal symbols that you must enter as shown. Text Conventions Table 2 describes the text conventions this guide uses. Nokia IP561 Security Platform Installation Guide...

  • Page 16: Related Documentation

    Nokia IPSO-VN Release Notes Nokia Network Voyager inline help You can find the most up-to date version of the Nokia IP561 Security Platform Installation Guide in PDF on the Nokia support site (https://support.nokia.com). You can access inline help from Nokia Network Voyager.

  • Page 17: Overview

    Overview This chapter provides an overview of the Nokia IP561 security platform and the requirements for its use. The following topics are covered: About the Nokia IP561 Security Platform Managing the Nokia IP561 Security Platform Nokia IP561 Security Platform Overview...

  • Page 18: Managing The Nokia Ip561 Security Platform

    For flash-based appliances, you can purchase optional 2.5-inch hard-disk drives to use for logging. The IP561 appliance is designed to meet other mid- to high-end availability requirements, including port density for connections to redundant internal, external, DMZ, and management networks.

  • Page 19: Nokia Ip561 Security Platform Overview

    Nokia IP561 Security Platform Overview For information about how to access the CLI, see the Nokia IPSO-VN Command-Line Interface Reference Guide for IPSO-VN v4.1 or later. Nokia IP561 Security Platform Overview Figure 1 shows the component locations for the IP561.

  • Page 20: Pmc Expansion Slots

    Cables that connect to the Ethernet card must be compliant with IEEE 802.3ab, Cat 5E, or Cat 5 cables to prevent potential data loss. PMC Expansion Slots The IP561 security platform provides two additional PMC expansion slots for NIC options, as described in Table...
  • Page 21 Nokia IP561 Security Platform Overview Note The cable described in this section is a rollover cable, which is required for IP561 console and auxiliary port connections. You cannot use standard Ethernet cables for IP561 console and auxiliary connections. To connect the cable, push the connector into the receptacle, as you would with other similar cables.

  • Page 22: Console Port

    RJ-45 Pin DB-9 Pin Signal The console cable provided with the IP561 is comprised of two parts: a 6-foot rollover cable with RJ-45 terminations an RJ-45 to DB-9 adapter On the opposite end of the console cable, connect the RJ-45 to the DB-9 adapter, which you can then connect to the host terminal.

  • Page 23: System Status Leds

    DB-25 Pin Signal System Status LEDs You can visually monitor the status of the IP561 security platform by checking the system status LEDs. The system status LEDs are located on the center of the front panel, as shown in Figure...

  • Page 24: Figure 3 Nokia Ip561 Security Platform System Status Leds

    Overview Figure 3 Nokia IP561 Security Platform System Status LEDs Warning (yellow) Power indicator System OK Fault (red) (blue) (green) SLOT 2 SLOT 3 SLOT 4 00351 Table 7 shows the system status LEDs and describes their meaning. Table 7 System Status LEDs...

  • Page 25: Logging Options

    Hard-Disk Drive for Logging” on page 67. Power Supply and Fan Unit The power supply and fan unit are located at the rear of the IP561 appliance, as shown in Figure Figure 4 Power Supply and Fan Unit Locations Fan unit...

  • Page 26: Fan Unit

    Fan Unit The IP561 fan is a single unit made up of four individual fans to provide the air flow required to maintain a proper operating temperature. The fan unit can provide proper airflow for a short time even if an individual fan fails.

  • Page 27: Site Requirements, Warnings, And Cautions

    Site Requirements, Warnings, and Cautions Site Requirements, Warnings, and Cautions Before you install a Nokia IP561 security platform, ensure that your computer room or wiring closet conforms to the environmental specifications listed in Appendix A, “Technical Specifications.” Warning Excessive electromagnetic interference (EMI) can occur if you use controls, make performance adjustments, or follow procedures that are not described in this document.

  • Page 28: Product Disposal

    These devices contain materials and components that must be disposed of properly. Therefore, to help prevent damage to the environment, Nokia encourages you to dispose of these devices in an environmentally-friendly manner.

  • Page 29: Installing The Nokia Ip561 Appliance

    Installing the Nokia IP561 Appliance This chapter describes how to install the IP561 appliance. The following topic is discussed: Before You Begin Rack-Mounting the Appliance Before You Begin To rack-mount the appliance, you need: Phillips-head screwdriver Grounding wrist strap Suitable, grounded work surface on which to place the chassis tray assembly...

  • Page 30: Figure 7 Rack-Mounting Screw Locations

    1. Remove the appliance from the packaging. 2. Optionally, remove the fan unit from the back of the appliance to lighten it. a. Locate the fan unit and the two retaining screws that secure it on the back of the IP561. 00353 Fan unit b.
  • Page 31 3. Optionally, remove the power supply from the rear of the appliance to lighten it, as shown in the illustration above. a. Locate the power supply on the back of the IP561 and the two screws that secure it. 00353...
  • Page 32 Slide the chassis tray assembly forward and pull it entirely out of the appliance. 00360gen d. Place the chassis tray assembly on a properly grounded surface. 5. Adjust the mounting brackets on the side of the appliance if necessary. Nokia IP561 Security Platform Installation Guide...
  • Page 33 00359gen 8. Reinstall the fan unit into the rear of the appliance. 9. Reinstall the power supply. After you rack-mount the appliance, you can ground it by using the grounding lugs provided. Nokia IP561 Security Platform Installation Guide...
  • Page 34 Installing the Nokia IP561 Appliance Nokia IP561 Security Platform Installation Guide...

  • Page 35: Performing The Initial Configuration

    Performing the Initial Configuration The first time you turn on power to a Nokia IP561 security platform, the initial configuration process begins. This process enables you to configure the network settings and provides access to the admin account. You can perform the initial configuration manually by using a console connection.

  • Page 36: Connecting Power And Turning The Power On

    One RJ-45 termination has a retractable shroud that releases or secures the RJ-45 tab. Note For information about using the cable Nokia supplies, see “Connecting to the Console or Auxiliary Port with the Supplied Cable” on page 20.

  • Page 37: Figure 8 Power Switch Location

    (115 VAC or 220 VAC [85 to 264]) and configures itself appropriately. 4. Check the power LED (the Nokia logo) on the front panel of the appliance to ensure that the power supply is operating correctly.

  • Page 38: Performing The Initial Configuration

    Performing the Initial Configuration If the fans are still not running, or if the power LED does not illuminate, contact your Nokia service provider or Nokia Support as listed in “Nokia Contact Information” on page 3 for technical support. Performing the Initial Configuration The initial configuration allows you to configure and manage the IPSO-VN by using the Nokia Network Voyager or CLI.

  • Page 39: Connecting Network Interfaces

    Connecting Network Interfaces Connect at least one network interface to the network to use as the Nokia Network Voyager system-management interface. You can also connect the remaining interface cables at this point, although you are not required to do so.

  • Page 40: Using Nokia Network Voyager

    Viewing Nokia IPSO-VN Documentation by Using Nokia Network Voyager The following documentation is available in Nokia Network Voyager and is accessible from the Network Voyager interface, as shown in Figure Nokia Network Voyager Inline Help—You can access inline help when you use Nokia...

  • Page 41: Using The Command-Line Interface

    2. If you log in as Auditor user, you can execute only the show form of commands. That is, you can view configuration settings, but you cannot change them. For more information about how to access and use the CLI, see the Nokia IPSO-VN Command- Line Interface Reference Guide.
  • Page 42 Performing the Initial Configuration Nokia IP561 Security Platform Installation Guide...

  • Page 43: Installing And Replacing Network Interface Cards

    Installing and Replacing Network Interface Cards Your Nokia IP561 security platform comes with any network interface cards (NICs) you ordered already installed. All NICs installed in the appliance are housed in PMC expansion slots. You should have a working knowledge of networking equipment before you attempt to service a appliance.

  • Page 44: Installing Nics

    Installing and Replacing Network Interface Cards Installing NICs Use these instructions to install a NIC in the IP561. Some steps are not applicable to all procedures. The instructions point out steps appropriate to each procedure. Before You Begin To install a Nokia NIC, you need the following:...
  • Page 45 6. From underneath the chassis tray assembly, remove the bezel retaining screws. 00440 If you are installing a NIC in an unoccupied slot, remove the blank bezel that occupies the space in the appliance front panel and retain it for future use. Nokia IP561 Security Platform Installation Guide...
  • Page 46 Insert the NIC bezel into the front panel. 00443 b. Gently push the back of the NIC down toward the chassis tray assembly. Make sure that the NIC edge is completely seated into the connectors on the chassis tray assembly. Nokia IP561 Security Platform Installation Guide...
  • Page 47 9. From beneath the chassis tray assembly, screw in the bezel retaining screws. 10. Insert and close the chassis tray assembly until it clicks into place. 00519gen The IP561 appliance automatically recognizes the NIC and applies the original configuration to the new NIC. Nokia IP561 Security Platform Installation Guide...

  • Page 48: Activating Interfaces

    12. Turn the power on. Activating Interfaces The IP561 appliance automatically detects any new NIC when the appliance is restarted. Monitoring Network Interface Cards You can asses the general operating condition of the NICs in your appliance by looking at the LED status indicators on the NICs.

  • Page 49: Connecting Pmc Network Interface Cards

    For instructions about how to add or replace NICs, see Chapter 4, “Installing and Replacing Network Interface Cards.” The NICs supported in the Nokia IP561 security platform operate at the peripheral component interconnect (PCI) frequency listed in Table Table 9 NIC PCI Frequency...

  • Page 50: Four-Port 10/100 Ethernet Nic

    Ethernet NICs installed in a PMC expansion slot. When you purchase a 10/100 Ethernet NIC with your IP561, the NIC is installed before the appliance is delivered to you. For information about how to add or replace a NIC, see Chapter 4, “Installing and Replacing Network Interface...

  • Page 51: Figure 11 Output Connector For The Ethernet Cable

    Figure 11 Output Connector for the Ethernet Cable Assignment TX + TX - 00270 RX + RX - Figure 12 shows the pin assignments for the RJ-45 cross-over cable. Figure 12 Ethernet Crossover-Cable Pin Connections 00017.1 Nokia IP561 Security Platform Installation Guide...

  • Page 52: Four-Port And Two-Port Copper Gigabit Ethernet

    Gigabit Ethernet NICs installed on a PMC expansion slot. The IP561 can accommodate up to four Gigabit Ethernet NICs. When you purchase a copper Gigabit Ethernet NIC with your IP561, the NIC is installed before the appliance is delivered to you. For information about how to add or replace a NIC, see Chapter 4, “Installing and Replacing Network Interface Cards.”...

  • Page 53: Copper Gigabit Ethernet Nic Connectors And Cables

    Note The two-port copper Gigabit Ethernet NIC you use in IP561 appliance must be the Version 2 type, as indicated on the right end of the NIC faceplate. These NICs are sold by Nokia under the order code NIF4425. After you turn on the appliance, the Ethernet link LEDs on both the appliance and on the remote equipment illuminate to indicate the connection.

  • Page 54: Figure 16 Gigabit Ethernet Cable Connector Output Pin Assignments

    5e type cable, or as required by your network configuration). Note Nokia copper Gigabit Ethernet NICs support cable autosensing. You can use a straight- through or crossover cable to connect the NIC to a Gigabit Ethernet hub or switch or to connect directly to a host.

  • Page 55: Two-Port Fiber-Optic Gigabit Ethernet Nic

    PMC expansion slot. The IP561 can accommodate up to four Gigabit Ethernet NICs. When you purchase a Gigabit Ethernet NIC with your IP561, the NIC is installed before the appliance is delivered to you. For information about how to add or replace a NIC, see Chapter 4, “Installing and Replacing Network Interface Cards.”...

  • Page 56: Fiber-Optic Gigabit Ethernet Nic Connectors And Cables

    After the power is turned on and the cables are connected, the Ethernet link LEDs on both the IP561 and on the remote equipment illuminate to indicate the connection. As data is transmitted, the activity LEDs on the appliance illuminate.

  • Page 57: Replacing Other Components

    Network Interface Cards.” You should have a working knowledge of networking equipment before you attempt to service an IP561 appliance. Limit service of the appliance to the procedures described in this chapter. Note To protect the IP561 appliance and the memory modules from electrostatic discharge damage, make sure you are properly grounded before you touch these components.

  • Page 58: Figure 19 Compact Flash Memory Card Slot

    You risk damage to the appliance or loss of data if you do not use the following procedure when you replace the compact flash memory. 1. Use Nokia Network Voyager or the command-line interface (CLI) to perform an orderly shutdown of the IP561 appliance.
  • Page 59 4. Slide the chassis tray assembly forward, pressing the release tab on the right side of the assembly, and completely remove the chassis to expose the motherboard components. 00520gen 5. Place the chassis tray assembly on a table top. Nokia IP561 Security Platform Installation Guide...

  • Page 60: Installing A Pc Card

    10. Turn on the power supply at the back of the appliance. Installing a PC Card The IP561 has a single PC-card slot that can support a PC card with 1-GB flash memory. The slot is labeled Slot 3 and is located on the front panel of the appliance, as Figure 20 shows.

  • Page 61: Figure 20 External Pc Card Location

    Click Save. You can also use CLI to remove the PC card. For more information about how to remove the hard-disk drive by using CLI, see the Nokia IPSO-VN User’s Guide and the Nokia IPSO-VN Command-Line Interface Reference Guide.

  • Page 62: Installing Or Replacing A Hard-Disk Drive

    Logging” on page 67 for information about configure the hard-disk drive for logging on flash-based IP561 appliances. For the disk-based IP561, you do not need to configure the hard- disk drive for logging. This section describes how to install or replace a hard-disk drive.
  • Page 63 Click Save. You can also use CLI to remove the hard-disk drive. For more information about how to remove the hard-disk drive by using CLI, see the Nokia IPSO-VN User’s Guide and the Nokia IPSO-VN Command-Line Interface Reference Guide.

  • Page 64: Figure 21 Location Of Hard-Disk Drive On The Chassis Tray Assembly

    6. Place the chassis tray assembly on a table top. Figure 21 Location of Hard-Disk Drive on the Chassis Tray Assembly Slot 1 Slot 2 00352gen Note You must install the hard-disk in Slot 1. Nokia IP561 Security Platform Installation Guide...
  • Page 65 Installing or Replacing a Hard-Disk Drive 7. Remove the four screws from the base of the hard-disk drive and remove the hard-disk drive. 00445 Nokia IP561 Security Platform Installation Guide...
  • Page 66 Replacing Other Components To install or a hard-disk drive 1. Slide the new hard-disk drive onto the mounting locations. 00355 2. Replace the four screws. 00445 Nokia IP561 Security Platform Installation Guide...

  • Page 67: Configuring A Hard-Disk Drive For Logging

    4. Resecure the two chassis tray assembly retaining screws. Configuring a Hard-Disk Drive for Logging On the flash-based IP561, you can save log files locally by installing and configuring an optional hard-disk drive. The Nokia IPSO-VN User’s Guide and the Nokia IPSO-VN Command-Line Interface Reference Guide contain instructions for configuring a Nokia appliance to store Nokia IPSO-VN log messages on the disk.

  • Page 68: Replacing Or Upgrading Memory

    Nokia-approved memory upgrade kit. The IP561 comes with 1 GB of RAM in two 512 MB DIMMs and can be upgraded to 2 GB of RAM by the addition of a pair of 512 MB DIMMs.

  • Page 69: Before You Begin

    To replace DIMMs 1. Use Nokia Network Voyager or the command-line interface (CLI) to perform an orderly shutdown of the appliance. For information about how to access Network Voyager and the related reference materials, “Using Nokia Network Voyager”...
  • Page 70 DIMM upward. You might need to pull opposite ends of the DIMM alternately to gradually free it from the contact pins. 00469gen 6. Press the new DIMM into the socket until it clicks into place. Nokia IP561 Security Platform Installation Guide...
  • Page 71 8. Resecure the two chassis tray assembly retaining screws. 9. Turn on the power. The IP561 appliance automatically recognizes the new memory configuration. You can verify the configuration by using Nokia Network Voyager or the CLI. Nokia IP561 Security Platform Installation Guide...

  • Page 72: Replacing A Nokia Encryption Accelerator Card

    Replacing Other Components Replacing a Nokia Encryption Accelerator Card The IP561 comes with the Nokia encryption accelerator card preinstalled as part of its base bundle to further enhance VPN performance. The accelerator card provides high-speed cryptographic processing that enhances VPN performance.
  • Page 73 00520gen 5. Locate the PMC encryption accelerator card on the motherboard. The encryption card is located on the back left side of the motherboard. 00361gen Nokia IP561 Security Platform Installation Guide...
  • Page 74 The two sets of connectors should be aligned with each other. The four screw holes and four standoffs should also be aligned with each other. 8. Push down on the card until it is properly seated on the motherboard. 00518 Nokia IP561 Security Platform Installation Guide...

  • Page 75: Configuring Software To Use Hardware Acceleration

    75. Configuring Software to Use Hardware Acceleration IF there is a optional encryption accelerator card on the IP561 appliance, IPSO-VN will use it automatically. You can also use Nokia Network Voyager or the CLI to configure virtual private network (VPN) to enable or disable hardware acceleration.

  • Page 76: Replacing A Fan Unit

    3. Use follwing command to enable or disable the card. vpn-accel on|off For more information about how to use the CLI, see the Nokia IPSO-VN Command-Line Interface Reference Guide. You can also monitor Nokia encryption accelerator card with Network Voyager. For more information about how to access Network Voyager and locating relevant reference materials, see the Nokia IPSO-VN User’s Guide.

  • Page 77: Replacing A Power Supply

    Replacing a Power Supply 3. Locate the fan unit on the back of the IP561 appliance and the two retaining screws that secure it. 00353 Retaining screws 4. Loosen the retaining screws by turning them counterclockwise. 5. Slowly pull the fan unit out of the chassis toward the rear.

  • Page 78: Figure 23 Power Supply Location

    To replace a power supply 1. Use Nokia Network Voyager or command-line interface (CLI) to perform an orderly shutdown of the IP561 appliance. For information about how to access Network Voyager, see Using Nokia Network Voyager on page 40.

  • Page 79: Monitoring The Ip561 Appliance Power Supply

    11. Turn on the power. Monitoring the IP561 Appliance Power Supply You can monitor the status of the IP561 appliance power supply with Nokia Network Voyager. Similarly, you can also use the command-line interface (CLI). For information about the CLI, see the Nokia IPSO-VN Command-Line Interface Reference Guide.

  • Page 80: Replacing The Battery

    To install the battery, perform the following tasks: 1. Use Nokia Network Voyager or the command-line interface (CLI) to perform an orderly shutdown of the IP561. For information about how to access Network Voyager and the related reference materials, “Using Nokia Network Voyager”...
  • Page 81 To properly dispose of the battery, see “Product Disposal” on page 28. 8. With the positive side facing up, slide the new battery through the cutout in the battery holder. Nokia IP561 Security Platform Installation Guide...
  • Page 82 Nokia service provider. For more information, see “Nokia Contact Information” on page 3. 12. Reset the appliance date and time information by using Nokia Network Voyager or the command-line interface. The battery is required to maintain the date and time whenever you shut down the appliance.

  • Page 83: Troubleshooting

    Solution Verify terminal settings: 8 data, 1 stop, no parity, 9600 bps. Problem Terminal set for flow control. Solution The IP561 does not use flow control. The terminal should be set for no flow control. Problem Defective IP561 or file system.
  • Page 84 Use the full installation procedure to install a new system. The new system completely replaces the contents of the drive and might be needed to restore or reload an IP561. This procedure erases any configuration database on the appliance. For information about how to complete the full installation procedure, see the current release notes.
  • Page 85 Appliance Does Not Recognize New Memory Configuration Problem DIMMs are not properly seated in DIMM sockets. Solution Repeat memory installation procedures. Make sure DIMMs are fully seated in sockets. Be sure DIMMs click into place. Nokia IP561 Security Platform Installation Guide...
  • Page 86 Troubleshooting Nokia IP561 Security Platform Installation Guide...

  • Page 87: A Technical Specifications

    IP561 requires the following space in a rack: 3.5 inches (8.89 centimeters) of vertical space 28 inches (71 centimeters) behind the front-panel of the rack 6 inches (15 centimeters) behind the IP561 to allow the back exit fan to move air through the appliances Caution Do not block the ventilation holes on the IP561 appliance.
  • Page 88 Technical Specifications Nokia IP561 Security Platform Installation Guide...

  • Page 89: B Compliance Information

    1 to 100,000 Date First Applied: 2007 conforms to the following standards: Safety: UL60950-1, First Edition:2003, CAN/CSA-C22.2 No 60950:2000, IEC60950-1: 2001, EN60950- 1:2001+A11 with Japanese National Deviations EMC: EN55024 1998, EN55022A 1998, EN61000-3-2, EN61000-3-3 Nokia IP561 Security Platform Installation Guide...

  • Page 90: Compliance Statements

    European Community (CE) EN61000-4-3 European Community (CE) EN61000-4-4 European Community (CE) EN61000-4-5 European Community (CE) EN61000-4-6 European Community (CE) EN61000-4-11 European Community (CE) Harmonics and Voltage Fluctuation EN61000-3-2 European Community (CE) EN61000-3-3 European Community (CE) Nokia IP561 Security Platform Installation Guide...

  • Page 91: Fcc Notice (Us)

    Consult the dealer or an experienced radio/TV technician for help. Caution Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Nokia IP561 Security Platform Installation Guide...
  • Page 92 Compliance Information Nokia IP561 Security Platform Installation Guide...

  • Page 93: Index

    PC card slot 61 requirements 27 EMC standards 89 compact flash card 17 emissions standards 90 replacing 57 encryption accelerator card 18 compliance information 89 configuring software to use 75 compliance statements 90 Nokia IP561 Security Platform Installation Guide Index - 93...
  • Page 94 IEEE 802.3z 55 opening Nokia Network Voyager 40 immunity standards 90 operational temperature 87 initial memory configuration 17 output connector, Ethernet cable 51 input voltage 25 output voltage 25 installing NICs 44 Index - 94 Nokia IP561 Security Platform Installation Guide...
  • Page 95 SC connector 56 serial port 18, 22 signal, auxiliary port 23 site requirements 27 slot identification 39 slot numbering 39 space requirements 87 specifications, technical 87 standoffs, motherboard 75 supported NICs 43 Nokia IP561 Security Platform Installation Guide Index - 95...
  • Page 96 Index - 96 Nokia IP561 Security Platform Installation Guide...
