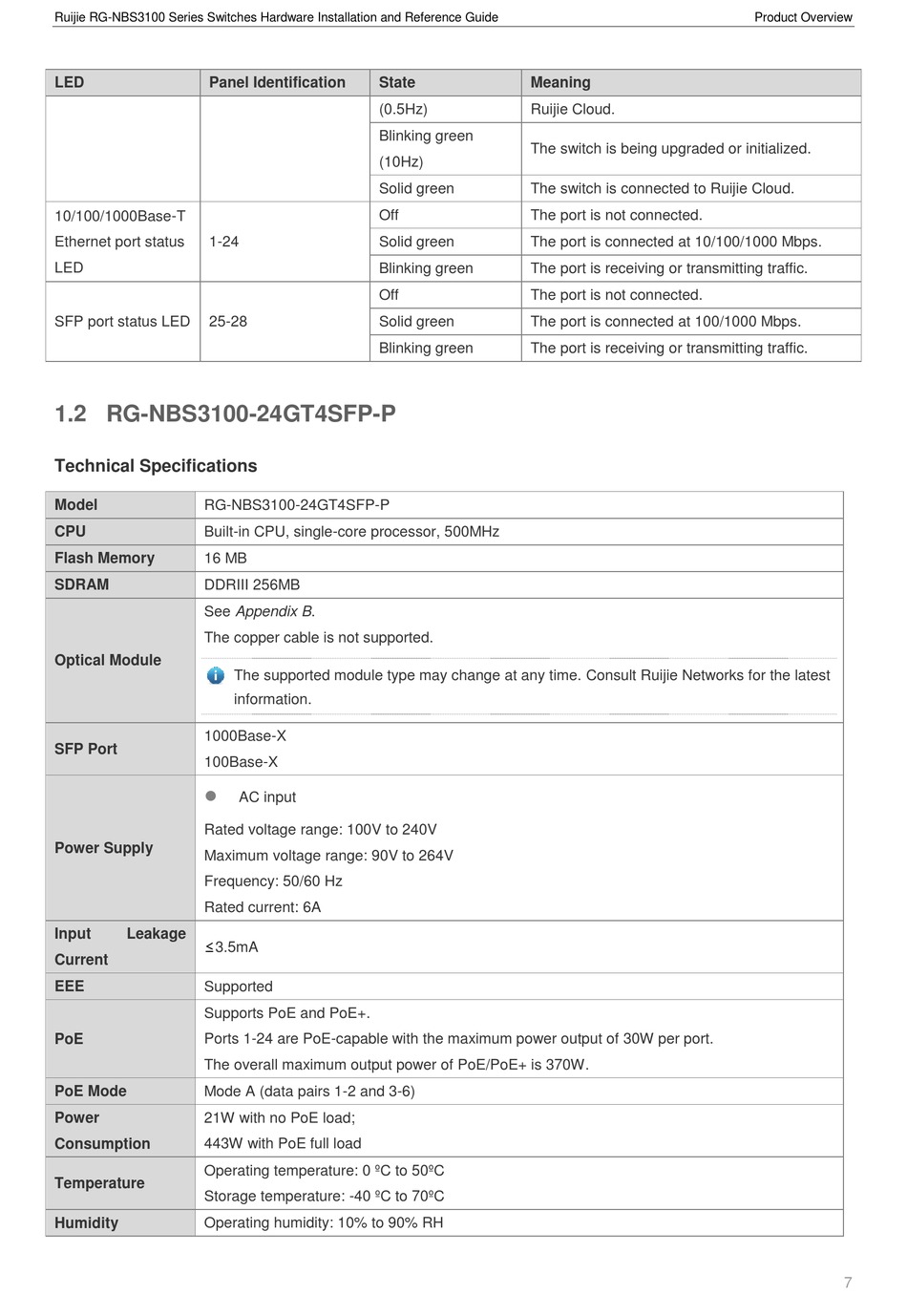

Ruijie RG-NBS3100 Series Hardware Installation And Reference Manual page 7

Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide
LED Panel Identification
10/100/1000Base-T
Ethernet port status 1-24
LED
SFP port status LED 25-28
1.2 RG-NBS3100-24GT4SFP-P
Technical Specifications
Model RG-NBS3100-24GT4SFP-P
CPU Built-in CPU, single-core processor, 500MHz
Flash Memory 16 MB
SDRAM DDRIII 256MB
See Appendix B.
The copper cable is not supported.
Optical Module
1000Base-X
SFP Port
100Base-X

Rated voltage range: 100V to 240V
Power Supply
Maximum voltage range: 90V to 264V
Frequency: 50/60 Hz
Rated current: 6A
Input Leakage
≤3.5mA
Current
EEE Supported
Supports PoE and PoE+.
PoE Ports 1-24 are PoE-capable with the maximum power output of 30W per port.
The overall maximum output power of PoE/PoE+ is 370W.
PoE Mode Mode A (data pairs 1-2 and 3-6)
Power 21W with no PoE load;
Consumption 443W with PoE full load
Operating temperature: 0 º C to 50º C
Temperature
Storage temperature: -40 º C to 70º C
Humidity Operating humidity: 10% to 90% RH
State
(0.5Hz)
Blinking green
(10Hz)
Solid green
Off
Solid green
Blinking green
Off
Solid green
Blinking green
The supported module type may change at any time. Consult Ruijie Networks for the latest
information.
AC input
Meaning
Ruijie Cloud.
The switch is being upgraded or initialized.
The switch is connected to Ruijie Cloud.
The port is not connected.
The port is connected at 10/100/1000 Mbps.
The port is receiving or transmitting traffic.
The port is not connected.
The port is connected at 100/1000 Mbps.
The port is receiving or transmitting traffic.
