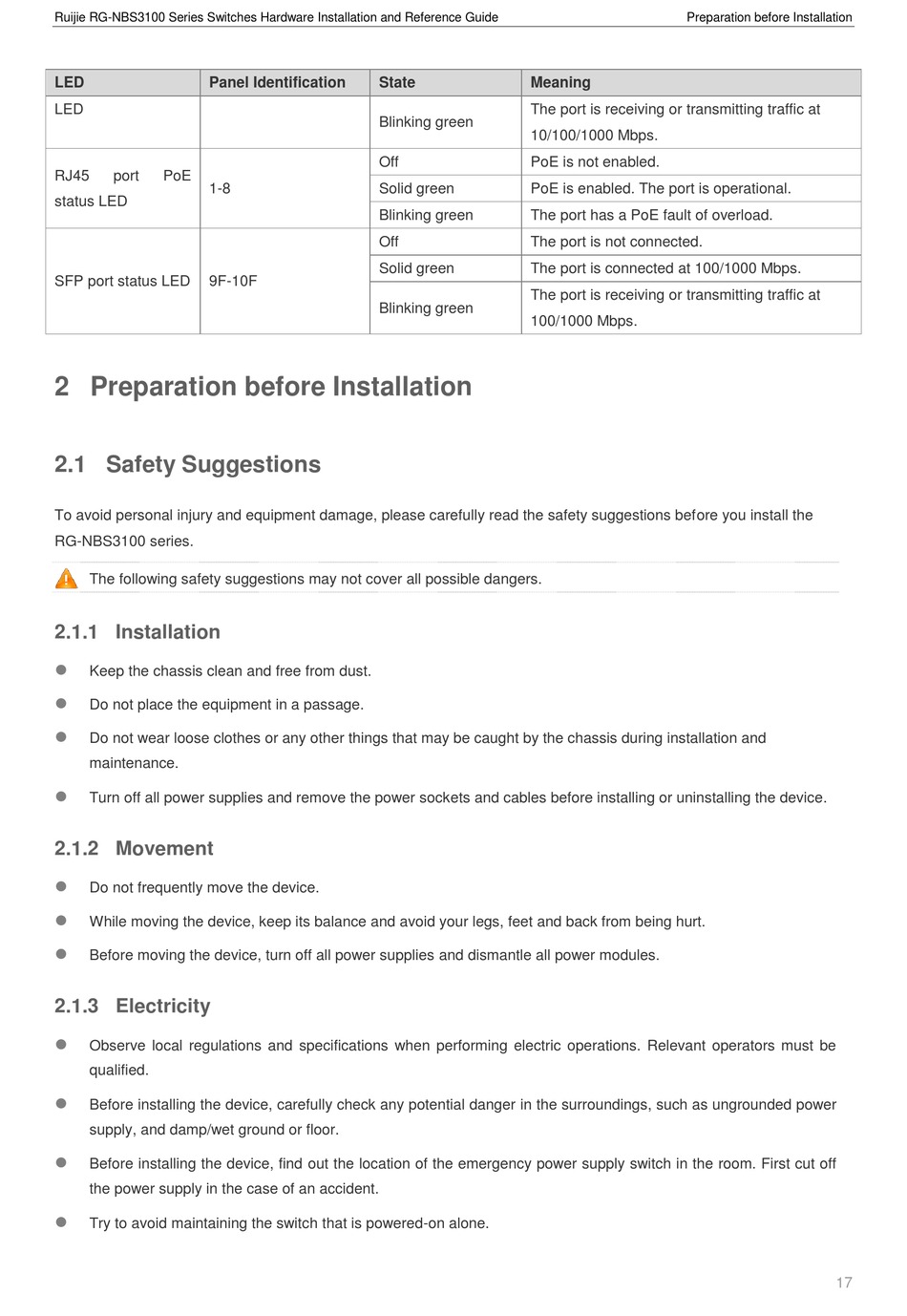

Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide
LED Panel Identification
LED
RJ45 port PoE
1-8
status LED
SFP port status LED 9F-10F

2 Preparation before Installation

2.1 Safety Suggestions

To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the
RG-NBS3100 series.
The following safety suggestions may not cover all possible dangers.
2.1.1 Installation

Keep the chassis clean and free from dust.

Do not place the equipment in a passage.

Do not wear loose clothes or any other things that may be caught by the chassis during installation and
maintenance.

Turn off all power supplies and remove the power sockets and cables before installing or uninstalling the device.
2.1.2 Movement

Do not frequently move the device.

While moving the device, keep its balance and avoid your legs, feet and back from being hurt.

Before moving the device, turn off all power supplies and dismantle all power modules.
2.1.3 Electricity

Observe local regulations and specifications when performing electric operations. Relevant operators must be
qualified.

Before installing the device, carefully check any potential danger in the surroundings, such as ungrounded power
supply, and damp/wet ground or floor.

Before installing the device, find out the location of the emergency power supply switch in the room. First cut off
the power supply in the case of an accident.

Try to avoid maintaining the switch that is powered-on alone.
State Meaning
The port is receiving or transmitting traffic at
Blinking green
10/100/1000 Mbps.
Off PoE is not enabled.
Solid green PoE is enabled. The port is operational.
Blinking green The port has a PoE fault of overload.
Off The port is not connected.
Solid green The port is connected at 100/1000 Mbps.
The port is receiving or transmitting traffic at
Blinking green
100/1000 Mbps.
Preparation before Installation
17
