Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide

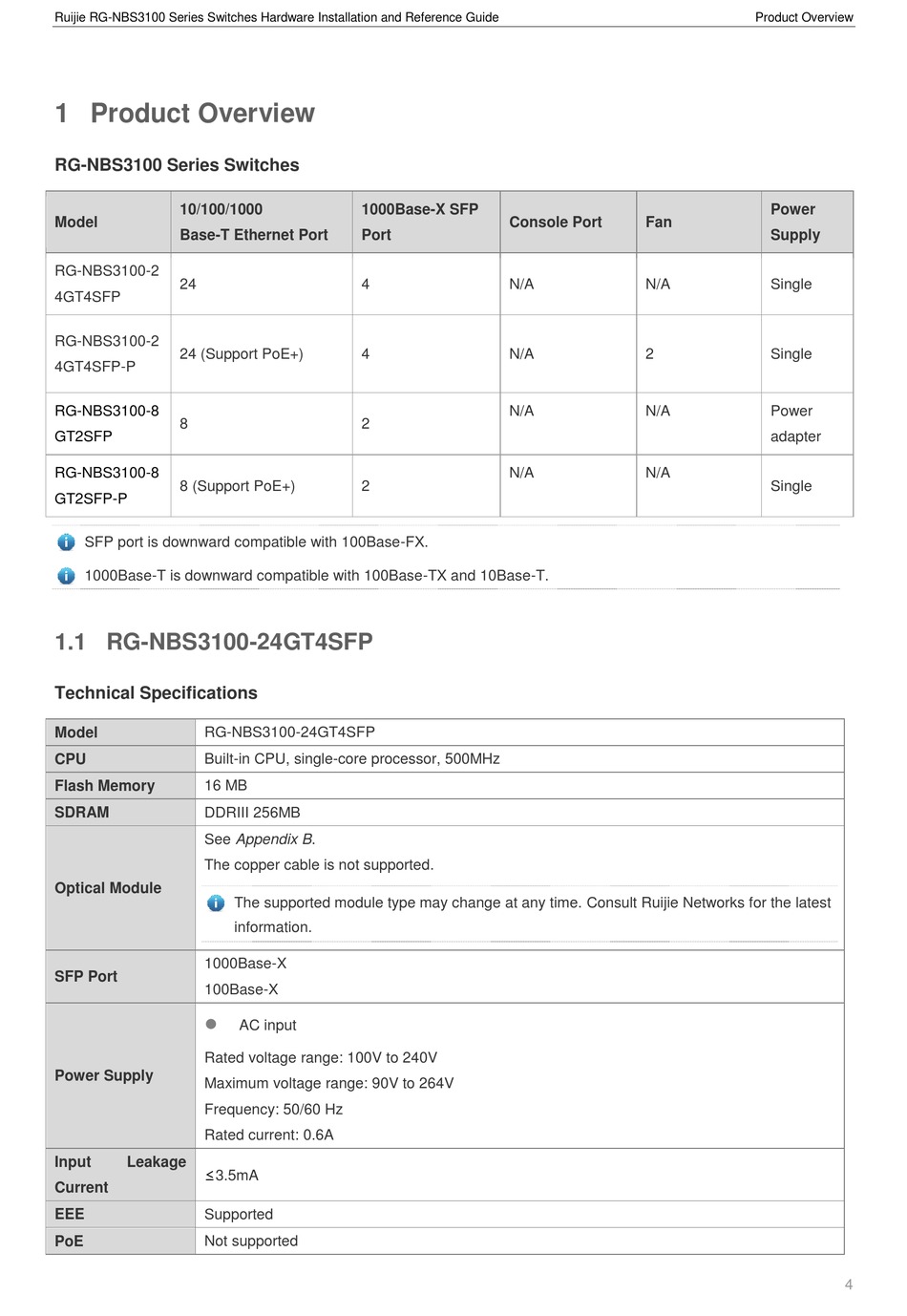

1 Product Overview

RG-NBS3100 Series Switches
10/100/1000
Model
Base-T Ethernet Port
RG-NBS3100-2
24
4GT4SFP
RG-NBS3100-2
24 (Support PoE+)
4GT4SFP-P
RG-NBS3100-8
8
GT2SFP
RG-NBS3100-8
8 (Support PoE+)
GT2SFP-P
SFP port is downward compatible with 100Base-FX.
1000Base-T is downward compatible with 100Base-TX and 10Base-T.
1.1 RG-NBS3100-24GT4SFP
Technical Specifications
Model RG-NBS3100-24GT4SFP
CPU Built-in CPU, single-core processor, 500MHz
Flash Memory 16 MB
SDRAM DDRIII 256MB
See Appendix B.
The copper cable is not supported.
Optical Module
1000Base-X
SFP Port
100Base-X

Rated voltage range: 100V to 240V
Power Supply
Maximum voltage range: 90V to 264V
Frequency: 50/60 Hz
Rated current: 0.6A
Input Leakage
≤3.5mA
Current
Supported
EEE
Not supported
PoE
1000Base-X SFP
Port
4
4
2
2
The supported module type may change at any time. Consult Ruijie Networks for the latest
information.
AC input
Console Port Fan
N/A N/A
N/A 2
N/A N/A
N/A N/A
Product Overview
Power
Supply
Single
Single
Power
adapter
Single
4
