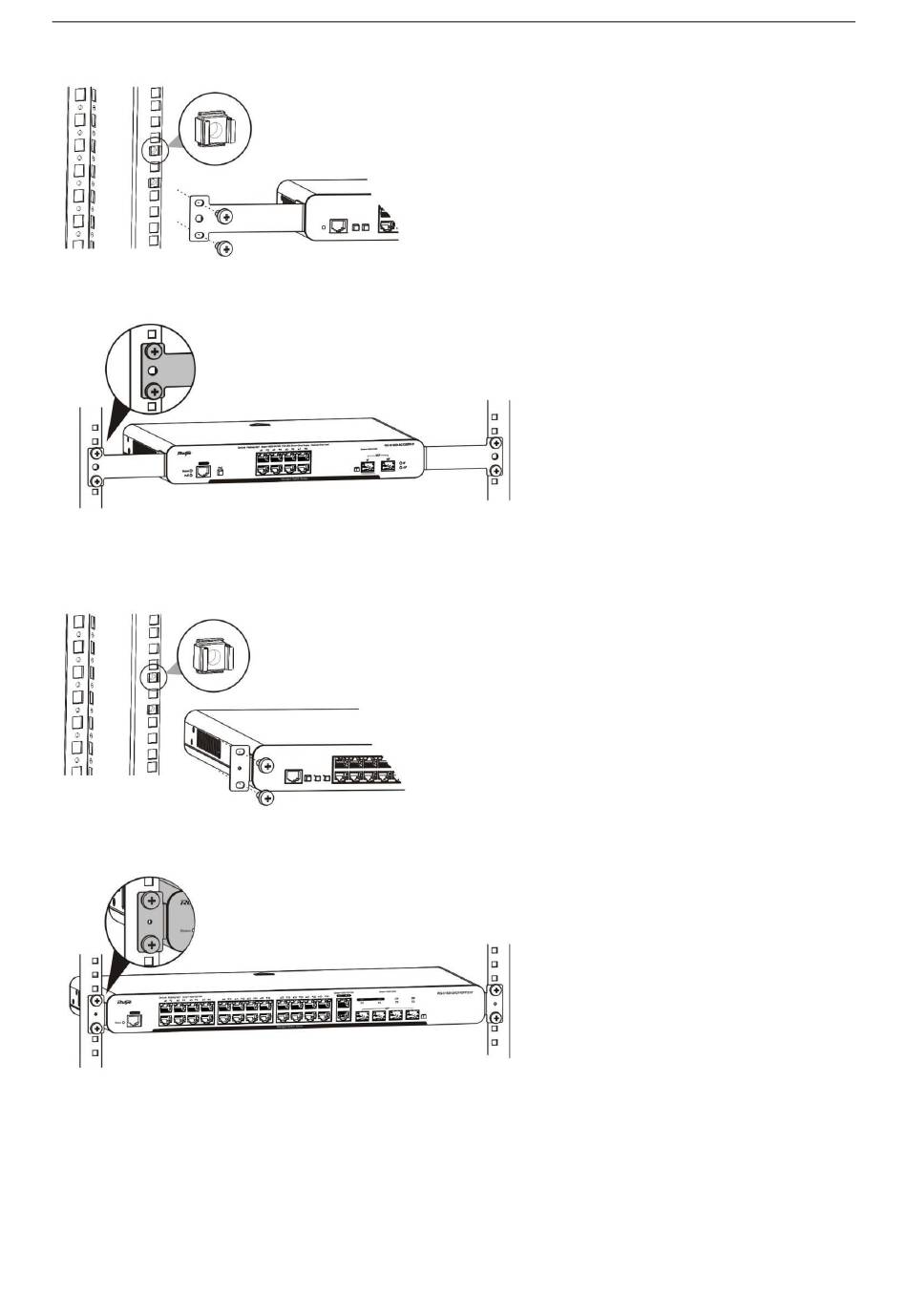

Figure 3-4 Attaching the Brackets to the Rack (8-Port Switch)
Figure 3-5 Attaching the Brackets to the Rack (24-Port Switch)
Figure 3-6 Attaching the Brackets to the Rack (24-Port Switch)
3.3.2 Mounting the Switch on a Table
Attach the four rubber pads to the recessed areas on the bottom of the switch, as shown in Figure 3-7 and Figure 3-8.
Figure 3-7 Attaching the Rubber Feet to the Recessed Areas
