Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide

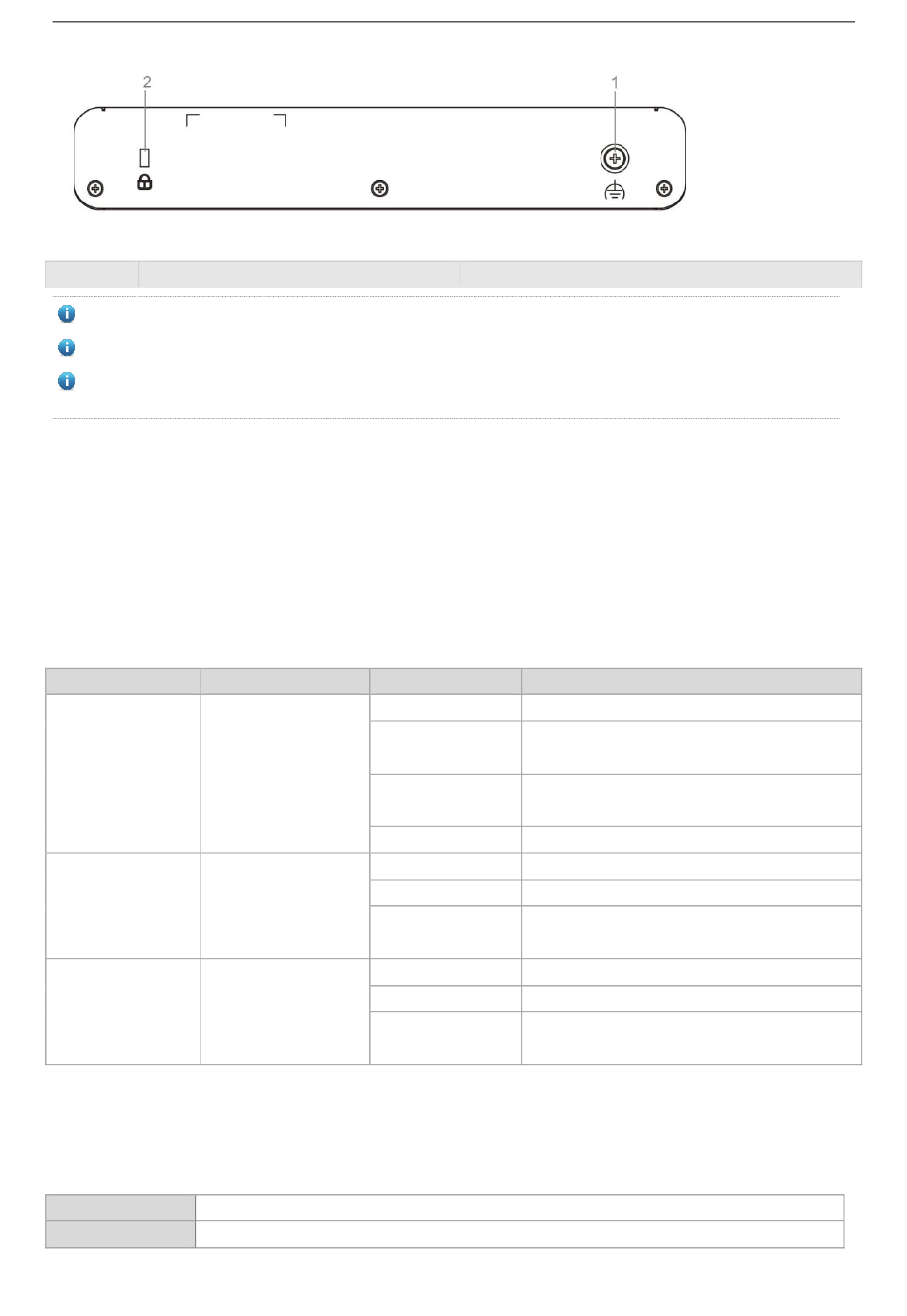

Note: 1. Protective earthing terminal
This device relies on the separate protective earthing terminal.
The device installation shall be permanently connected to building earth by a skilled person.
The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication
centre, a dedicated computer room, or a restricted access area).
Heat Dissipation
RG-NBS3100-8GT2SFP adopts natural heat dissipation, thereby ensuring normal function of the device in the specified
environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air
circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.
LED
LED Panel Identification
System status LED Status
10/100/1000Base-T
Ethernet port status 1-8
LED
SFP port status LED 9F-10F
1.4 RG-NBS3100-8GT2SFP-P
Technical Specifications
Model RG-NBS3100-8GT2SFP-P
Built-in CPU, single-core processor, 500 MHz
CPU
2. Hole for anti-theft lock
State Meaning
Off The switch is not receiving power.
Blinking green The switch is running, but is not connected to
(0.5Hz) Ruijie Cloud.
Blinking green
The switch is being upgraded or initialized.
(10Hz)
Solid green The switch is connected to Ruijie Cloud.
Off The port is not connected.
Solid green The port is connected at 10/100/1000 Mbps.
The port is receiving or transmitting traffic
Blinking green
10/100/1000 Mbps.
Off The port is not connected.
Solid green The port is connected at 100/1000 Mbps.
The port is receiving or transmitting traffic at
Blinking green
100/1000 Mbps.
