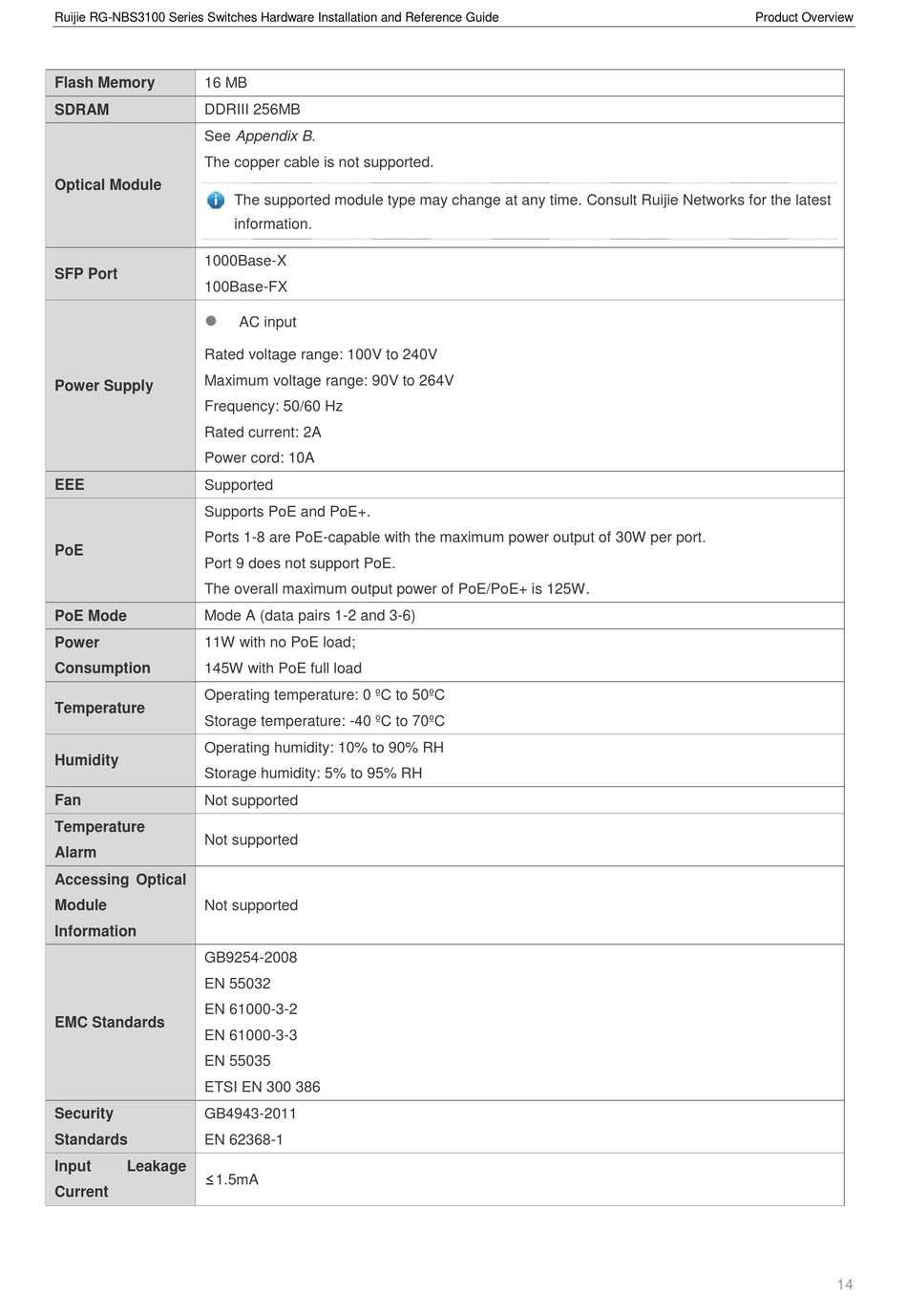

Ruijie RG-NBS3100 Series Hardware Installation And Reference Manual page 14

Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide
16 MB
Flash Memory
SDRAM DDRIII 256MB
See Appendix B.
The copper cable is not supported.
Optical Module
1000Base-X
SFP Port
100Base-FX

Rated voltage range: 100V to 240V
Maximum voltage range: 90V to 264V
Power Supply
Frequency: 50/60 Hz
Rated current: 2A
Power cord: 10A
EEE Supported
Supports PoE and PoE+.
Ports 1-8 are PoE-capable with the maximum power output of 30W per port.
PoE
Port 9 does not support PoE.
The overall maximum output power of PoE/PoE+ is 125W.
PoE Mode Mode A (data pairs 1-2 and 3-6)
Power 11W with no PoE load;
Consumption 145W with PoE full load
Operating temperature: 0 º C to 50º C
Temperature
Storage temperature: -40 º C to 70º C
Operating humidity: 10% to 90% RH
Humidity
Storage humidity: 5% to 95% RH
Fan Not supported
Temperature
Not supported
Alarm
Accessing Optical
Module Not supported
Information
GB9254-2008
EN 55032
EN 61000-3-2
EMC Standards
EN 61000-3-3
EN 55035
ETSI EN 300 386
Security GB4943-2011
Standards EN 62368-1
Input Leakage
≤1.5mA
Current
The supported module type may change at any time. Consult Ruijie Networks for the latest
information.
AC input
Product Overview
14
