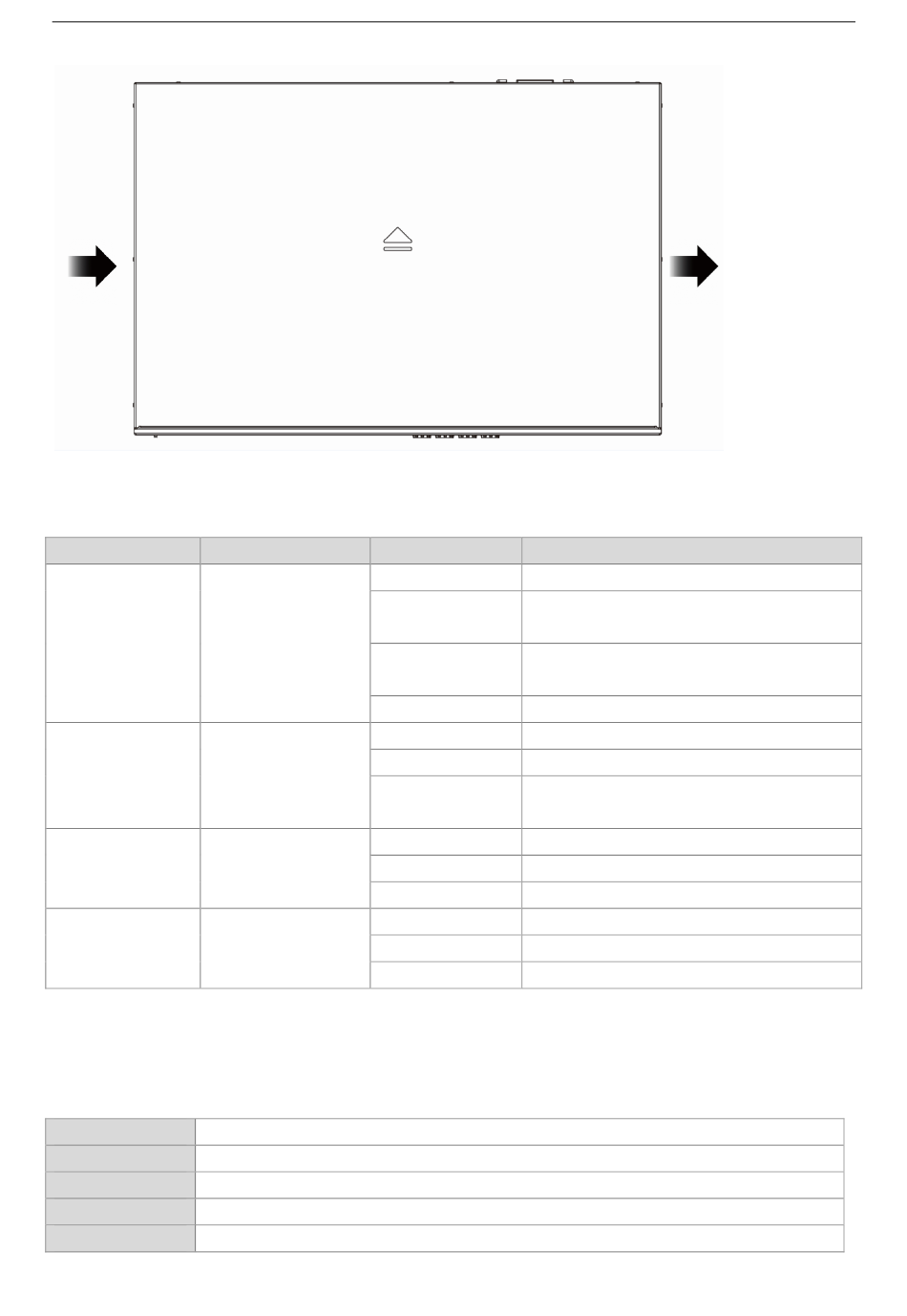

Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide
LED
LED Panel Identification
System status LED Status
10/100/1000Base-T
Ethernet port status 1-24
LED
RJ45 port PoE
1-24
status LED
SFP port status LED 25F-28F
1.3 RG-NBS3100-8GT2SFP
Technical Specifications
Model RG-NBS3100-8GT2SFP
CPU Built-in CPU, single-core processor, 500 MHz
Flash Memory 16 MB
SDRAM DDRIII 256 MB
Optical Module See Appendix B.
State Meaning
Off The switch is not receiving power.
Blinking green The switch is running, but the alarm of
(0.5 Hz) insufficient PoE power prompts.
Blinking green
The switch is being upgraded or initialized.
(10Hz)
Solid green The switch is connected to Ruijie Cloud.
Off The port is not connected.
Solid green The port is connected at 10/100/1000 Mbps.
The port is receiving or transmitting traffic at
Blinking green
10/100/1000 Mbps.
Off PoE is not enabled.
Solid green PoE is enabled. The port is operational.
Blinking green The port has a PoE fault of overload.
Off The port is not connected.
Solid green The port is connected.
Blinking green The port is receiving or transmitting traffic.
Product Overview
