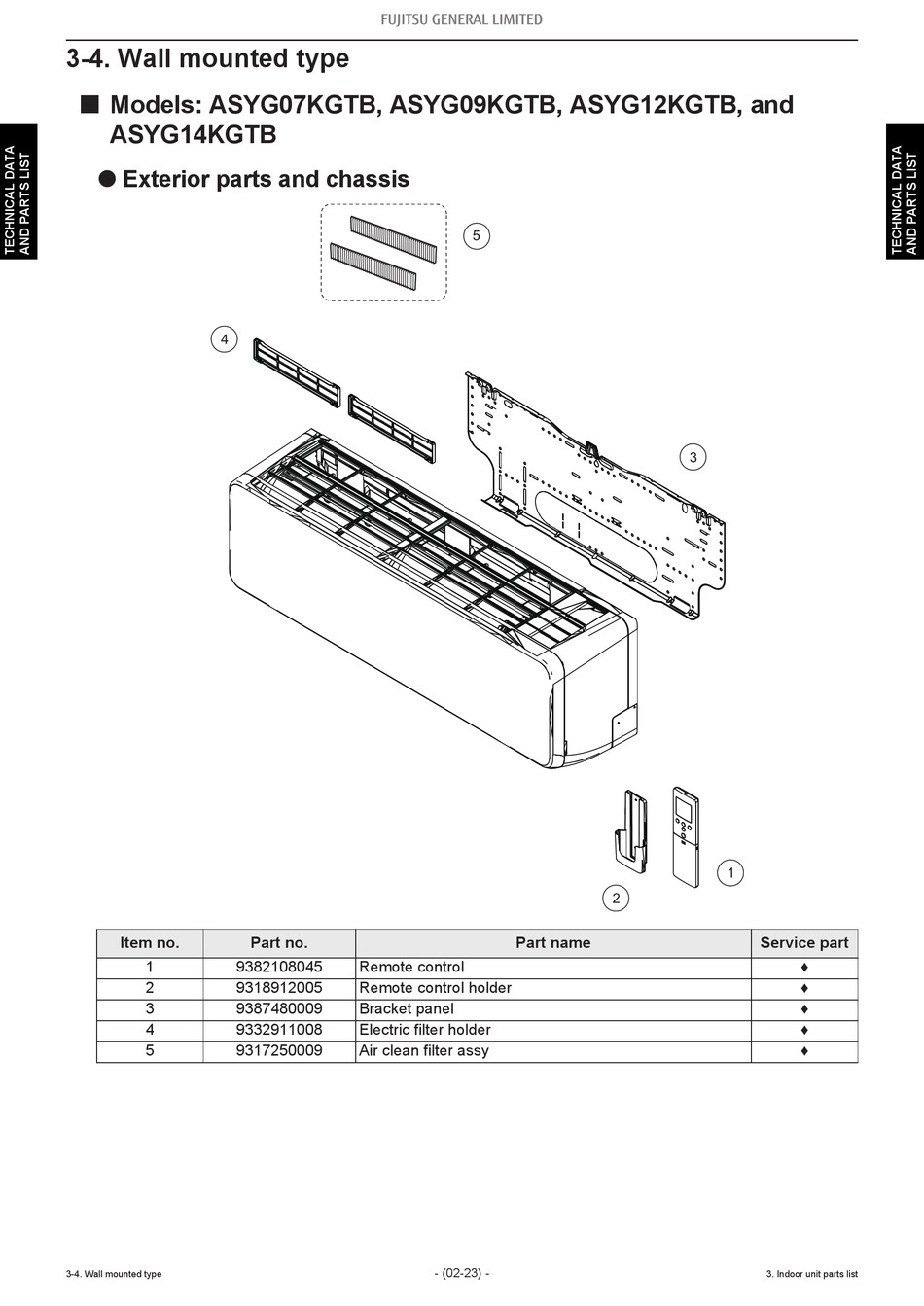

3-4. Wall mounted type

¢ Models: ASYG07KGTB, ASYG09KGTB, ASYG12KGTB, and
ASYG14KGTB
 Exterior parts and chassis
4
Item no.
1
9382108045
2
9318912005
3
9387480009
4
9332911008
5
9317250009
3-4. Wall mounted type
Part no.
Remote control
Remote control holder
Bracket panel
Electric filter holder
Air clean filter assy
5
Part name
- (02-23) -
3
1
2
Service part
3. Indoor unit parts list
