Fujitsu AUXG07KVLA Service Manual page 63

3-unit multi-split type
Hide thumbs

Advertisement

Table of Contents
Item no.
31
32
33
34
35

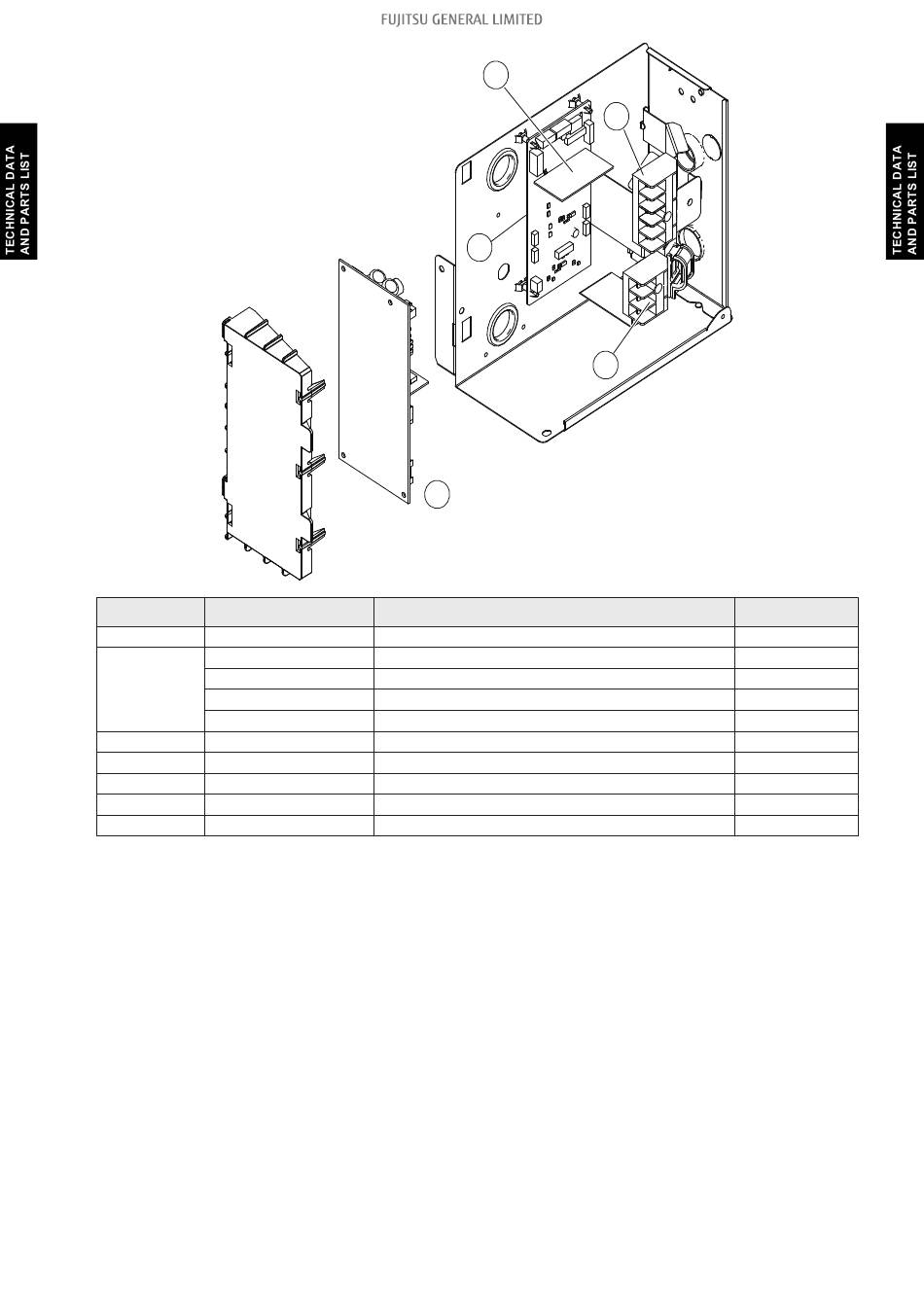

3-3. Slim duct type
Part no.
9710661006
Power supply PCB
9710624308
Main PCB (For 07 model)
9710624209
Main PCB (For 09 model)
9710624216
Main PCB (For 12 model)
9710624148
Main PCB (For 14 model)
9710019005
2-way remote PCB
9900568009
Terminal 3P
9900896003
Terminal 3P (For wired remote controller)
9900653019
Room thermistor
9900942045
Pipe thermistor
33
32
34
31
Part name
- (02-19) -
35
Service part
3. Indoor unit parts list
