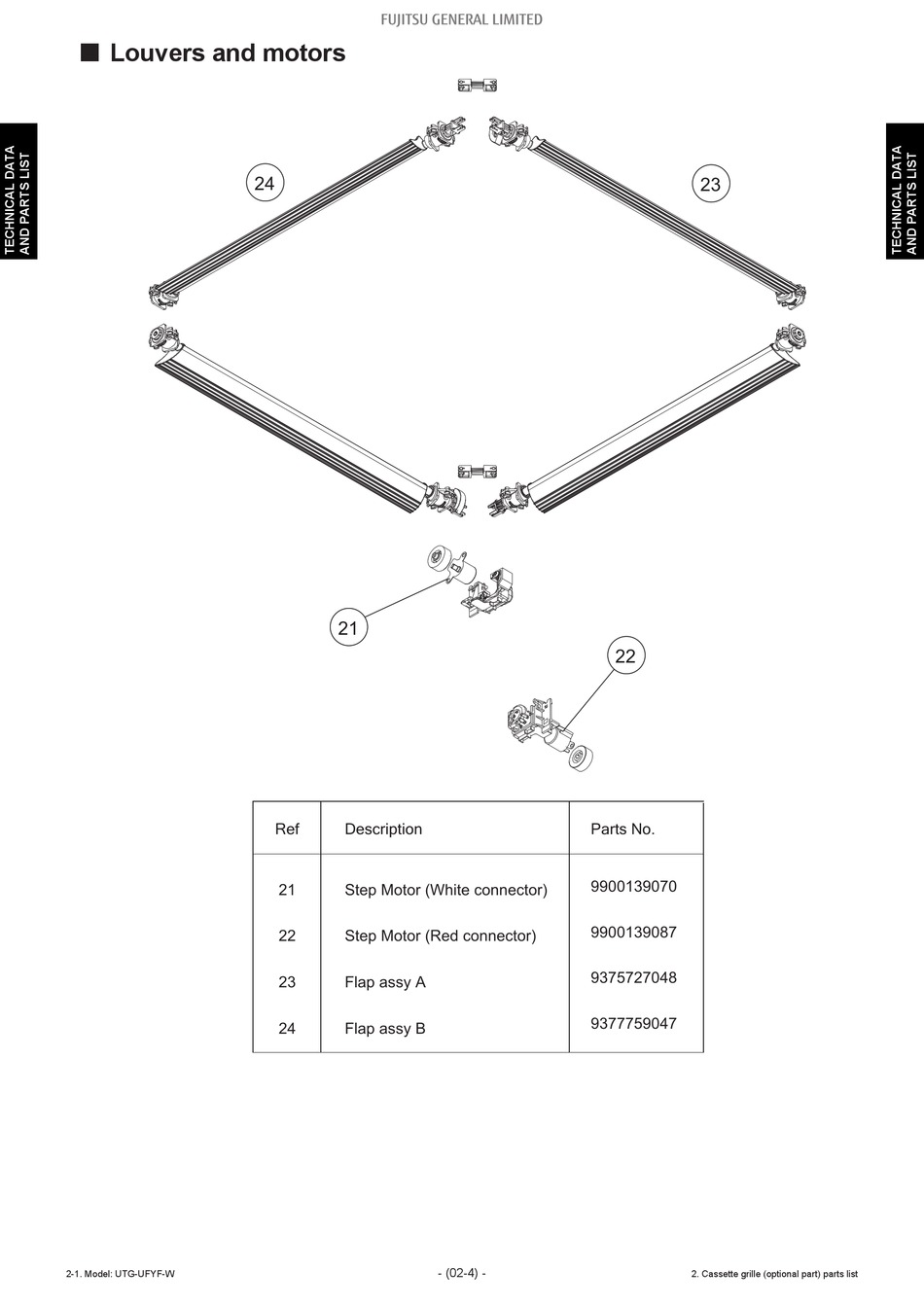

¢ Louvers and motors
2-1. Model: UTG-UFYF-W
24
21
Ref
Description
21
Step Motor (White connector)
22
Step Motor (Red connector)
23
Flap assy A
24
Flap assy B
Parts No.
9900139070
9900139087
9375727048
9377759047
- (02-4) -
23
22
2. Cassette grille (optional part) parts list
