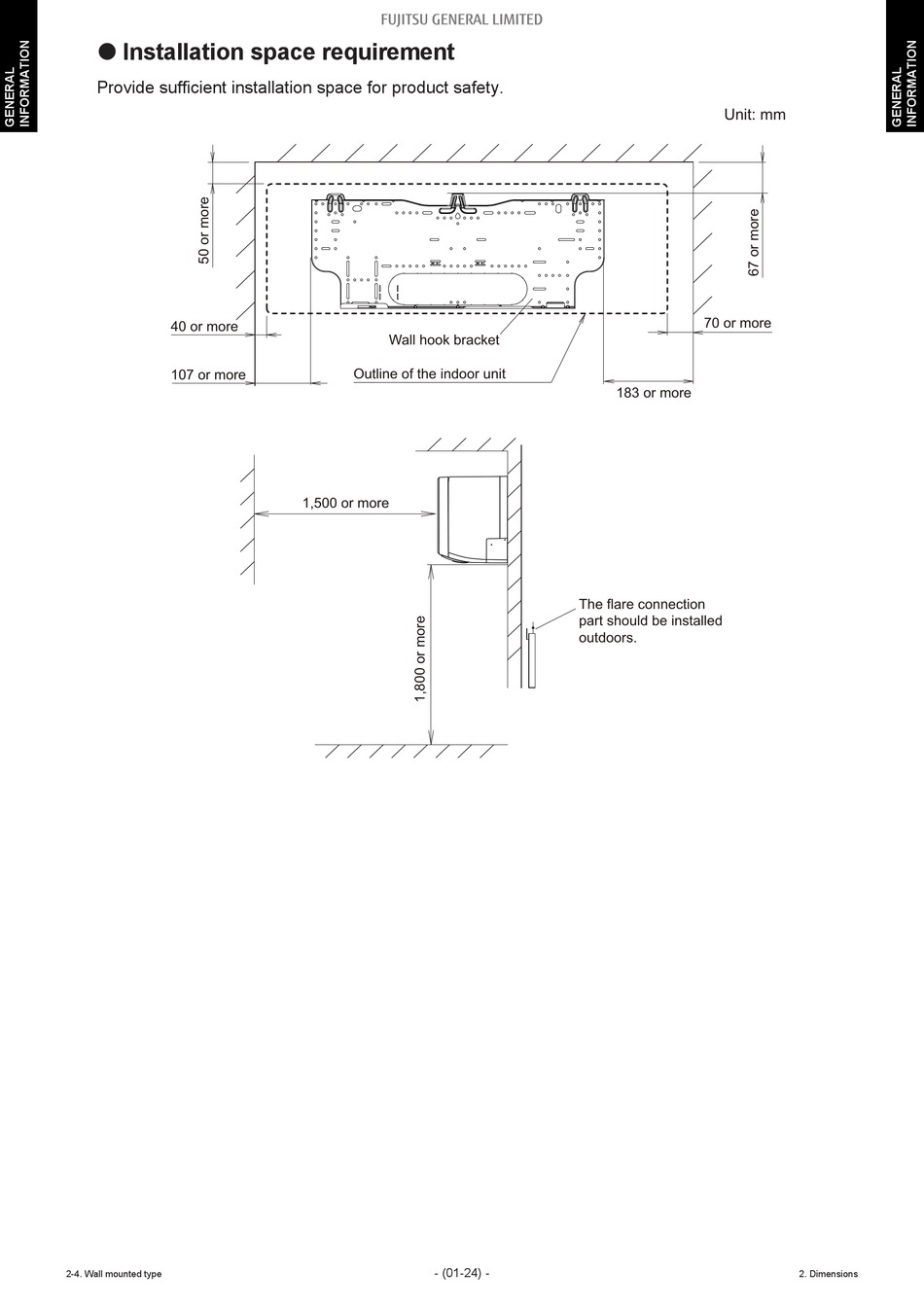

 Installation space requirement
Provide sufficient installation space for product safety.
40 or more
107 or more
2-4. Wall mounted type
Wall hook bracket
Outline of the indoor unit
1,500 or more
- (01-24) -
Unit: mm
70 or more
183 or more
The flare connection
part should be installed
outdoors.
2. Dimensions
