Fujitsu AUXG07KVLA Service Manual page 35

3-unit multi-split type
Hide thumbs

Advertisement

Table of Contents

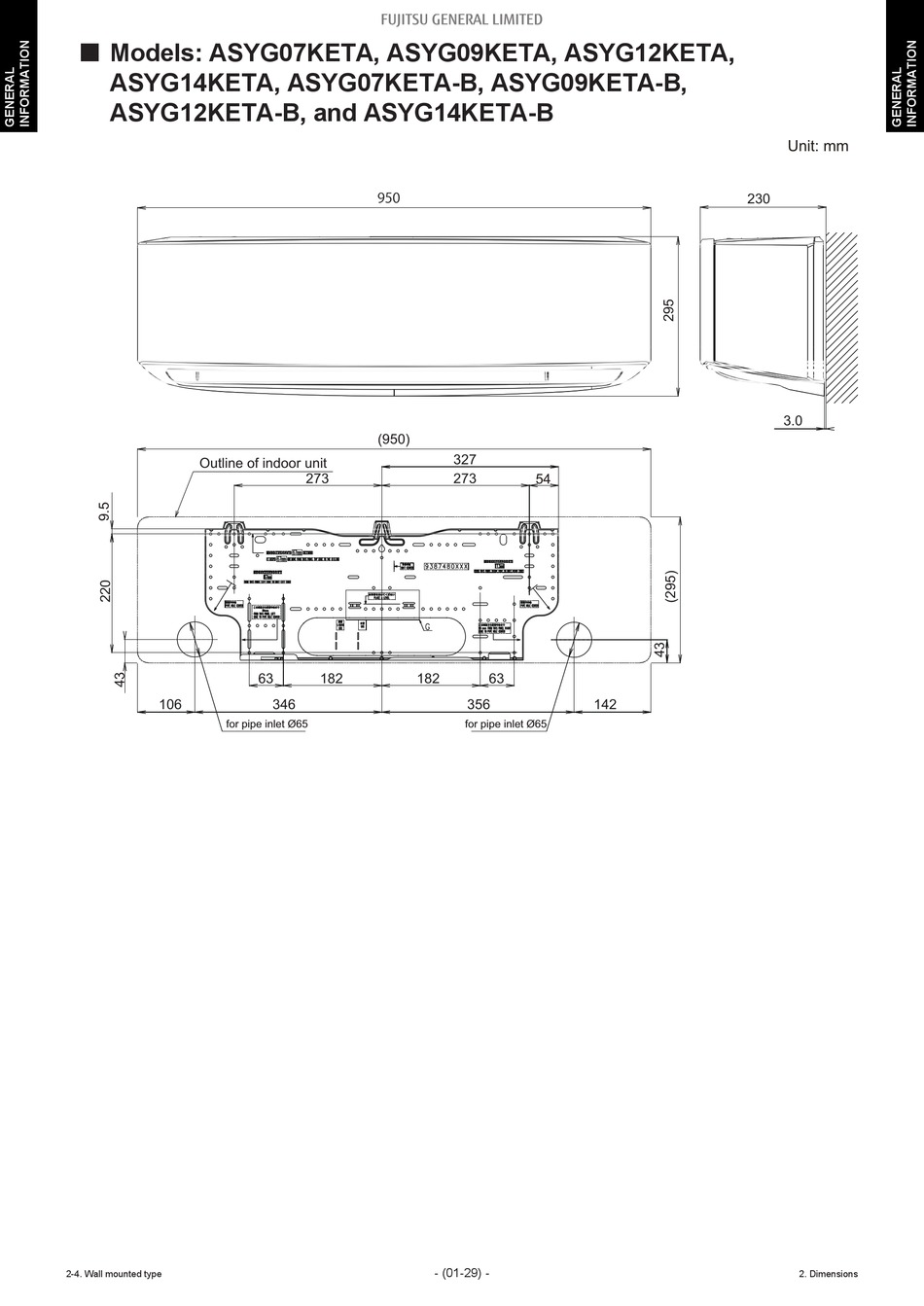

¢ Models: ASYG07KETA, ASYG09KETA, ASYG12KETA,
ASYG14KETA, ASYG07KETA-B, ASYG09KETA-B,
ASYG12KETA-B, and ASYG14KETA-B
Outline of indoor unit
106
for pipe inlet Ø65
2-4. Wall mounted type
950
(950)
273
63
182
182
346
327
273
54
63
356
142
for pipe inlet Ø65
- (01-29) -
Unit: mm
230
3.0
2. Dimensions
