Table of Contents

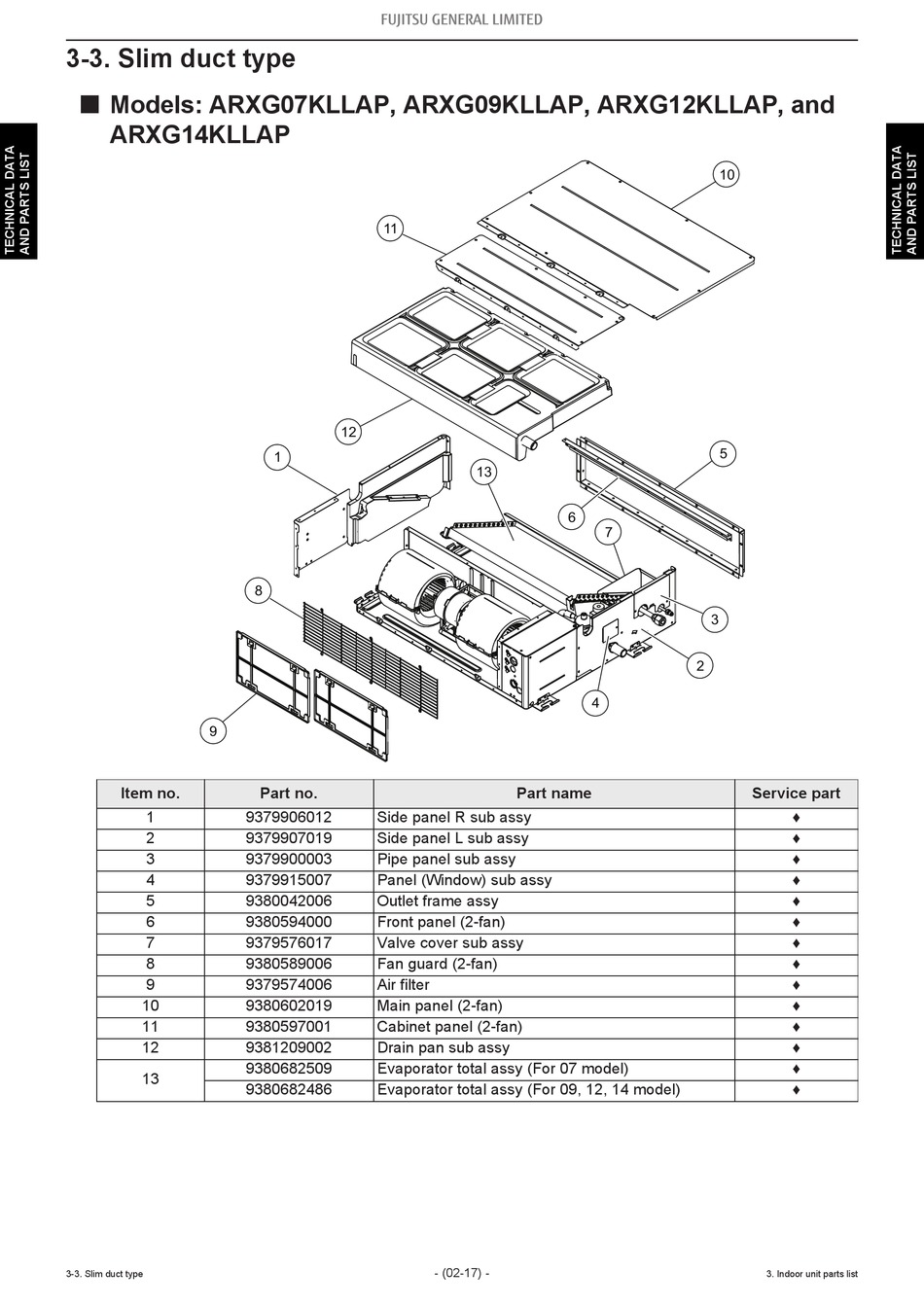

3-3. Slim duct type

¢ Models: ARXG07KLLAP, ARXG09KLLAP, ARXG12KLLAP, and
ARXG14KLLAP
9
Item no.
1
2
3
4
5
6
7
8
9
10
11
12
13
3-3. Slim duct type
11
12
1
8
Part no.
9379906012
Side panel R sub assy
9379907019
Side panel L sub assy
9379900003
Pipe panel sub assy
9379915007
Panel (Window) sub assy
9380042006
Outlet frame assy
9380594000
Front panel (2-fan)
9379576017
Valve cover sub assy
9380589006
Fan guard (2-fan)
9379574006
Air filter
9380602019
Main panel (2-fan)
9380597001
Cabinet panel (2-fan)
9381209002
Drain pan sub assy
9380682509
Evaporator total assy (For 07 model)
9380682486
Evaporator total assy (For 09, 12, 14 model)
13
6
7
4
Part name
- (02-17) -
10
5
3
2
Service part
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
3. Indoor unit parts list
