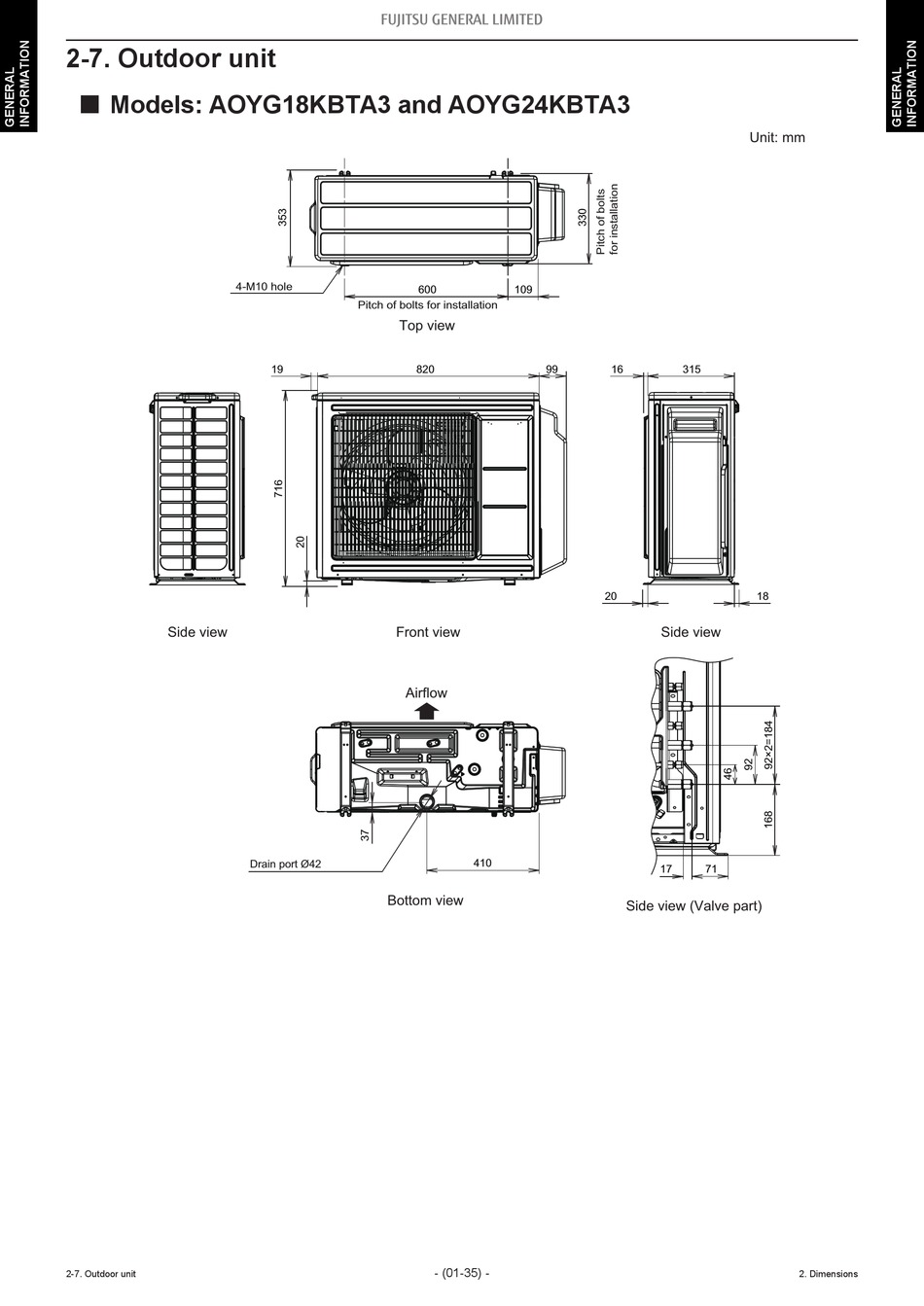

2-7. Outdoor unit
¢ Models: AOYG18KBTA3 and AOYG24KBTA3
Unit: mm
4-M10 hole
600
109
Pitch of bolts for installation
Top view
19
820
99
16
315
20
18
Side view
Front view
Side view
Airflow
410
Drain port Ø42
17
71
Bottom view
Side view (Valve part)
- (01-35) -
2-7. Outdoor unit
2. Dimensions
