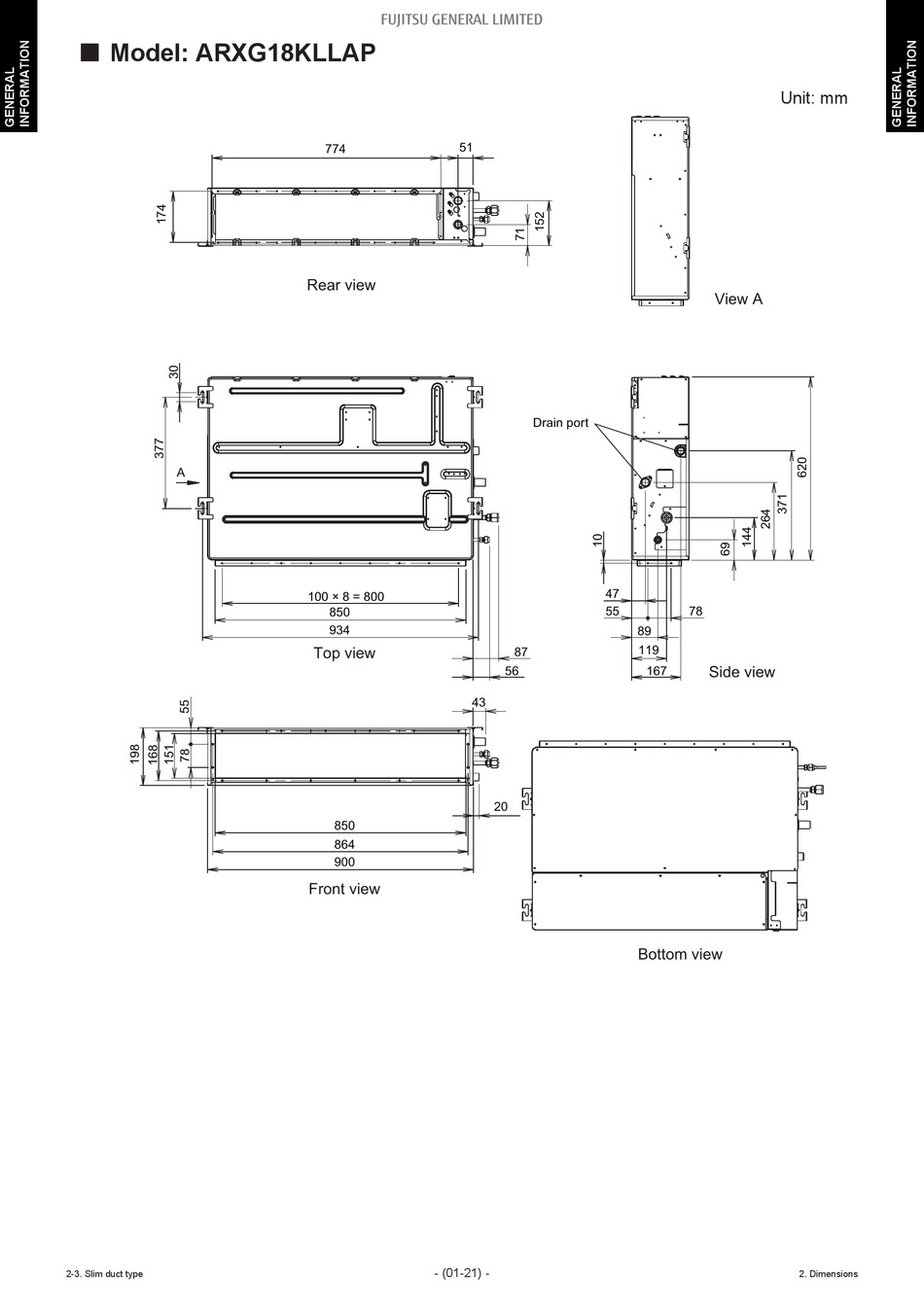

¢ Model: ARXG18KLLAP
A
2-3. Slim duct type
51
774
Rear view
100 × 8 = 800
850
934
Top view
43
850
864
900
Front view
- (01-21) -
Drain port
47
55
89
119
87
56
167
20
Bottom view
Unit: mm
View A
78
Side view
2. Dimensions
