Fujitsu AUXG07KVLA Service Manual page 47

3-unit multi-split type
Hide thumbs Also See for AUXG07KVLA:
Table of Contents

Advertisement

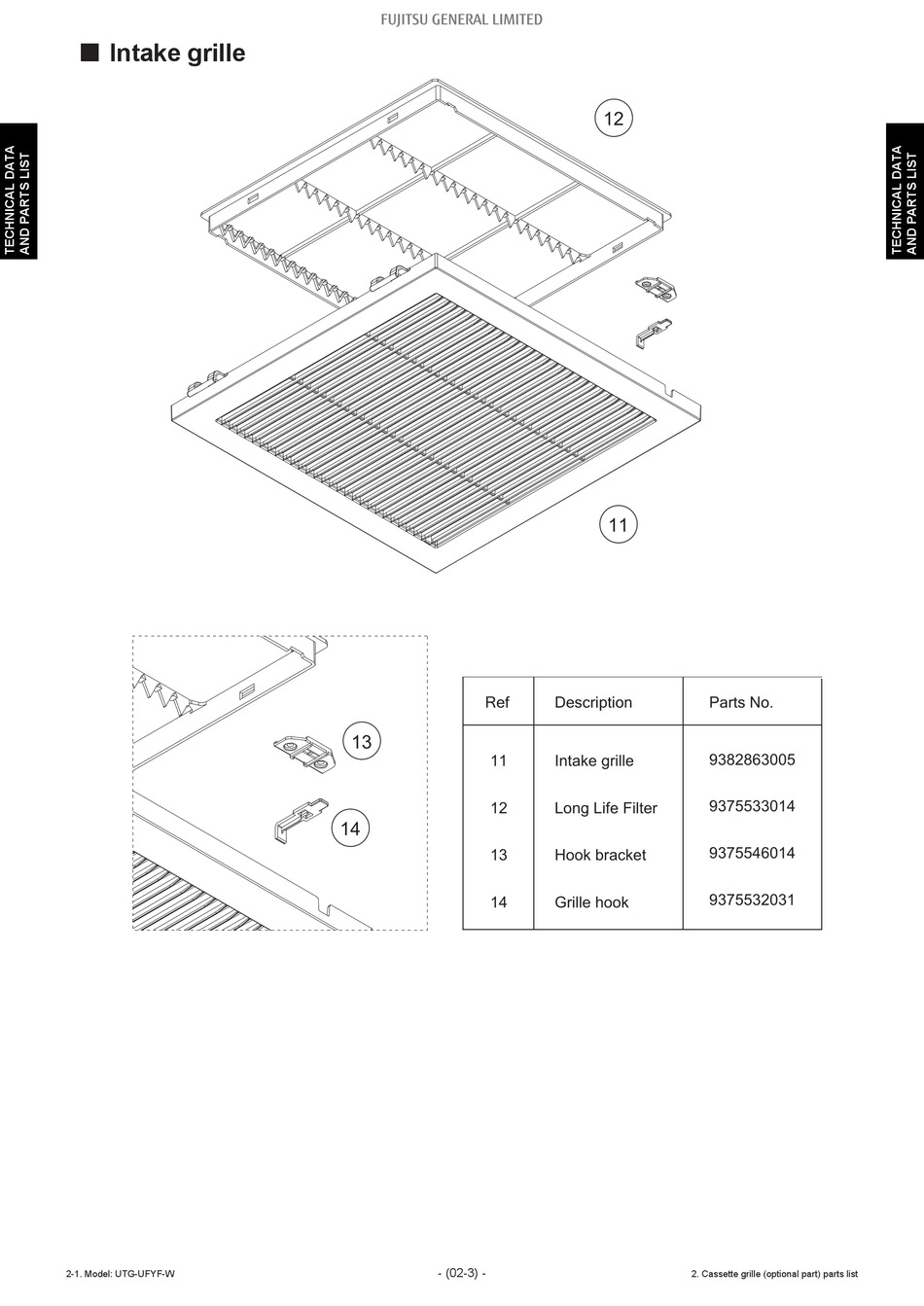

¢ Intake grille
2-1. Model: UTG-UFYF-W
Ref
13
11
12
14
13
14
- (02-3) -
12
11
Description
Parts No.
9382863005
Intake grille
9375533014
Long Life Filter
9375546014
Hook bracket
9375532031
Grille hook
2. Cassette grille (optional part) parts list
