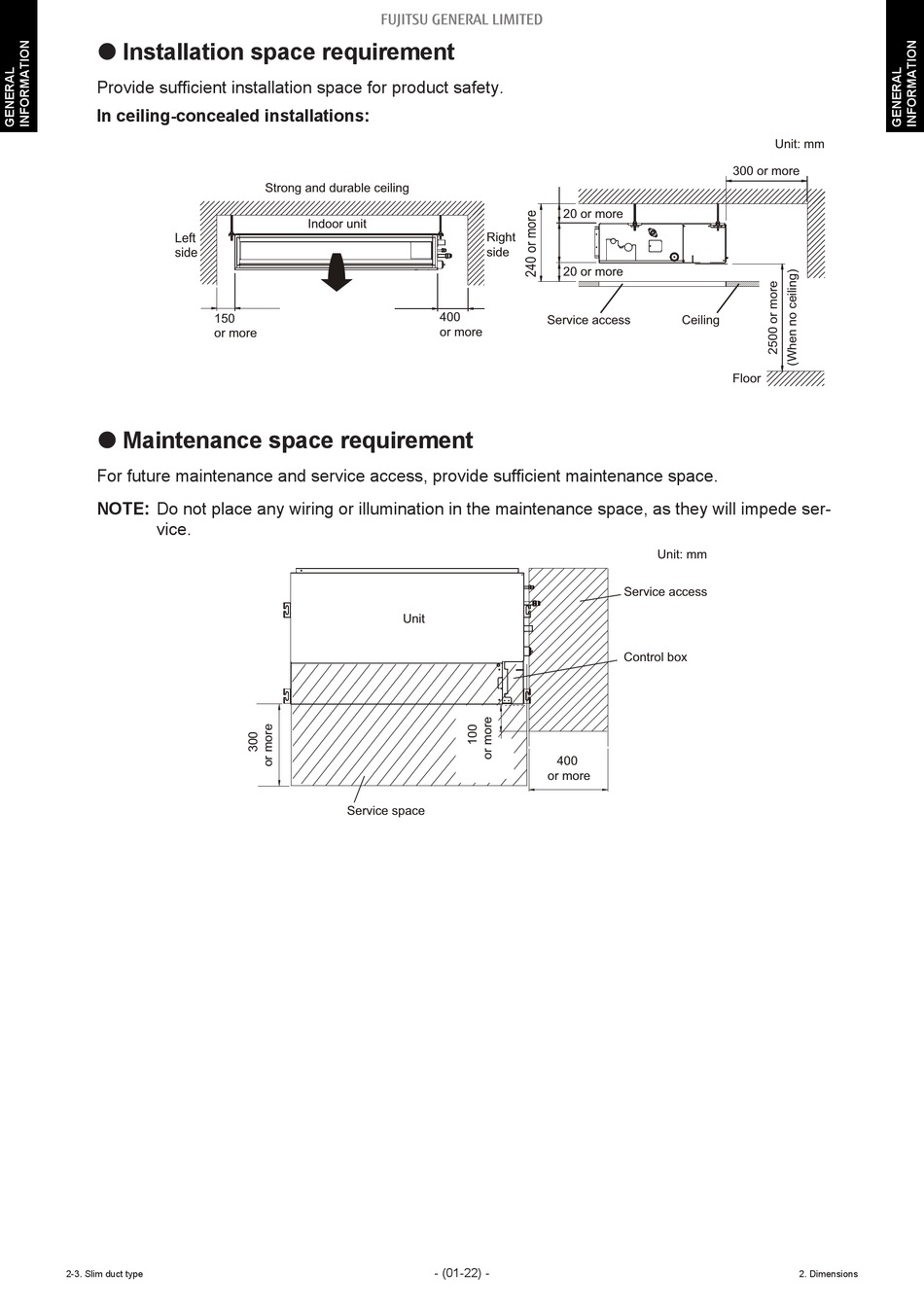

 Installation space requirement
Provide sufficient installation space for product safety.
In ceiling-concealed installations:
Left
side
150
or more
 Maintenance space requirement
For future maintenance and service access, provide sufficient maintenance space.
NOTE: Do not place any wiring or illumination in the maintenance space, as they will impede ser-
vice.
2-3. Slim duct type
Strong and durable ceiling
Indoor unit
Unit
Service space
- (01-22) -
20 or more
Right
side
20 or more
400
Service access
or more
400
or more
Unit: mm
300 or more
Ceiling
Floor
Unit: mm
Service access
Control box
2. Dimensions
