Setting Debug Interface Voltage Levels - iSystem IC57163 User Manual

Although it looks similar to the HDMI interface, the FNET Port is not compatible with
HDMI or any HDMI accessories.
Connecting iSYSTEM hardware to HDMI accessories will damage the hardware and will
render the iSYSTEM hardware warranty void.
•
The Active Probe can be connected to the target in two configurations.
AURIX™ microcontrollers that have only one DAP interface, through which the on-
chip debug module and the MCDS trace module can be accessed, should be
connected to the Active Probe's DAP connector and the target microcontroller's DAP
connector.
Newer AURIX™ devices can have up to two DAP ports; one named DAP, through
which on-chip debug module and the MCDS trace module can be accessed, and a
second, named DAPE, which provides access only to the on-chip MCDS trace module.
The DAPE port has been introduced to increase the bandwidth of the trace channel
toward the debugger. In such cases, the supplied 10-cm ribbon cables should be
connected to the appropriately marked interface on the Active Probe.

Setting Debug Interface Voltage Levels

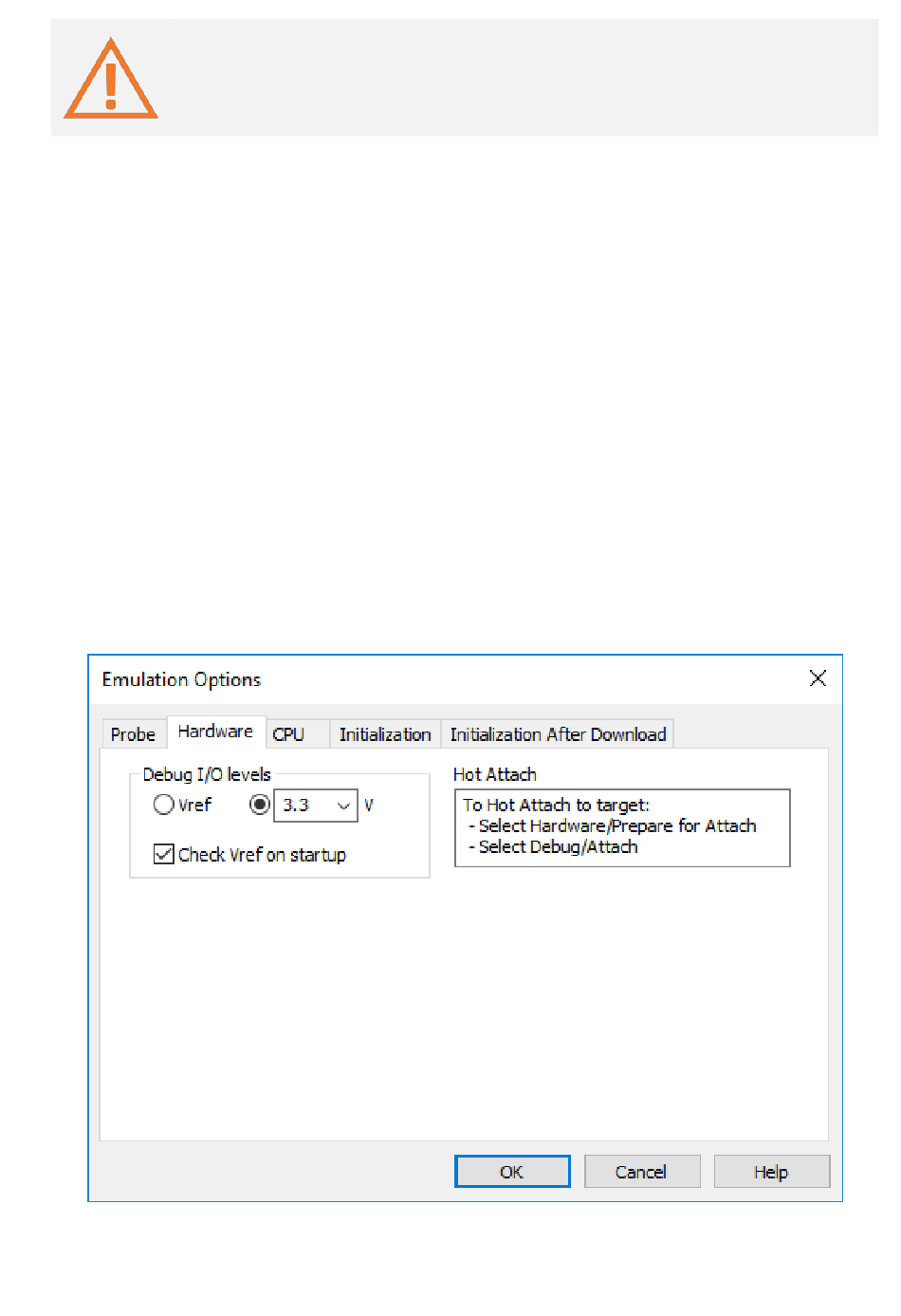

The voltage levels for the debug interface are configured within winIDEA via the menu option
"Hardware -> Emulation Options", selecting the "Hardware" tab in the "Emulations Options"
dialog window, as shown below.
