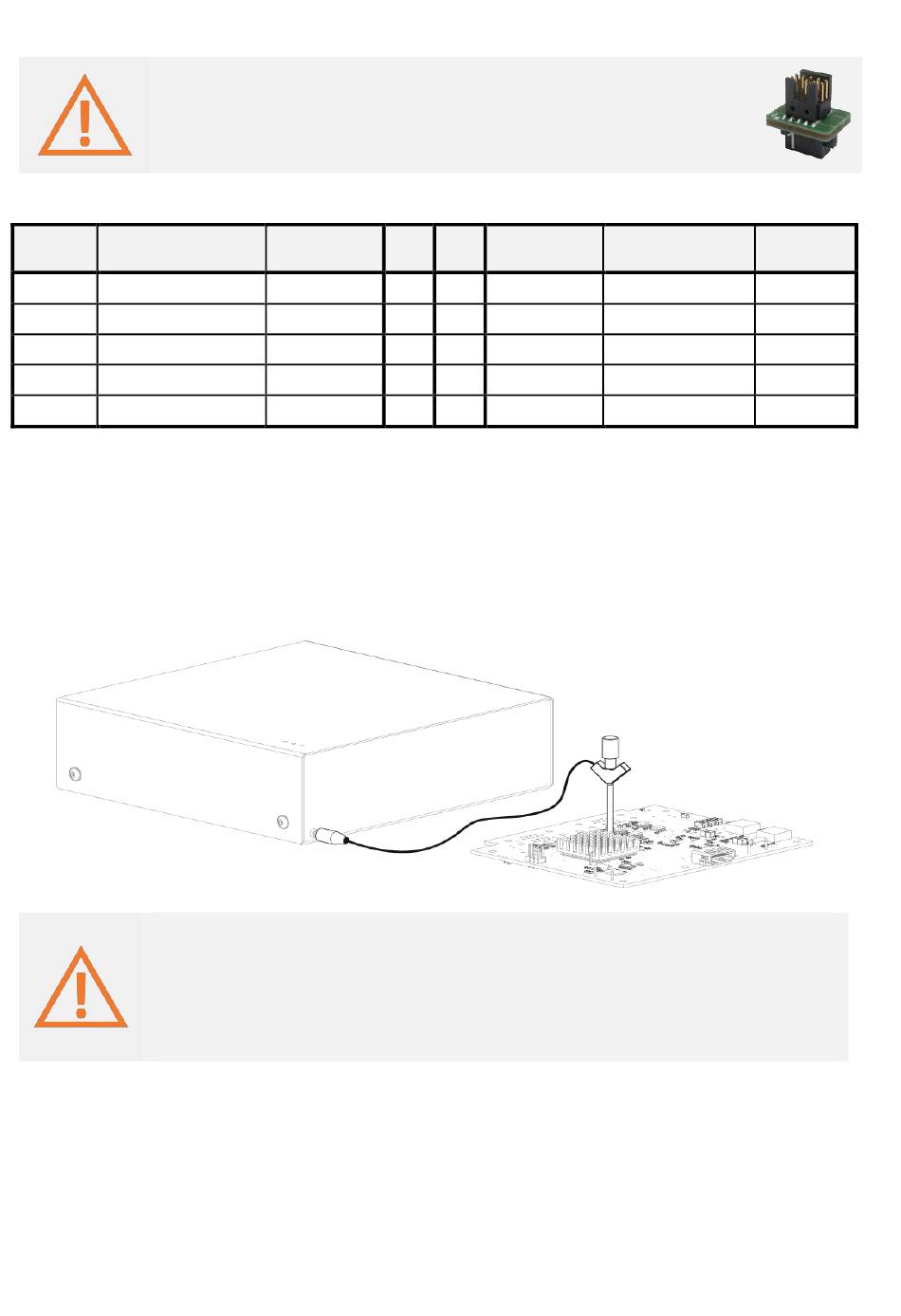

ECU14 DAP 10-pin 1.27mm Adapter

If your target features ECU14 DAP 10-pin 1.27mm connector (defined by
Bosch) instead of 10-pin 1.27 mm Infineon DAP connector, use iSYSTEM
ECU14 DAP 10-pin 1.27mm Adapter, which acts as a pinout converter.
The adapter must be ordered separately under the IADAP10ECU14
ordering code.
Adapter pinout on the target side:
Signal Signal description
direction
Ground
Not Connected
I/O Bidirectional data
Not Connected
Not Connected

Active Probe and the iC5700 Connecting Guidelines

•
Always start by connecting the iC5700 GND and the target GND using the grounding
wire delivered with the iC5700.
If the grounding wire is not connected, the ground potential difference
between the BlueBox hardware and the target can exceed well over 1000V
even before any of the devices are powered up. This voltage difference is
discharged over the BlueBox hardware and the target system, leading to the
possible destruction of electronic components within the BlueBox hardware,
the target or both.
•
Connect the iC5700 Power Supply to the mains outlet and the iC5700.
•
Connect the iC5700 to the PC via the supplied Ethernet or USB 3.0 cable.
•
Connect the Active Probe to the iC5700 FNET Port through the supplied FNET Micro
Cable.
If a cable longer than 1.0m is required (for example when debugging an ECU in a
vehicle or a confined space), optional 3.0m and 5.0m FNET Micro cables are available
from iSYSTEM.
Signal Pin Pin
GND 1 2
NC 3 4
DAP1 5 6
NC 7 8
NC 9 10
7
Signal Signal description
DAP0 DAP clock
DAP2 Bidirectional data
DAP3/DAPEN Bidirectional data
Vref Reference voltage
~RESET Power On Reset
Signal
direction
O
I/O
I/O
I
O
