Setting Debug Interface Voltage Levels

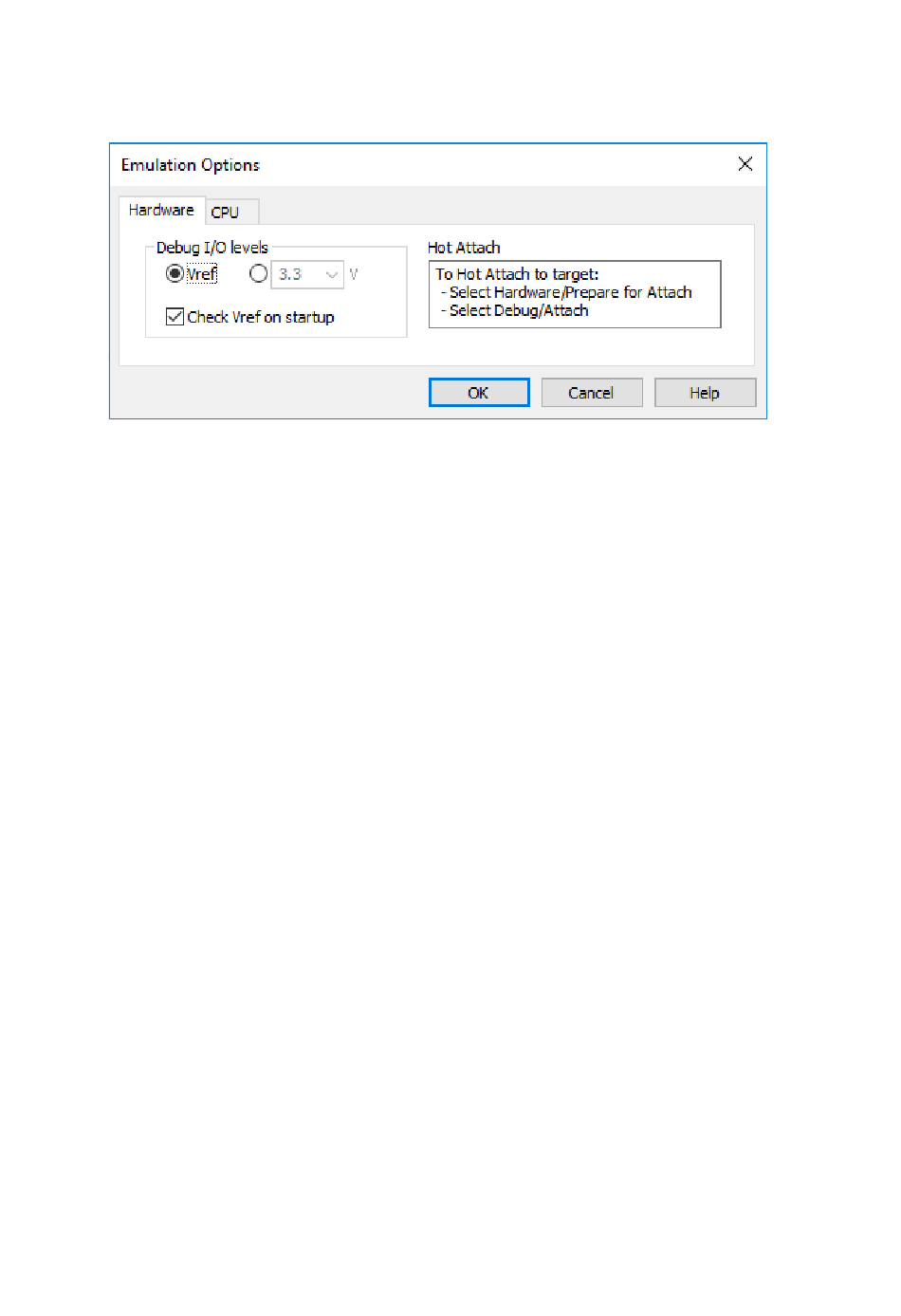

The voltage levels for the debug interface are configured within winIDEA via the menu option
Hardware menu/Emulation Options/Hardware as shown below.

Further Active Probe Settings

This section describes winIDEA settings distinct to the MPC5x/SPC5x Active Probe.
Alternatively, the iC5700 is capable of connecting to MPC5xxx and SPC5 target devices through
its installed DTM module and an appropriate cable adapter (IC50150 or IC50152).
In order to switch from the default DTM interface use to the Active Probe use, open Hardware
menu/Options/FNet tab:
1. In Currently connected FNodes click Refresh, select AP Aurora MPC (with Serial
number) when displayed.
2. Click Create configurations for connected FNodes, chosen AP Aurora MPC is displayed
in FNode configurations.
Once the hardware configuration is complete, the entry in the Currently connected
FNodes should be matched with the configuration you have created. This is indicated by: (i)
FNode configuration displaying the name of the Matched FNode, (ii) Currently connected
FNode displaying Matched Config status Y, (iii) Populated list of Currently available networks
(see blue squares on the next picture). Click OK to confirm the changes.
Click OK to confirm the changes.
