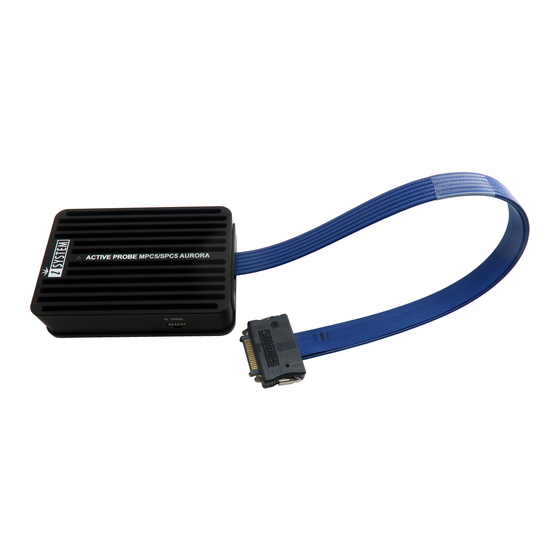

- Page 1 MPC5x/SPC5x Aurora Active Probe V1.5 User Manual...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents MPC5x/SPC5x Aurora Active Probe Important safety notice ......................... 6 Package content ............................7 Specifications ............................8 Operation ..............................9 14-pin 2.54mm JTAG Converter ..................................... 11 Active Probe and the iC5700 connecting guidelines ..............12 Setting Debug Interface Voltage Levels ................................. 13 Further Active Probe Settings ...................... -
Page 4: Mpc5X/Spc5X Aurora Active Probe
Scripts can also be executed directly from within winIDEA, thereby allowing the developer to extend its functionality. More information isystem.com/sdk. iSYSTEM's solutions run under the Microsoft® Windows® operating system or optionally within the Eclipse environment through a plug-in. All our software can be downloaded from the... - Page 5 Downloads page at http://www.isystem.com.
-
Page 6: Important Safety Notice
Use included power cord and power supply - The enclosed power supply has been approved for use by iSYSTEM. Please contact iSYSTEM if you need to consider an alternative power. Use grounding wire - Prior to applying power to either the BlueBox or the target, connect the device and the target system together with the included grounding wire. -
Page 7: Package Content
Package content The MPC5x/SPC5x Aurora Active Probe is delivered with the following components: Infineon MPC5x/SPC5x 1m FNet Cable User Manual Active Probe Ordering code: Ordering code: IC57150 BB-FNET-100... -
Page 8: Specifications
5% to 80% RH MECHANICAL Size 80 x 55 x 18 mm Weight 0.125 kg OPERATION Communication iSYSTEM proprietary FNet interface to BlueBox Debug signal valid input 3.3V (max. 3.6V) voltage range Power consumption Max. 1.5W (dependent on operation mode) Number of supported... -
Page 9: Operation
Operation Device overview Device description A – 34-pin ERF8 MPC5xxx/SPC5 target pinout: Signal Signal Signal Signal Signal Signal Direction Description Description Direction Reference AGBT TX0_P TX0+ Vref Voltage AGBT TX0_N TX0- JTAG Ground JTAG AGBT TX1_P* TX1+ JTAG AGBT TX1_N* TX1- JTAG JTAG TRST... - Page 10 When powering down the system, power off the target before powering off the iC5700! FBridge port is not Ethernet port! Use only original iSYSTEM accessories for powering and connecting with the iC5700. Consult with iSYSTEM before attempting to use any other accessory. Target connector...
-
Page 11: 14-Pin 2.54Mm Jtag Converter
Ordering code IASAM34MPCPIN14 If your target features 14-pin 2.54mm pitch JTAG target debug connector, use iSYSTEM 14-pin 2.54 mm JTAG Adapter which acts as a pinout converter. The adapter must be ordered separately. The adapter can be used only in conjunction with the iC6000 DTM Aurora/JTAG module (IC60022-1). -
Page 12: Active Probe And The Ic5700 Connecting Guidelines
If a cable longer than 1.0m is required (for example when debugging an ECU in a vehicle or a confined space), optional 3.0m and 5.0m FNet Micro cables are available from iSYSTEM. Although it looks similar to the HDMI interface, the FNet Port is not compatible with HDMI or any HDMI accessories. -
Page 13: Setting Debug Interface Voltage Levels
Setting Debug Interface Voltage Levels The voltage levels for the debug interface are configured within winIDEA via Hardware menu / CPU Options / Hardware. When the microcontroller target supplies 5.0V to the Vref signal (pin 1), use the radio-button selection to select the Vref option instead. -
Page 14: Further Active Probe Settings
Further Active Probe Settings This section describes winIDEA settings distinct to the MPC5x/SPC5x Active Probe. Alternatively, the iC5700 is capable of connecting to MPC5xxx and SPC5 target devices through its installed DTM module and an appropriate debug adapter 14-pin 2.54mm MPC5xxx Debug Adapter (Ordering code IC50150) or ·... -
Page 15: Lane Link Speed
Lane link speed By default the lowest Aurora link speed is set which ensures the most likely working trace operation. Note that this setting directly impacts on Aurora trace interface bandwidth. The higher the speed, more trace information per time unit can be broadcasted over the interface. Hence, once the Analyzer trace operation (e.g. -
Page 16: Accessories
3.0m FNet Cable BB-FNET-500 5.0m FNet Cable IASAM34MPCPIN14 14-pin 2.54 mm JTAG Adapter Please refer to the iC5700 BlueBox for all current iC5700 Accessories. Find more information on www.isystem.com or contact sales@isystem.com. To reach for technical support please visit www.isystem.com/support. - Page 17 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
