Altronix EFLOW eFlow104NK8 Installation Manual page 7

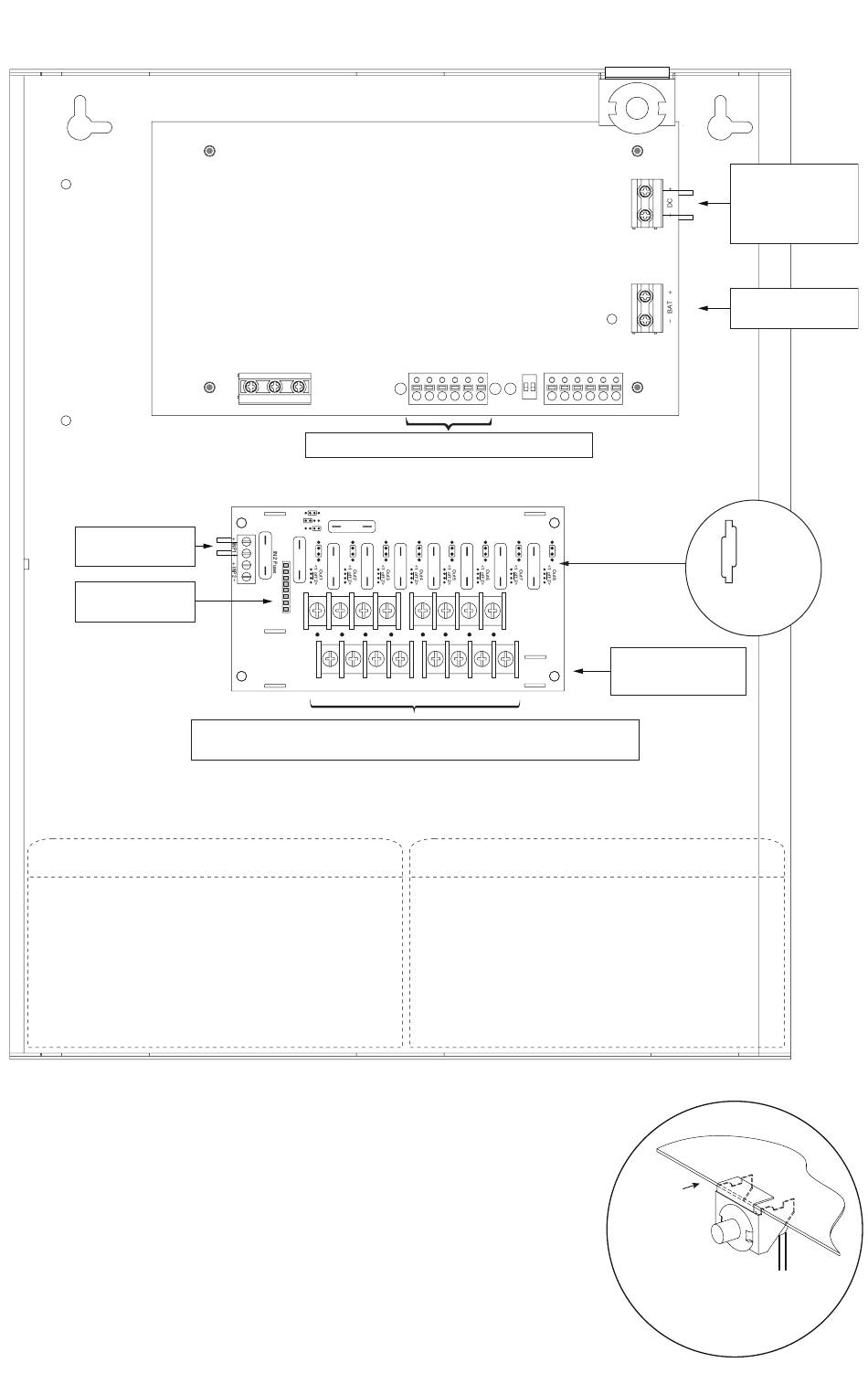

Fig. 3 - eFlow104NK8(D)
24VDC from
eFlow104NB
12VDC from VR6
(factory connected)
Optional Rechargeable Stand-by Battery
for UL294 Applications
Note: 12V batteries required for
ULC-S319 installations.
CAUTION: Use two (2) 12VDC stand-by batteries.
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest batteries that
can fit in this enclosure.
A UL listed external battery enclosure must be used if using
40AH or 65AH batteries.
eFlow104NK8(D)
eFlow104NB
Power Supply
L G N
Supervisory connections (power-limited)
OFF
PWR1 + IN1 Fuse
IN1
10
IN2
10
3
3 3
P
OUT1 OUT2 OUT3
COM (--- )
N
PWR2 +
1 2
Common Power Outputs (NEG)
DC Output to devices
(eFlow104NK8 - non power-limited, eFlow104NK8D - power-limited)
AC FAIL NC C NO NC C NO BAT FAIL
PDS8(CB)
PWR1 +
3 3 3 3 3
OUT4 OUT5 OUT6 OUT7 OUT8
COM (--- )
PWR2 +
3 4 5 6 7 8
Optional Rechargeable Stand-by Battery
for UL294 Applications
Note: 12V batteries required for
ULC-S319 installations.
Tamper Switch
eFlow104NK8D
Spade Lugs to connect
to the compatible board
Fig. 3a
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
Power Output
Factory wired to
PDS8(CB) and VR6
(non power-limited)
Battery Output
(non power-limited)
PTC
Protected
Outputs on
- 7 -
