Section 2 General Information

Equipment Description

The Generac Power
(Assembly No. 10000039844) is a user interface for the
Power Zone system. The Connectivity Server can be
used in applications other than generator control.

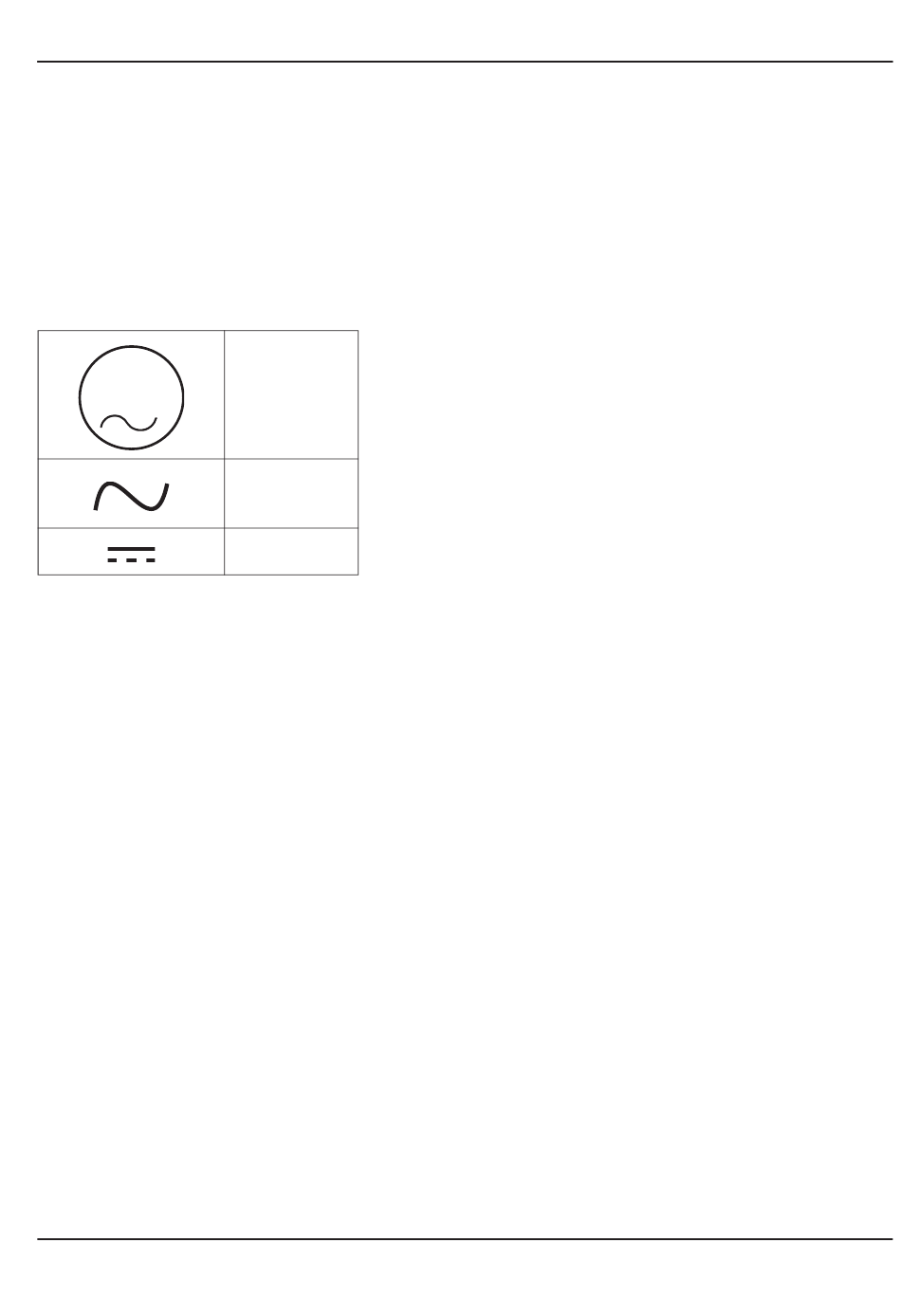

Symbol Definition

G

Standard Features

®
Wi-Fi /Bluetooth™
•
AUTO/OFF/MANUAL Indication
•
Not in AUTO Indication
•
Alarm Acknowledge Button
•
Multi-Lingual
•
On Screen Editable Parameters
•
Key Function Monitoring
•
– Three Phase Voltage, Amperage, kW, kVA,
and kVAR
– Selectable Line to Line or Line to Neutral Voltage
Measurements
– Voltage Frequency
– Engine Speed
– Engine Coolant Temperature
– Engine Oil Pressure
– Engine Oil Temperature
– Battery Voltage
– Warning and Alarm Indication
– Diagnostics
– Maintenance Events/Information
– Engine Hourmeter
Owner's Manual for Power Zone Connectivity Server
Zone Connectivity Server
AC Generator
AC Voltage
DC Voltage
Communications Ports
•
– Ethernet – 1 Port
– RS-485 – 1 Port for Generator Main Controller
– USB – 1 Type A (Host)

Codes and Standards

UL 2200
•
UL6200
•
CSA STD C22.2 No. 14
•
C-ETL-US
•
IEC 61010-1
•
FCC
•
NFPA 110 (Software Programmable Level for
•
1 or 2)
