Analog Pressure Loss Delay: The amount of time
•
(in seconds) from the last good sensor value
before the pressure sensor value is considered
lost.

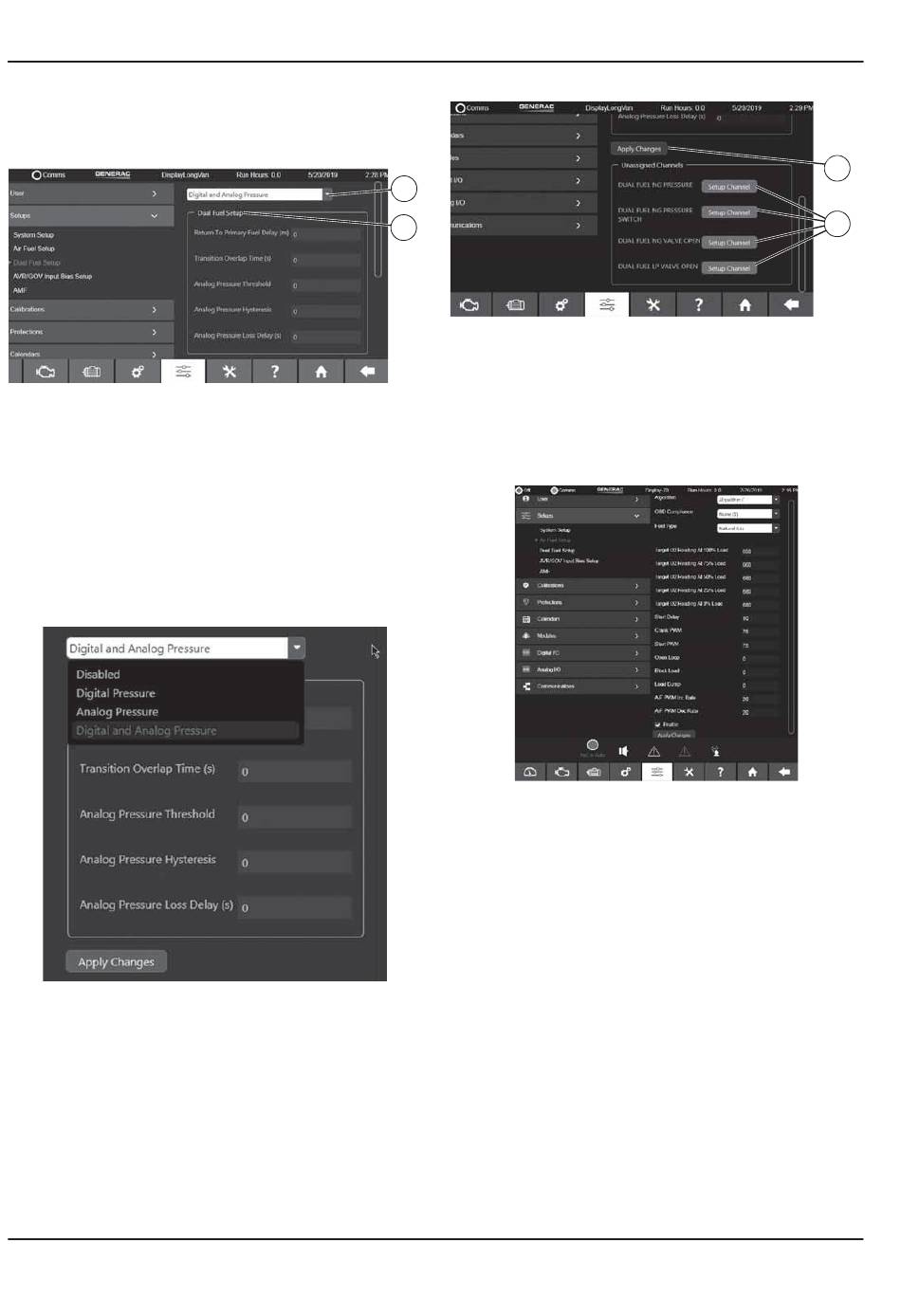

Figure 3-38. Dual Fuel Settings
See 3-39. Select the dropdown to choose which
Figure
sensor(s), if any, are attached to the generator. Select
"Disabled" if there are no sensors attached.
NOTE: The settings for Analog Pressure Threshold,
Analog Pressure Hysteresis, and Analog Pressure Loss
Delay(s) are only available when using an analog
pressure sensor and are in the units of that sensor value.
Figure 3-39. Sensors
See 3-40. As a precaution, the screen will
Figure
indicate when a needed sensor channel is not setup for
the configuration chosen. Select the "Setup Channel"
button (A) to navigate to the appropriate I/O configuration
screen. If all channels are set, this section will be empty.
If the "Apply Changes" button (B) is selected and there
are unassigned channels, the settings will be applied and
a warning message will indicate a potential problem has
been detected.
20
A
B
Air/Fuel Setup
009709
See
Figure
programmed at the factory to calibrate emissions and
should not be adjusted.
009710
Figure 3-40. Setup Channel
3-41. The Air/Fuel Setup screen is
Figure 3-41. Air/Fuel Setup
