Dealer Information
See 3-35. The Dealer Information screen is an
Figure
editable text field where dealer contact information is
stored.

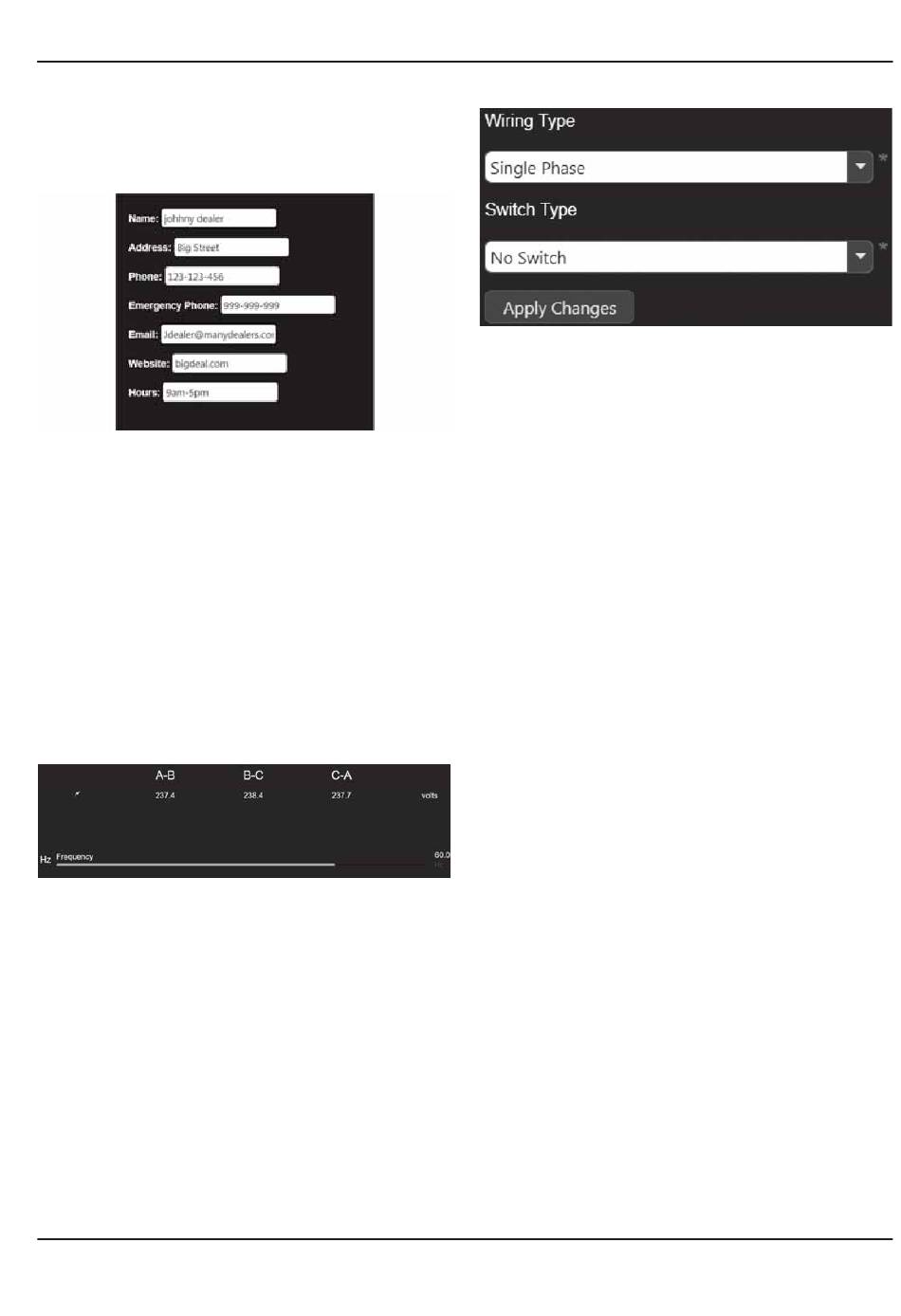

Figure 3-35. Dealer Information
System Notes
The System Notes screen is an editable text field where
system notes and information are stored. It is available
from the System Details screen. Click the "Add" button to
add notes, then and click the "Submit" button to save
them. The notes will appear below. The notes can be
edited or deleted by clicking the "Edit" or "Delete" icons
on the notes.
Utility
See 3-36. The Utility screen displays bargraphs
Figure
showing measured values for the utility.
Figure 3-36. Utility

Setup Menu

The Setup menu provides access to the submenus for
user, setups, calibrations,
modules, digital I/O, analog I/O and communications.
User (Units and Language)
The User screen allows selection of units of measure and
language. These items are covered in
System Setup
See 3-37. The System Setup screen is used to
Figure
enter global settings about the generator.
Owner's Manual for Power Zone Connectivity Server
007539
007540
protections, calendars,
Units of Measure.
Figure 3-37. System Setup
Wiring type indicates single or three-phase generator
wiring.
Switch type defines the type of generator output switch or
breaker used. The options are:
Contactor
•
Motorized Breaker
•
No Switch
•
Pramac Cont Switch
•
Dual Fuel Setup
See 3-38. Dual Fuel settings (if applicable) can be
Figure
set and adjusted using this screen. The drop down menu
(A) contains four options:
Disabled: Indicates the dual fuel setup is inactive.
•
Digital Pressure: Indicates the generator is using a
•
Digital Input Pressure Switch Sensor for primary
fuel pressure sensing.
Analog Pressure: Indicates the generator is using
•
an Analog Input Pressure Sensor for primary fuel
pressure sensing.
Digital and Analog Input Pressure: Indicates the
•
generator is using both Analog and Digital Input
sensors for primary fuel pressure sensing (bad
when either input is bad. Good when both inputs
are good).
Dual fuel setup parameters (B):
Return to Primary Fuel Delay (m): The period of
•
time (in minutes) the generator continues to use
the secondary fuel after detecting return of fuel
pressure on the primary fuel.
Transition Overlap Time: The period of time (in
•
seconds) both fuel solenoids are turned on while
transitioning between primary and secondary fuels.
Analog Pressure Threshold: The minimum sensor
•
value below which the primary fuel pressure is
considered insufficient to continue running the
generator.
Analog Pressure Hysteresis: The value by which
•
pressure has to increase above the threshold value
for it to be considered valid after a loss of pressure
was detected.
