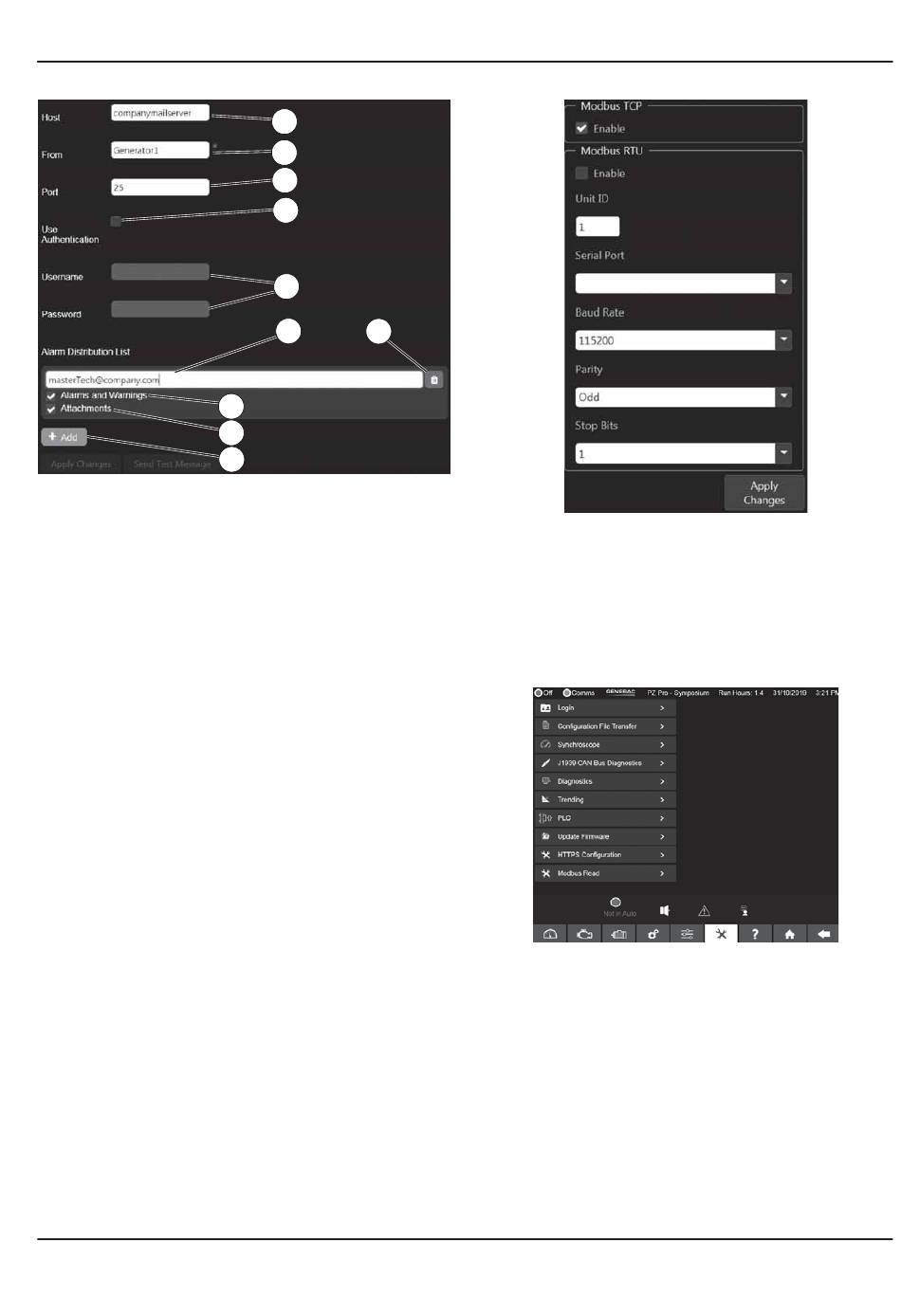

Figure 3-78. Email Screen
Configuring Modbus Pass-through
See
3-79. The Power Zone Connectivity Server
Figure
acts as a gateway for external systems to exchange data
with a Power Zone System using Modbus. The
Connectivity Server supports both Modbus TCP and
Modbus RTU over RS-485.
Check the Enable box under Modbus TCP to enable
Modbus TCP access.
Check the Enable box under Modus RTU to enable
Modbus RTU access and configure the RS-485 port to
match your external system's communication settings. To
configure the RS-485 port, set the slave ID of the
Connectivity Server, select the RS-485 port from the
Serial Port list and set the communication settings Baud
Rate, Stop Bits and Parity.
Owner's Manual for Power Zone Connectivity Server
A
B
C
D
E
F
G
H
I
J
007585
Figure 3-79. Configure Modbus Pass-through
Tools Menu
See
3-80. The Tools menu displays submenus for
Figure
login, configuration file transfer, synchroscope, J1939
CAN bus diagnostics, diagnostics, trending, PLC
manager, and update firmware.
Login Menu
See
3-81. The Login menu provides access to
Figure
secured
functionality
credentials.
To login:
Enter credentials into the input control labeled
1.
"Enter Credentials", or click the keyboard icon and
enter credentials.
Select "Log in".
2.
Installation and Operation
Figure 3-80. Tools Menu
through
a
user's
010392
007736
security
35
