Installation and Operation
The system will validate the credentials and, if
3.
successful, will allow access to the appropriate
level of secured functionality. If the credentials
were not valid a failure message will be shown.

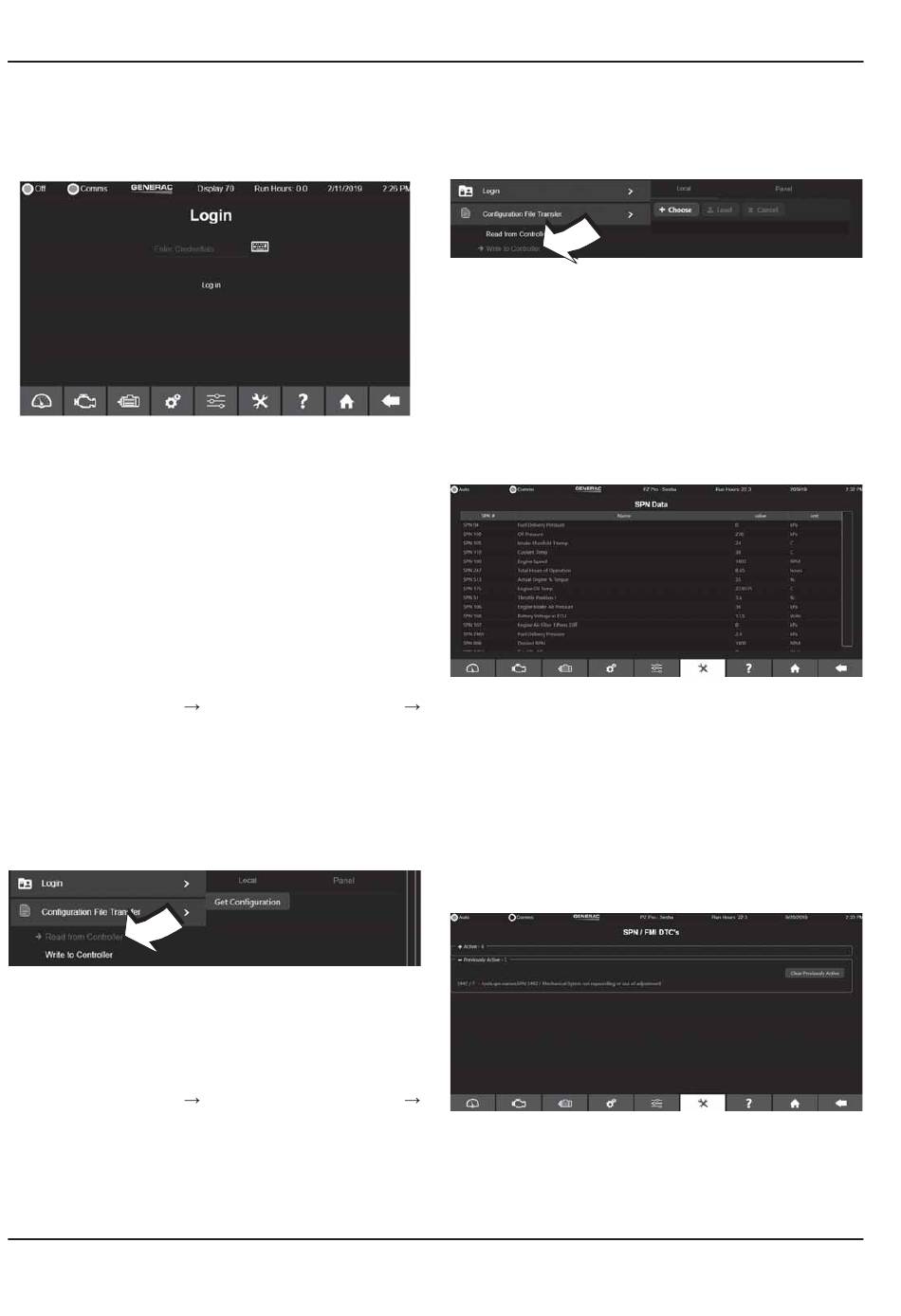

Figure 3-81. Login Menu
Configuration File Transfer Screen
Power Zone generator configuration settings can be
saved as XML files or read from an XML file and applied
to a generator via the Configuration File Transfer menu,
which can be found by selecting the Tools Menu icon.
Configuration File Transfer has two options. The "Read
from Controller" option
settings from a Power Zone Main Controller and writes
them to an XML file which can be saved to a mobile
device through a browser or saved to a USB drive
connected to the Connectivity Server:
Navigate to Tools
1.
Read From Controller.
Select "Get Configuration" to create an XML file.
2.
Select the "Local" tab to download to a mobile
3.
device through a browser. Select "Download".
Select the "Panel" Tab to save to a USB drive.
4.
Select "Save to USB Drive".
Figure 3-82. Read from Controller
The "Write to Controller" option
existing configuration XML file and applies those settings
to the Main Controller:
Navigate to Tools
1.
Write to Controller.
To use a file stored on your network connected
2.
device, select the "Local" tab and select "Choose".
Select the file and select "Load".
36
(Figure 3-82) reads the current
Configuration File Transfer
(Figure 3-83) takes an
Configuration File Transfer
To use a file stored on a USB device connected to
3.
the Connectivity Server, select the "Panel" tab and
select "List Configuration Files". Select the file and
select "Load".
J1939 CAN Bus Diagnostics
See 3-84. The SPN (Suspect Parameter Number)
Figure
Data screen displays all actively monitored SPN data.
The SPN # column shows the SPN code and Name
displays the text associated with that code. The value
009625
and unit columns display the value and the value's units,
respectively.
See
Figure
Parameter Number/Failure Mode Identifier Diagnostic
Trouble Code) screen displays the system's known SPN/
FMI DTC incidents. It is broken into two sections: Active
and Previously Active. Both sections display the numeric
SPN/FMI codes followed by the text associated with the
SPN and FMI.
009626
Owner's Manual for Power Zone Connectivity Server
Figure 3-83. Write to Controller
Figure 3-84. SPN Data Screen
3-85. The SPN/FMI
Figure 3-85. SPN/FMI Screen
009627
