Steam installation: Continued

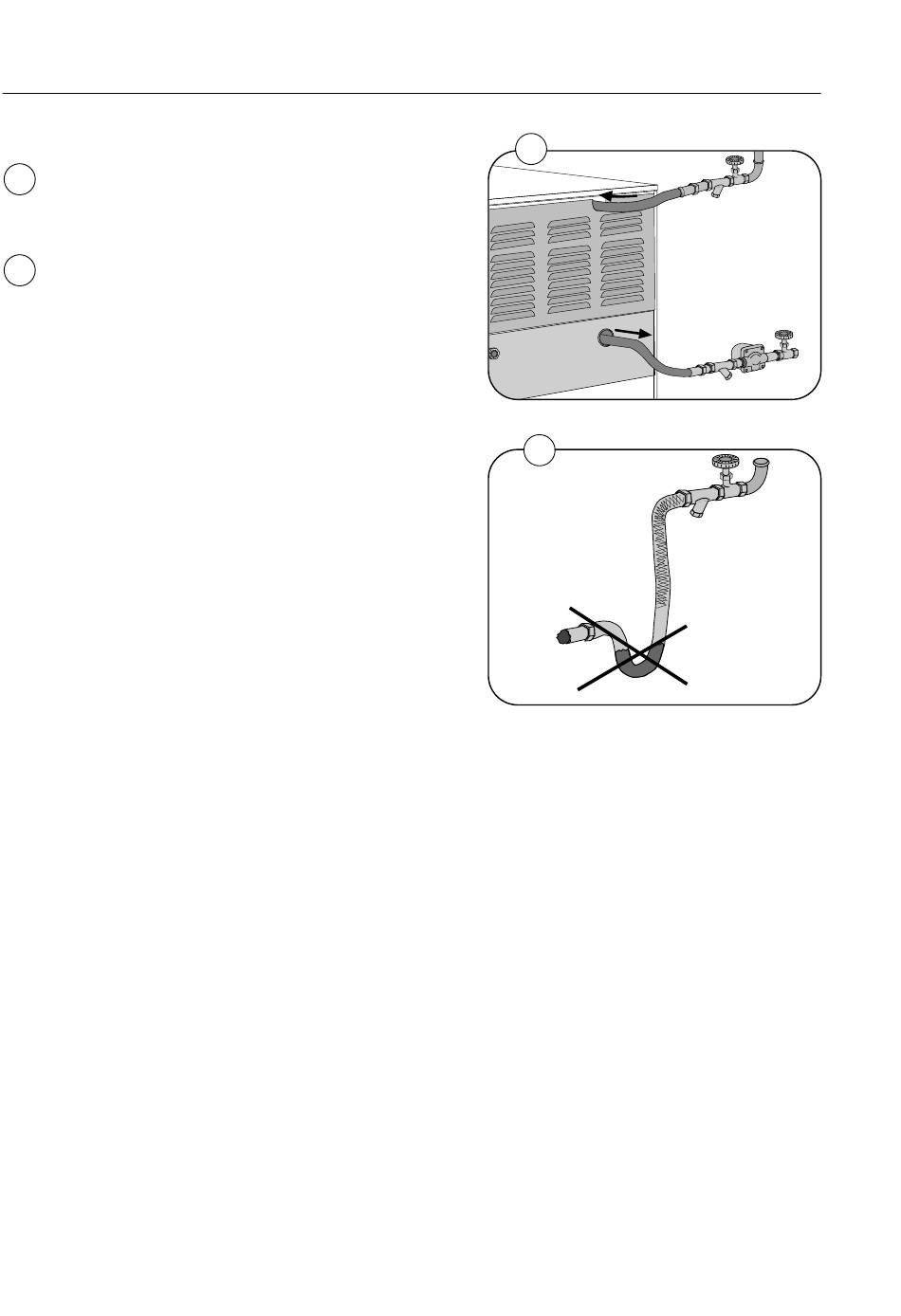

Since a steam hose (pressure hose) is used on
2
the last section before the steam calorifier con-
nection branch, it is important to ensure a contin-
uous slope all the way, see fig. 2.
The hose should not be allowed to sag, see fig.
3
3, since this would create local accumulations of
condensate, leading to a risk of water shock in
the steam battery.
Since hoses are used after the battery, a continu-
ous slope must also here be ensured all the way
to the water discharger.
All pipes should be insulated to reduce the risk of
burns, while also reducing the heat loss to the
surroundings.
Steam:
Water steam (Operating steam pressure)
1 - 10 bar absolute pressure
(100-180°C).
Installation - steam heating
2
3
487 18 39 01 - 300/500/750 - GB
